21038121505
| Manufacturer | |
| Description | CIR CONN M12 CRIMP MALE 5POL CONN HSG PLUG 5POS CABLE PIN Circular Metric Connectors CIRCULAR CON. M12 CRMP MALE ACODE 5POL Han M12 Crimp: Circular Con. M12 crimp male A-code 5pol Harting M12 系列 2103 5路 电缆安装 直向 连接器 插座 , 公触点, 螺纹接合 |
| Category |
Business
| Other Names | 1195-3270 | Part # Aliases | 021 021-03-812-1505 03 1505 812 |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 60 V | Current Rating (Max) | IP67 |
Mechanical
| Packaging | Bulk | Orientation | A |
| Shell Style | Plug | Contact Type | Crimp |
| Mounting Type | Free Hanging (In-Line) | Cable Diameter | 4.5 mm to 8.8 mm |
| Connector Type | Plug for Male Contacts | Fastening Type | Threaded |
| Mounting Style | Cable | Termination Rows | 压接 |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 5 | Number of Positions | 5 |
| Shell Size - Insert | M12-5 | ||
Product Info
| Note | Contacts Not Provided | Type | Sensor/Actuator Cable |
| Series | M12 | Features | Shielded, Strain Relief |
| Product Type | Connectors | Base Product Number | 2103 |
Environmental
| Seal Rating | IP 65, IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
Similar Parts
09670005576
Harting Technology Group
Contact PIN Crimp ST Cable Mount Individual CONTACT PIN 22-26AWG GOLD CRIMP Turned contact 22-26 AWG M D-Sub Contacts D SUB MA turned cont AWG 22-26 PL1 DSUBMAturnedconfacfAWG22-26PL1 Harting D-Sub Standard 系列 公 压接端接 圆形 连接器 触芯, 使用于D-sub 连接器, 26 → 22 AWG 线规格
09670008576
Harting Technology Group
Contact PIN Crimp ST Cable Mount Individual CONTACT PIN 20-24AWG GOLD CRIMP Turned contact 20-24 AWG M D-Sub Contacts D SUB MA turned cont AWG 20-24 PL1 DSUBMAturnedcontactAWG20-24PL1 Harting D-Sub Standard 系列 公 压接端接 圆形 连接器 触芯, 使用于D-sub 连接器, 24 → 20 AWG 线规格
21038122505
Harting
CIRCULAR CON. M12CRIMP FEMALE CONN HSG RCPT 5POS CABLE SKT Circular Metric Connectors CIRCULAR CON. M12 CRIMP FML A-CODE5POL Han M12 Crimp: Circular Con. M12crimp female A-Code5pol

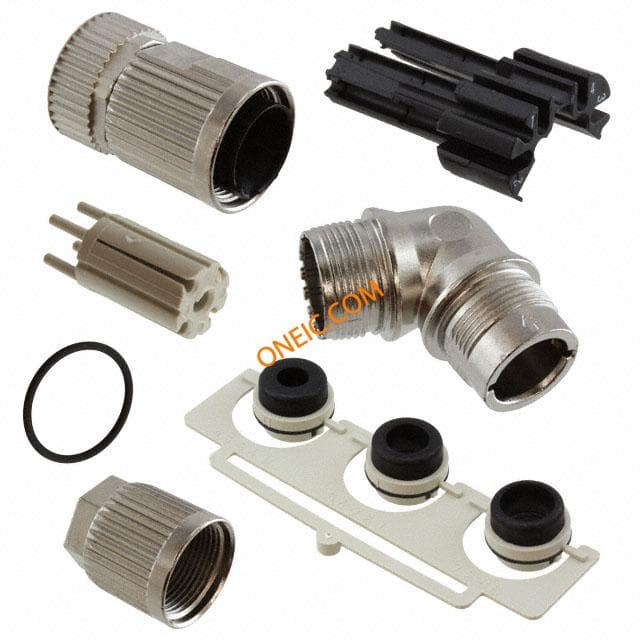

21038224505
