点击放大查看
21032211405
| Manufacturer | |
| Description | Circular Metric Connectors CIRCULAR CONNECTOR W. HARAX M12 L4 M CIRCULAR CONN W/HARAX M12 L4 M 4 Pole Straight Industrial & Automation Circular Connector with Male Contacts M12-Lshieldedmale4-poleA-coded circularConnectorw.HaraxM12L4M Connector: M12; HARAX; plug; male; PIN:4; shielded; threaded joint Harax Sensor Male Circular Connector, M12-L screened version, 4 poles, A-coded, 26 - 22 AWG Harting 4路 直向 连接器 , 公触点 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 1195-3228 | Part # Aliases | 021 021-03-221-1405 03 1405 221 |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 50V | Voltage - Rated | 32V DC |
| Connector Impedance | M12 | Current Rating (Max) | 4A |
| Connector - Voltage Input | shielded | ||
Mechanical
| Weight | 0.05 kg | Packaging | Bulk |
| Orientation | A | Termination | IDC |
| Contact Type | 公插 | Mounting Type | Free Hanging (In-Line) |
| Cable Diameter | 4.5 mm to 8.8 mm | Connector Type | Plug, Male Pins |
| Fastening Type | Threaded | Mounting Style | for cable |
| Locking Feature | threaded joint | Package Quantity | 3 |
| Termination Rows | 螺钉拧紧 | Connector - Cable | plug |
| Termination Style | IDC | 1st Contact Gender | Male |
| Number of Contacts | 4 | Number of Positions | 4 |
| Shell Size - Insert | M12-4 | Contact Layout, Typical | see |
| Wire Gauge or Range - mm2 | 0.25...0.34mm2 | ||
Product Info
| Spg | 3 | Type | Cable Connector |
| Features | Shielded, Strain Relief | Polarity | A code - DeviceNet / CANopen |
| Product Type | Connectors | Adapter Series | HARAX |
| Number of Units | 1 | ||
Environmental
| Seal Rating | IP 65, IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
PDF Document
Similar Parts

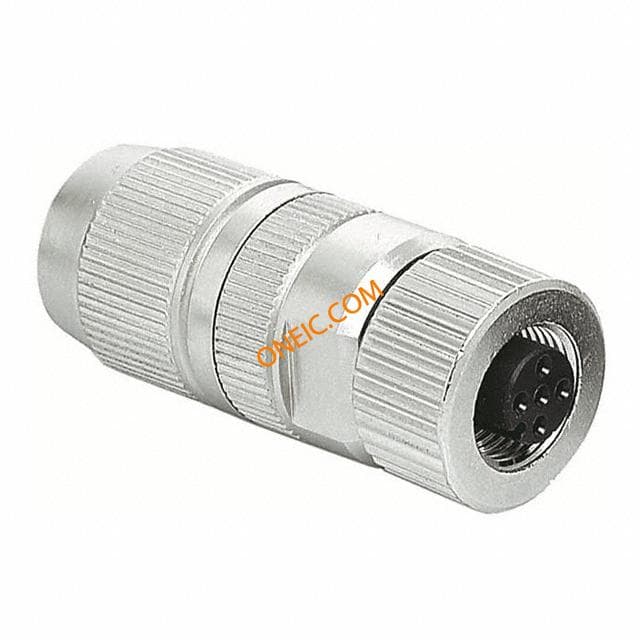

21032212405
