19411240423
| Manufacturer | |
| Description | HAN-ECO 24 TE M40 CABLE GLAND M40 Top Entry Hood with Gland 16 - 28mm Heavy Duty Power Connectors HAN ECO 24B TOP ENT HOOD W/ CABLE GLAND TOP ENTRY HOOD W/ GLAND, HAN-ECO, 24B, PLASTIC Hood;24B;M40;withCableGland;TopEntry;forHan-Eco;IP65 Enclosure: for HAN Modular connectors; Han Eco; size 24B; M40 Han Ecoline Hoods: Han-Eco 16B TE M40 with cable gland Harting Han Eco 系列 顶入 电源连接器外壳 |
| Category |
Business
| Other Names | 1195-3185 | Part # Aliases | 019 019-41-124-0423 0423 124 41 |
| Product Category | Heavy Duty Power Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Mechanical
| Size | 24B | Weight | 0 |
| Packaging | Bulk | Cable Exit | :180° |
| Orientation | straight | Thread Size | M40 |
| Housing Color | Black | Bushing Thread | M40 |
| Cable Diameter | 16...28mm | Connector Type | Hood |
| Mounting Style | Straight | Package / Case | size 24B |
| Locking Feature | :2 Lever | Material - Body | :Glass Filled Polyamide |
| Width - Overall | 7 | Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Package Quantity | 1 | Size / Dimension | 4.764" L x 2.244" W x 5.902" H (121.01mm x 57.00mm x 149.90mm) |
| Shell Size - Insert | :24B | Supplier Device Package | for HAN Modular connectors |
| Material - Housing & Prism | polyamide | ||
Product Info
| Spg | 1 | Style | Top Entry |
| Series | Han-Eco | Product Type | Hoods |
| Lock Location | Locking Clip on Base Bottom | Accessory Type | Top Entry Hood |
| Adapter Series | Han Eco | Number of Units | 1 |
| Number of Positions Loaded | 2 | For Use With/Related Products | Heavy Duty Power Connector |
Environmental
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Operating Temperature | -40°C ~ 125°C |
Similar Parts
19000005098
Harting Technology Group
Cable Accessories Cable Gland Metal Heavy Duty Power Connectors Cable Clamp M40 IP68 22-32mm Brass CBL CLAMP M40 22-32MM BRASS IP68 Fitting; Metal CABLE CLAMP (GLANDS) Fitting;Metal Cable Glands metal: Cable clamp M40, 22-32mm, brass, IP 68 Harting IP68 金属 金属 电缆固定头 , 22mm 至 32mm电缆直径, -40°C至+125°C, M40螺纹

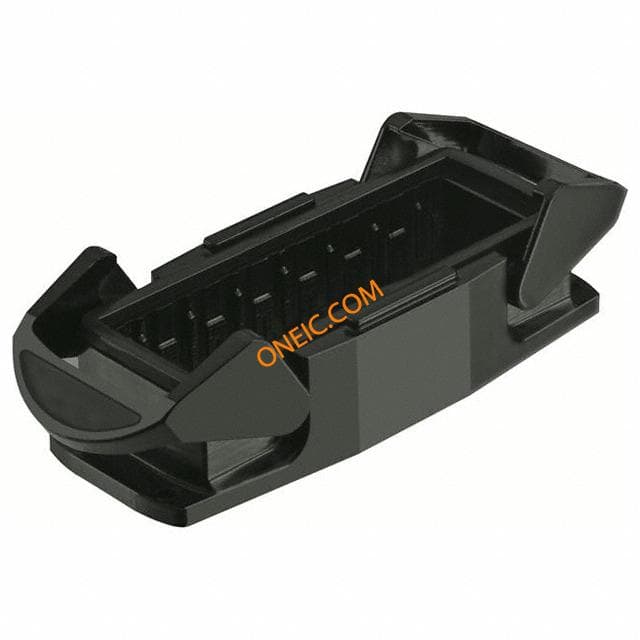

19410240301
