19411060522
| Manufacturer | |
| Description | HAN-ECO 6B SE M32 CABLE GLAND M32 Side entry Hood with Gland 13 - 21mm Heavy Duty Power Connectors HAN ECO 6B SIDE ENT HOOD W/ CABLE GLAND SIDE ENTRY HOOD W/ GLAND, HAN-ECO, 6B, PLASTIC Hood;6B;M32;withCableGland;SideEntry;forHan-Eco;IP65 Enclosure: for HAN Modular connectors; Han Eco; size 6B; angled Han Ecoline Hoods: Han-Eco 24B Panel Mt Housing Harting Han Eco 系列 侧入 电源连接器外壳 |
| Category |
Business
| Other Names | 1195-3180 | Part # Aliases | 019 019-41-106-0522 0522 106 41 |
| Product Category | Heavy Duty Power Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Mechanical
| Size | 6B | Weight | 0 |
| Packaging | Bulk | Cable Exit | :90° |
| Orientation | angled | Thread Size | M32 |
| Weight (g): | 136.00000 | Housing Color | Black |
| Bushing Thread | M32 | Cable Diameter | 13...21mm |
| Connector Type | Hood | Mounting Style | Side |
| Package / Case | size 6B | Locking Feature | :2 Lever |
| Material - Body | :Glass Filled Polyamide | Width - Overall | 3 |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Package Quantity | 1 |
| Size / Dimension | 2.402" L x 2.244" W x 2.693" H (61.00mm x 57.00mm x 68.40mm) | Shell Size - Insert | :6B |
| Supplier Device Package | for HAN Modular connectors | Material - Housing & Prism | polyamide |
Product Info
| Spg | 1 | Style | Side Entry |
| Series | Han-Eco | Product Type | Hoods |
| Lock Location | Locking Clip on Base Bottom | Accessory Type | Side Entry Hood |
| Adapter Series | Han Eco | Number of Units | 1 |
| Number of Positions Loaded | 2 | For Use With/Related Products | Heavy Duty Power Connector |
Environmental
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Operating Temperature | -40°C ~ 125°C |
Similar Parts
19000005094
Harting Technology Group
Cable Accessories Cable Gland Metal Heavy Duty Power Connectors CABLE PROTECT M32 CABLE DIA 13-20 mm CBL CLAMP M32 13-20MM BRASS IP68 Cable Clamp (M32) 13-20mm Brass IP-68 CABLE CLAMP, M32, 13-20MM CableClamp(M32)13-20mmBrassIP-68 Gland; M32; IP68; Dcable:13÷20mm; Mat: metal; Spanner:40mm Cable Glands metal: Cable clamp M32, 13-20mm, brass, IP 68
19000005096
Harting Technology Group
Cable Accessories Cable Gland Metal Heavy Duty Power Connectors CABLE PROTECT M32 IP68 CABLE 18-25mm CBL CLAMP M32 18-25MMBRASS IP68 Cable Entry Protection; Metal; M32; 18-25mm Cable Diameter CABLE CLAMP, M32, 18-25MM CableEntryProtection,Metal,M32,18-25mmCableDiameter Gland; M32; IP68; Dcable:18÷25mm; Mat: metal; Spanner:40mm Cable Glands metal: Cable clamp M32, 18-25mm,brass, IP 68 Harting IP68 金属 金属 电缆固定头 , 18mm 至 25mm电缆直径, -40°C至+125°C, M32螺纹

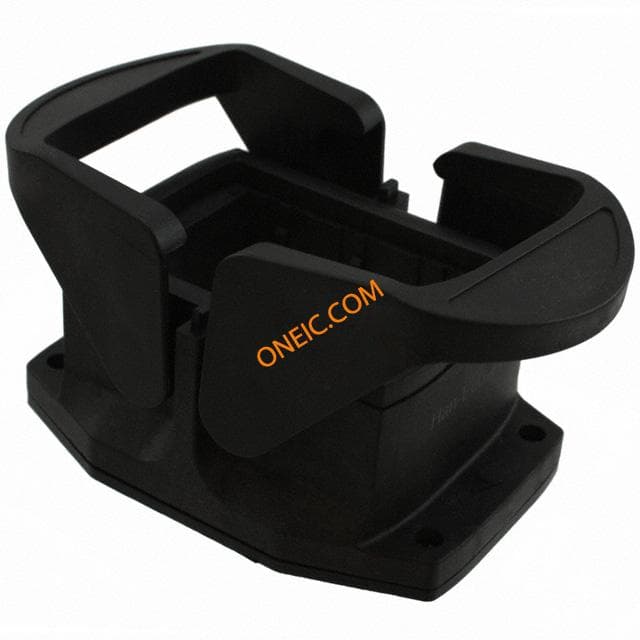

19410060301
