19300101421
| Manufacturer | |
| Description | HAN B HOOD TOP LC 4 PEGS M25 Heavy Duty Power Connectors METAL HOOD HAN 10B 2 LVR LCKING HAN10BHOODTOPENTRYLC4PEGSM25 Enclosure: for rectangular connectors; Han; size 10B; for cable Han B Hoods: Han B Hood Top Entry LC 4 Pegs M25 Harting Han B 系列 顶入 电源连接器 |
| Category |
Business
| Other Names | 1195-3108 | Part # Aliases | 010 019 019-30-010-1421 1421 30 |
| Product Category | Heavy Duty Power Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Mechanical
| Size | 10B | Weight | 0.12 kg |
| Packaging | Bulk | Orientation | straight |
| Thread Size | M25 | Housing Color | Gray |
| Bushing Thread | M25 | Connector Type | Hood |
| Housing Finish | Powder Coated | Mounting Style | for cable |
| Package / Case | size 10B | Locking Feature | for double latch |
| Housing Material | Aluminum, Die Cast | Package Quantity | 3 |
| Size / Dimension | 2.858" L x 1.693" W x 2.303" H (72.60mm x 43.00mm x 58.50mm) | Termination Style | Screw |
| Supplier Device Package | for rectangular connectors | Material - Housing & Prism | aluminium alloy |
Product Info
| Spg | 3 | Type | CONNECTORS |
| Style | Top Entry | Series | Han B |
| Product Type | Receptacle Housings | Lock Location | Locking Clip on Base Bottom |
| Accessory Type | Housings | Adapter Series | Han |
| Number of Units | 1 | Base Product Number | 1930 |
Environmental
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Operating Temperature | -40°C ~ 125°C |
Similar Parts
09380082701
Harting Technology Group
CONN FEMALE INSERT 4+4 POLES +PE 690V 63A WITHOUT PIN 4 Heavy Duty Power Connectors FEMALE INSERT HAN 10B SCW TERM HAN K4/4-F FINGER PROT Han K Female Insert: Han K4/4-F 6-16mm Finger prot Harting Han Com 系列 2行 4针 插座 电源连接器
09330102701
Harting Technology Group
Conn Rectangular F 10Power/2Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN E 10P F SCREW SCREW TERMINATION HAN E 10 POS. F INSERT SCREW Han(R) E 10P skt insert,16A 500V PowerConnectorInsert;Female;10 HanE10Pos.FInsertScrew Connector: HAN; female; E; PIN:10; 10+PE; size 10B; screw terminal Han E Female Insert: Han E 10 Position F Insert Screw Harting Han E 系列 2行 10针 10P+E极 插座 插片
09330102702
Harting Technology Group
Conn Housing F 10 POS Crimp ST Panel Mount HAN 10E INSERT FEMALE CRIMP Han E 10P+E insert for skt contact,16A Heavy Duty Power Connectors HAN E 10P F CRIMP ORDER CONTACTS SEP HAN INSERT, RECEPTACLE, 10WAY, CRIMP Han10Einsertfemalecrimp Connector: HAN; female; Han E; PIN:10; 10+PE; size 10B; crimped; 16A Han E Female Insert- Crimp: Han 10E insert female crimp Harting Han E 系列 2行 10针 插座 电源连接器
19000005092
Harting Technology Group
Cable Accessories Cable Gland Metal Heavy Duty Power Connectors CABL CLAMP M25 BRASS 13-18mm CAB DIA IP68 CBL CLAMP M25 13-18MM BRASS IP68 Gland; Cable; Metal; M25 x 1.5; 26 mm; 30 mm CBLCLAMPM2513-18MMBRASSIP68 Cable Glands metal: Cable clamp M25, 13-18mm, brass, IP 68 Harting IP68 金属 金属 电缆固定头 , 13mm 至 18mm电缆直径, -40°C至+125°C, M25螺纹
09320183101
Harting Technology Group
Conn Housing F 19 POS Crimp ST Heavy Duty Power Connectors HAN EE 18P F CRIMP ORDER CONTACTS SEP HAN EE 18POS INSERT FEMALE CRIMP HanEE18Pos.InsertFemaleCrimp Connector: HAN; female; Han EE; PIN:18; w/o terminals; 500V Han EE Female insert Crimp: Han EE 18 Position Insert Female Crimp Harting Han EE 系列 4行 18针 18P+E极 插座 插片
09160423101
Harting Technology Group
Conn Housing F 42Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN DD 42P F CRIMP ORDER CONTACTS SEP HAN DD 42 POS. F INSERT CRIMP Han(R) DD 42P+E socket insert,10A 250Vac PowerConnectorInsert;Female;42 Connector: HAN; female; Han DD; PIN:42; 42+PE; size 10B; UL94V-0 Han DD Female Insert: Han DD 42 Position F Insert Crimp Harting Han DD 系列 6行 43针 插座 电源连接器

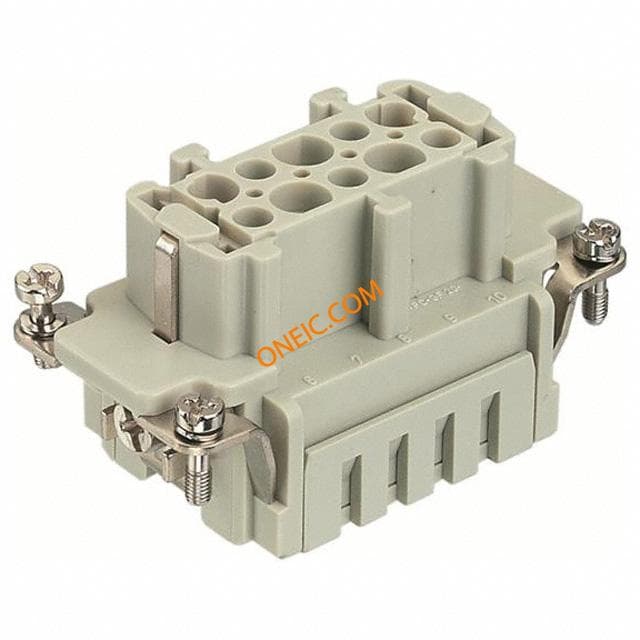

09330102716
Harting Technology Group
Conn Housing F 10 POS Crimp ST Heavy Duty Power Connectors HAN ES 10B 10P FEMAL CAGE-CLAMP TERM HAN 10 ES-F INSERT Han ES 10P cageclamp skt insert,16A 500V HANES10-WAYC/CLAMPSKT HeavyDutyPowerConnector;HANES10B10PFEMALECAGE-CLAMPTERM Connector: HAN; female; Han ES; PIN:10; 10+PE; size 10B; 16A; 500V Han E Female Insert: Han 10 ES-F insert Harting Han ES 系列 2行 10针 插座 电源连接器
19000005190
Harting Technology Group
CABLE GLAND PLASTIC Heavy Duty Power Connectors Cable Clamp M25 IP68 9-16mm Plastic CBL CLAMP M25 9-16MM PLAST IP68 CABLECLAMPM25,9-16MM,PLASTIC,IP68 Gland; M25; IP68; Dcable:9÷16mm; Mat: thermoplastic; Spanner:33mm Harting IP68 灰色 热塑塑料 电缆固定头 , 9mm 至 16mm电缆直径, -40°C至+125°C, M25螺纹
09330102616
Harting Technology Group
Conn Rectangular M 10 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN ES 10P MALE CAGE-CLAMP TERM HAN ES 10 POS. M INSERT Han ES 10P cageclamp plg insert,16A 500V HANES10POS.MINSERT Connector: HAN; male; Han ES; PIN:10; 10+PE; size 10B; spring clamp Han E Male Insert: Han ES 10 Position M Insert Harting Han ES 系列 2行 10针 插头 电源连接器
19000005090
Harting
CBL CLAMP M25 9-16 BRASS IP68 Heavy Duty Power Connectors CABL CLAMP M25 BRASS 9-16mm CABL DIA IP68 Gland; Cable; Metal; M25 x 1.5; 26 mm; 30 mm CABLE CLAMP, M25, 9-16MM Gland,Cable;Metal;M25x1.5;26mm;30mm Gland; M25; IP68; 9÷16mm; Mat: metal Cable Glands metal: Cable clamp M25, 9-16, brass, IP 68

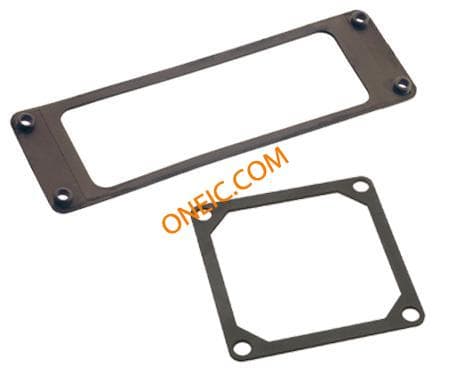

09300009802
