11123001501
| Manufacturer | |
| Description | HAN-YELLOCK SIDE M25 Hood shell side entry M25 Heavy Duty Power Connectors Hood Size 30 Side Entry M25 HAN-YellockHoodSideEntryM25 Han-Yellock Hoods: Han-Yellock side entry M25 Harting Han Yellock 系列 侧入 电源连接器 |
| Category |
Business
| Tradename | YELLOCK, HAN-YELLOCK | Other Names | 1195-2985 |
| Part # Aliases | 011 011-12-300-1501 12 1501 300 | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | ||
Mechanical
| Packaging | Bulk | Orientation | 侧入 |
| Thread Size | M25 | Housing Color | Gray |
| Connector Type | Hood - Shell | Housing Finish | Epoxy Powder Paint |
| Mounting Style | Side | Housing Material | Aluminum, Die Cast |
| Size / Dimension | 2.862" L x 2.205" W x 2.496" H (72.70mm x 56.00mm x 63.40mm) | ||
Product Info
| Type | CONNECTORS | Style | Side Entry |
| Series | Han-Yellock | Hook Type | HAN-YellockHoodSideEntryM25 |
| Product Type | Backshells | Lock Location | Push Button Snap Lock on Hood Carrier |
| Accessory Type | Side Entry Hood | Base Product Number | 1112 |
| For Use With/Related Products | Heavy Duty Power Connector | ||
Environmental
| Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof | Operating Temperature | -40°C ~ 125°C |
Similar Parts
19000005092
Harting Technology Group
Cable Accessories Cable Gland Metal Heavy Duty Power Connectors CABL CLAMP M25 BRASS 13-18mm CAB DIA IP68 CBL CLAMP M25 13-18MM BRASS IP68 Gland; Cable; Metal; M25 x 1.5; 26 mm; 30 mm CBLCLAMPM2513-18MMBRASSIP68 Cable Glands metal: Cable clamp M25, 13-18mm, brass, IP 68 Harting IP68 金属 金属 电缆固定头 , 13mm 至 18mm电缆直径, -40°C至+125°C, M25螺纹
19000005190
Harting Technology Group
CABLE GLAND PLASTIC Heavy Duty Power Connectors Cable Clamp M25 IP68 9-16mm Plastic CBL CLAMP M25 9-16MM PLAST IP68 CABLECLAMPM25,9-16MM,PLASTIC,IP68 Gland; M25; IP68; Dcable:9÷16mm; Mat: thermoplastic; Spanner:33mm Harting IP68 灰色 热塑塑料 电缆固定头 , 9mm 至 16mm电缆直径, -40°C至+125°C, M25螺纹
19000005090
Harting
CBL CLAMP M25 9-16 BRASS IP68 Heavy Duty Power Connectors CABL CLAMP M25 BRASS 9-16mm CABL DIA IP68 Gland; Cable; Metal; M25 x 1.5; 26 mm; 30 mm CABLE CLAMP, M25, 9-16MM Gland,Cable;Metal;M25x1.5;26mm;30mm Gland; M25; IP68; 9÷16mm; Mat: metal Cable Glands metal: Cable clamp M25, 9-16, brass, IP 68

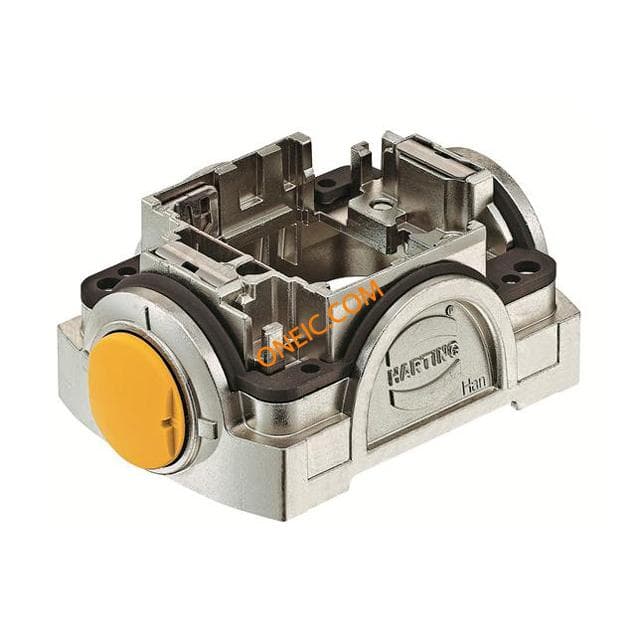

11123000100
Harting
HAN-YELLOCK CARRIER HOOD Carrier hood plain push button Heavy Duty Power Connectors Carrier Hood Size 30 Plain Push Button HAN-YellockCarrierHoodPlainPushButton Han-Yellock Hoods: Han-Yellock carrier hood 30 plain button

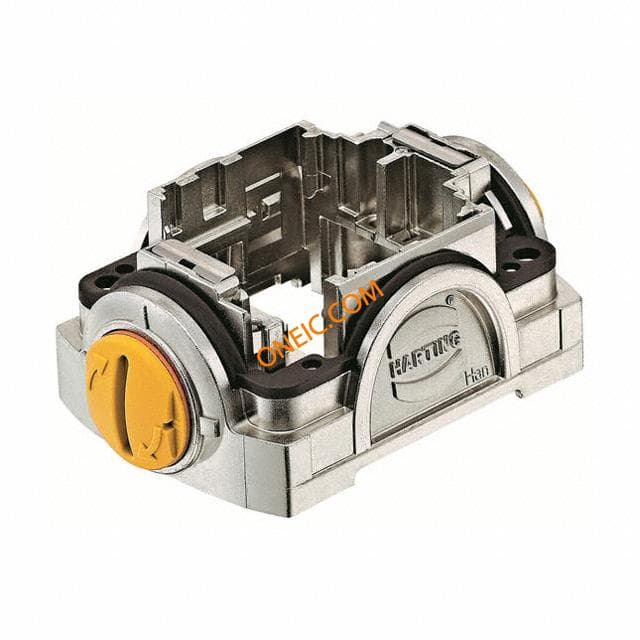

11123000110
