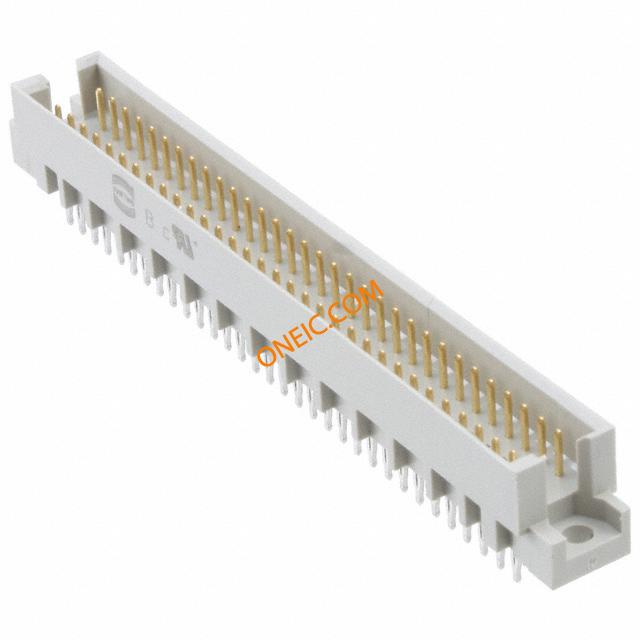

09731646904
| Manufacturer | |
| Description | DIN 41612 Connectors DIN-SIGNAL R064MP-5,0C1-2 TYPE R MALE CONNECTOR PRESS-IN 5064 POL DIN-SIGNAL R064MP-5,0C1-2 Harting 09 73 系列 64 路 2.54mm 节距, R型, 3 行 a/b/c 直向 DIN 41612 插头, 焊接端接 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 09 09-73-164-6904 164 6904 73 | Standard Package | 1 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 15mΩ | Current Rating (Max) | 2 A |
Mechanical
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Orientation | 直 | Termination | Press-Fit |
| Mounting Type | Panel Mount; Through Hole | Connector Type | Header, Male Pins |
| Contact Finish | Gold | Number of Rows | 3 |
| Contact Material | 铜合金 | Housing Material | 热塑性 |
| Termination Rows | 焊接 | Termination Style | Press In |
| Number of Contacts | 64 | Number of Positions | 96 |
| Contact Finish Thickness | Flash | ||
Product Info
| Type | R | Style | R |
| Series | 09 73 | Product Type | Plugs |
| Outlet Types and Quantity | A/b/c | Number of Positions Loaded | 64 |
Environmental
| Level, Class | 2 | Operating Temperature | +125°C |
Similar Parts

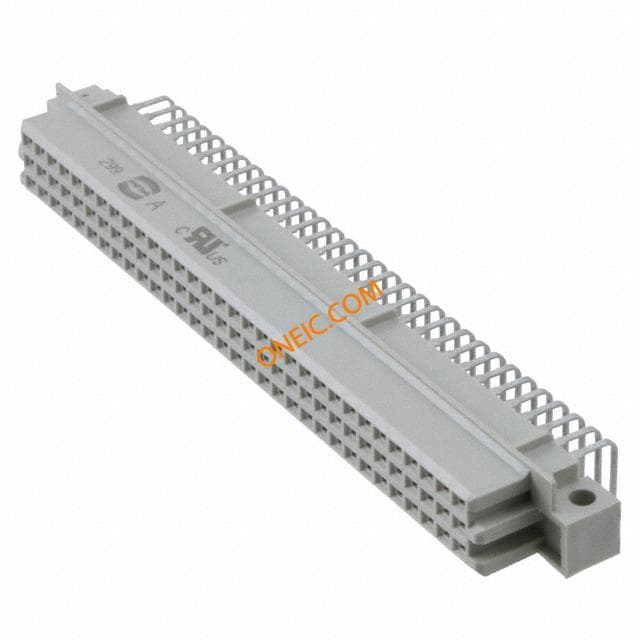

09732646801
