09722646801
| Manufacturer | |
| Description | DIN 41612 Connectors 64P FEMALE TYPE Q STRT SLDR INVERSE Conn DIN 41612 F 64 POS 2.54mm Solder RA Thru-Hole DIN-SIGNAL Q064FS-3,0C1-2 Connector DIN-Signal solder 64-way f ConnectorDIN-Signalsolder64-wayf Harting 09 72 系列 64 路 2.54mm 节距, Q型 C2等级, 2 行 a/b, 直角 DIN 41612 插座, 焊接端接 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 09 09-72-264-6801 264 6801 72 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20mΩ | Current Rating (Max) | 2 A |
Mechanical
| Depth | 15.18 | Pitch | 2.54 mm |
| Height | 8.1 | Packaging | Bulk |
| Orientation | 直角 | Termination | Solder |
| Mounting Type | Right | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 94 | Termination Rows | a/b |
| Termination Style | Solder Pin | Number of Contacts | 64 |
| Number of Positions | 64 | ||
Product Info
| Type | DIN 41612 | Style | Q |
| Gender | F | Series | 09 72 |
| Class Code | C2 | Outlet Types and Quantity | A/b |
| Number of Positions Loaded | All | ||
Environmental
| Ratings | C2 | Level, Class | 2 |
| Operating Temperature | +125°C | ||
Similar Parts
09721646903
HARTING
DIN 41612 Connectors 64P MALE TYPE Q STRT SLDR INVERSE Conn DIN 41612 M 64 POS 2.54mm Solder ST Thru-Hole DIN-SIGNAL Q064MS-4,0C1-2 64 way DIN41612 Q type plug,4mm solder Harting 64 路 2.54mm 节距, Q型 C2等级, 2 行 a/b 直向 DIN 41612 插头, 焊接端接
$18.8396
Details

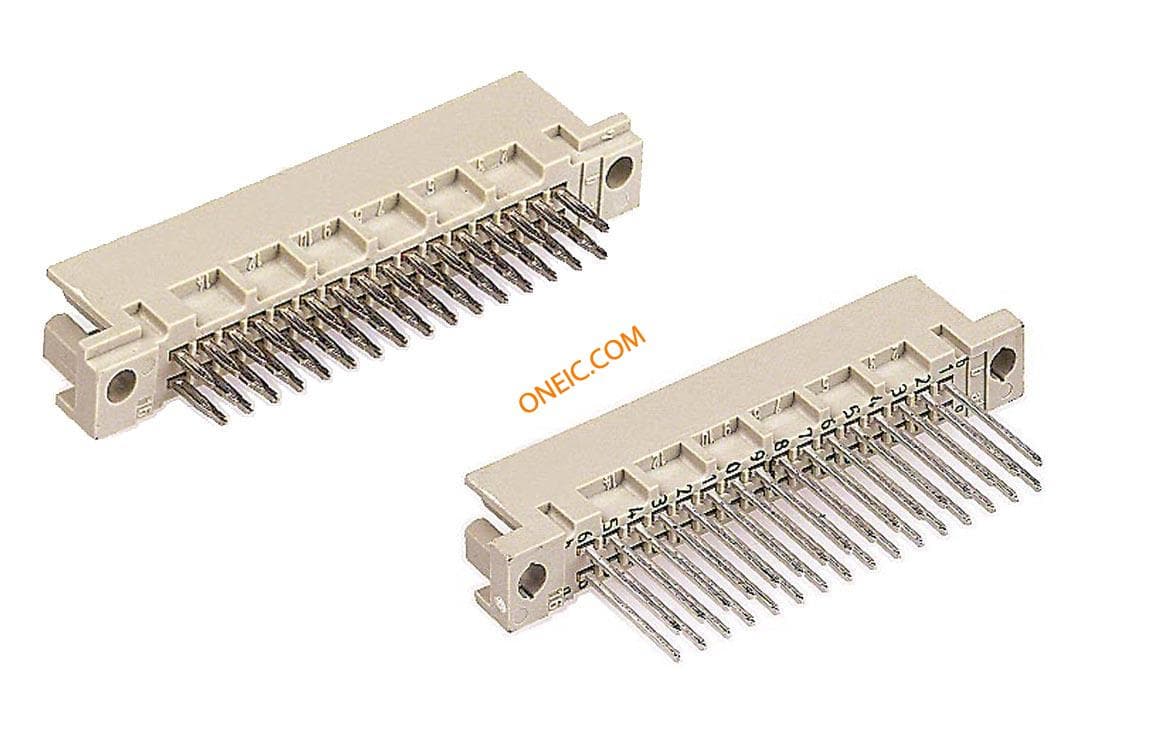

09721646904
HARTING
DIN 41612 Connectors DIN-SIGNAL Q064MP-5,0C1-2 Conn DIN 41612 M 64 POS 2.54mm Press Fit ST Thru-Hole DIN-SIGNAL Q064MP-5,0C1-2
$30.7360
Details

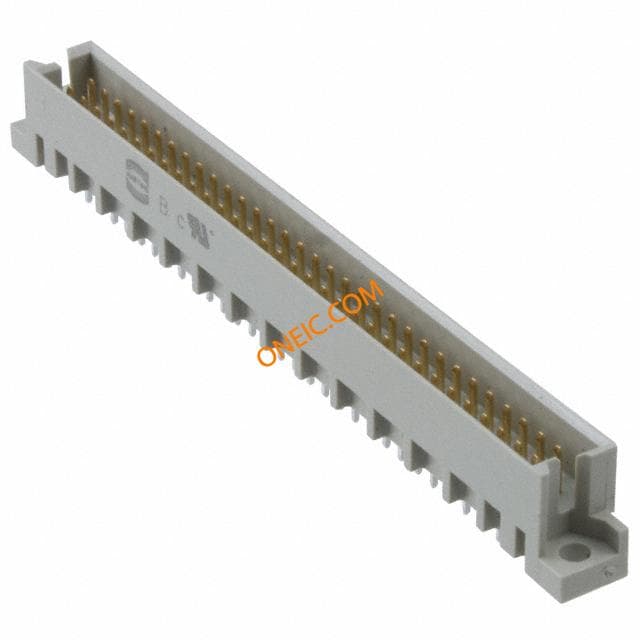

09721646902
