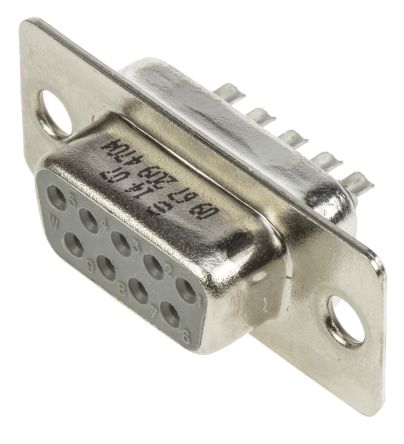

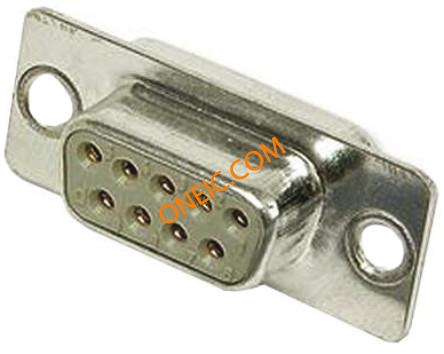

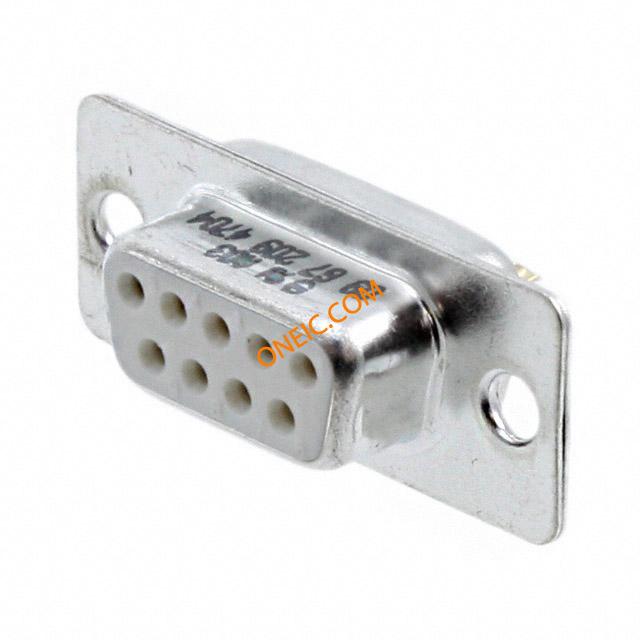

09672094704
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P FEMALE SOLDER Conn D-Subminiature F 9 POS Solder Bucket ST Panel Mount 9 Terminal 1 Port DSUB FE STAMPED SLD CUP 9P PL3 Connector D-SUB solder 9-way f D-Sub Receptacle; 9; Female; Stamped D-SubReceptacle;9;Female;Stamped Harting 面板安装 DB9 9 路 焊接 D-sub 连接器 插座 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 09 09-67-209-4704 209 4704 67 | Product Category | D-Sub Standard Connectors |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Standards | MIL-C-24308,DIN41652,CECC75301-802 | ||
Electrical
| Current Rating (Max) | 6.5A | ||
Mechanical
| Depth | 17mm | Pitch | 2.77mm |
| Width | 12.5mm | Height | 12.5 |
| Length | 31.2mm | Packaging | Bulk |
| Shell Size | E | Orientation | 直 |
| Termination | Solder Bucket | Contact Type | Signal |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Housing Finish | Tin |
| Mounting Style | Panel | Number of Rows | 2 |
| Connector Style | D-Sub | Contact Material | 铜合金 |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Length - Overall | 31.2 |
| Primary Material | D-Subminiature | Size / Dimension | 31.2 x 12.5 x 17mm |
| Termination Style | Solder | 1st Contact Gender | F |
| Number of Contacts | 9 | Dielectric Material | PBTP |
| Number of Positions | 9 | Shell Material, Finish | Steel |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Type | D-Subminiature | Gender | Female |
| Number of Ports | 1 | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
