09670370424
| Manufacturer | |

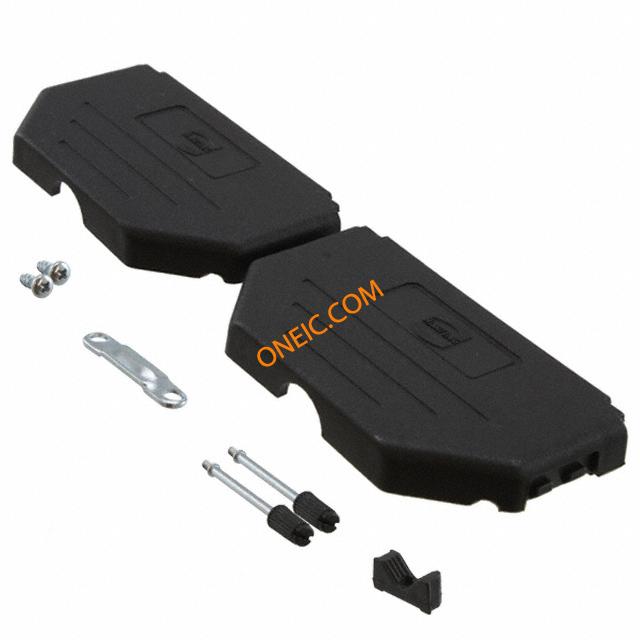

| Description | D-Sub Backshells 37P TOP ENTRY BLK THERMOPLASTIC Connector Accessories D-Sub Hood Top Entry 37 POS With Knurled Screw Thermoplastic Black DSUB PLAST-HOOD 37P KNS-UNC Hood;D-Sub;37Pos;StraightExit;D-SubSeries;Thermoplastic;11.50mmCblDia Enclosure: for D-Sub connectors; D-Sub 37pin, D-Sub HD 62pin |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 037 0424 09 09-67-037-0424 67 | Product Category | D-Sub Backshells |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Standards | RoHSCompliant | Material Flammability Rating | UL94VO |
Electrical
| Connector - Voltage Input | D-Sub 37pin, D-Sub HD 62pin | ||
Mechanical
| Color | Black | Height | 15 |
| Weight | 0.02 kg | Material | Thermoplastic |
| Cable Exit | 180° | Cable Type | Round |
| Shell Size | C | Orientation | straight |
| Thread Size | 4-40UNC | Closing Force | snap fastener |
| Cable Diameter | 11.50mm | Cable End Type | Straight |
| Screw Material | Steel | Shell Material | Thermoplastic |
| Locking Feature | knurled screws | Length - Overall | 70 |
| Package Quantity | 2 | Insulation Diameter | 11.5mm(Max.) |
| Number of Positions | 37 | Number of Cable Pairs | 1 |
| Thread/Screw/Hole Size | UNC4-40 | Supplier Device Package | for D-Sub connectors |
| Material - Housing & Prism | plastic | Backshell Material, Plating | Thermoplastic |
Product Info
| Spg | 2 | Type | Strain Relief Backshell |
| Features | Mating Screws 4-40 | Hardware | Assembly Hardware, Strain Relief |
| Kit Contents | complete shell | Manufacturer | D-SubSeries |
| Accessory Type | Hinged Backshell | Number of Units | 1 |
