09670255601
| Manufacturer | |
| Description | D-Sub Standard Connectors 25P MALE CRIMP NO CONTACTS Conn D-Subminiature PIN 25 POS Crimp ST Panel Mount 25 Terminal 1 Port D SUB MA CRIMP 25 POLE CrimpDConnector(MaleTinnedMetalShellwDimples)25positions D-Sub; PIN:25; male; w/o terminals Harting D-Sub Standard系列 25路 直 压接式 D-sub 连接器, 插头 |
| Category |
Business
| Part # Aliases | 025 09 09-67-025-5601 5601 67 | Product Category | D-Sub Standard Connectors |
| Standard Package | 1 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Standards | MIL-C-24308,DIN41652,CECC75301-802 | Rad Hardened | No |
Electrical
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Depth | 17.7 mm | Width | 12.5mm |
| Height | 12.5 mm | Length | 53mm |
| Weight | 9.31 g | Packaging | Bulk |
| Orientation | 直 | Termination | Crimp |
| Weight (g): | 17.92000 | Contact Type | Signal |
| Mounting Type | Straight | Shell Plating | Tin |
| Angle of Throw | Straight | Connector Type | Plug for Male Contacts |
| Flange Feature | Housing/Shell (Unthreaded) | Housing Finish | Tin |
| Mounting Style | Wire | Number of Rows | 2 |
| Connector Style | D-Sub | Housing Material | Metal |
| Length - Overall | 53.2 mm | Primary Material | D-Subminiature |
| Size / Dimension | 53 x 12.5 x 17.5mm | Termination Style | Crimp |
| 1st Contact Gender | PIN | Number of Contacts | 25 |
| Dielectric Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Number of Positions | 25 |
| Shell Material, Finish | Steel, Tin Plated | Shell Size, Connector Layout | 3 (DB, B) |
Product Info
| Note | Contacts Not Provided | Type | D-Subminiature |
| Gender | Male | Series | D-Sub Standard |
| Features | Grounding Indents | Number of Ports | 1 |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Similar Parts
09670008177
HARTING
D-Sub Contacts MALE CONTACT STAMPED 24-20 AWG Contact PIN Crimp ST Cable Mount Bag DSUB LOOSE PART CRIMP CONTACT DSUB stamped crimp contact male Crimp D Male Crimp Contacts (20-24 Awg) 09670008177 CrimpDMaleCrimpContacts(20-24Awg) CrimpTerminal20-24Awg Harting 公 压接 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG
61030000078
HARTING
D-Sub Contacts 28-24AWG MALE CNCT GIGIBIT MODULE CRIMP CONTACT MALE AWG 24/28 AFS CrimpcontactmaleAWG24/28AFS1
09670008158
HARTING
D-Sub Contacts 20-24 AWG MALE CNTS 10000/REEL CRIMP DSUB-ME-CR-KON AWG20-24;AFS2;L10 D-SUB stamped male contacts D-Sub Contacts 20-24 AWG MALE CNTS CRIMP Harting 公 压接 D-sub 连接器触点, 镀金 触点, 24 → 20 AWG

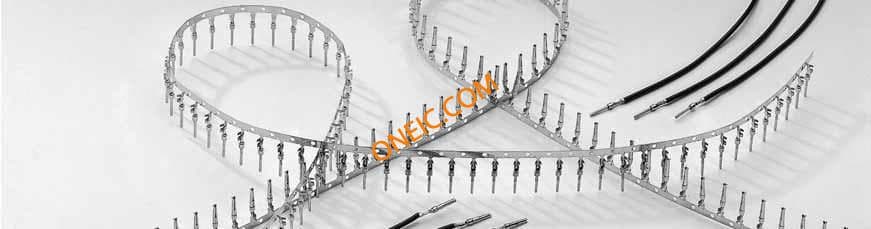

09670008178
