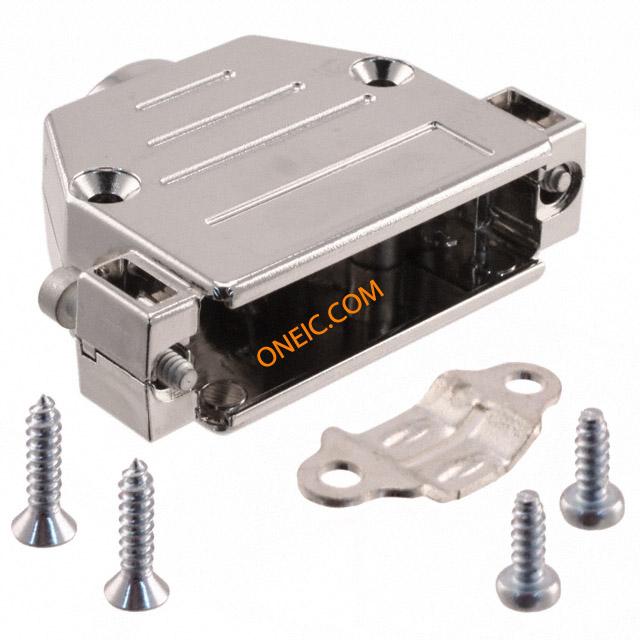

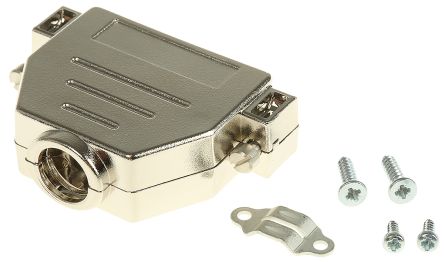

09670250443
| Manufacturer | |
| Description | D-Sub Backshells 25P TOP ENTRY W/SCW METALLIZED PLASTIC DSUB METAL-HOOD 25P SHS-UNC D-Sub hood metallized 25-pin Hood;D-Sub;25Pos;Straight;D-SubSeries;MetallizedThermoplastic;3.50-11.00mmCblDia Harting D-sub 系列 25 路 直 黑色 热塑性 D-sub 连接器底壳 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 025 0443 09 09-67-025-0443 67 | Product Category | D-Sub Backshells |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Standards | RoHSCompliant |
Mechanical
| Color | 黑色 | Material | Plastic, Metallized |
| Cable Exit | 180° | Cable Type | Round |
| Shell Size | B | Orientation | 直 |
| Thread Size | 4-40UNC | Mounting Type | Straight |
| Cable Diameter | 3.50-11.00mm | Cable End Type | Straight |
| Cable Material | Metal | Screw Material | Metal |
| Shell Material | Thermoplastic | Housing Material | Thermoplastic |
| Color - Connectors | Black | Number of Contacts | 25 |
| Number of Positions | 25 | Number of Cable Pairs | 1 |
| Backshell Material, Plating | MetalizedThermoplastic | ||
Product Info
| Type | Strain Relief Backshell | Series | D-sub |
| Features | Mating Screws 4-40 | Hardware | Assembly Hardware, Cable Clamp |
| Manufacturer | D-SubSeries | Accessory Type | Two Piece Backshell |
Documents & Media
PDF Document
