09670250425
| Manufacturer | |

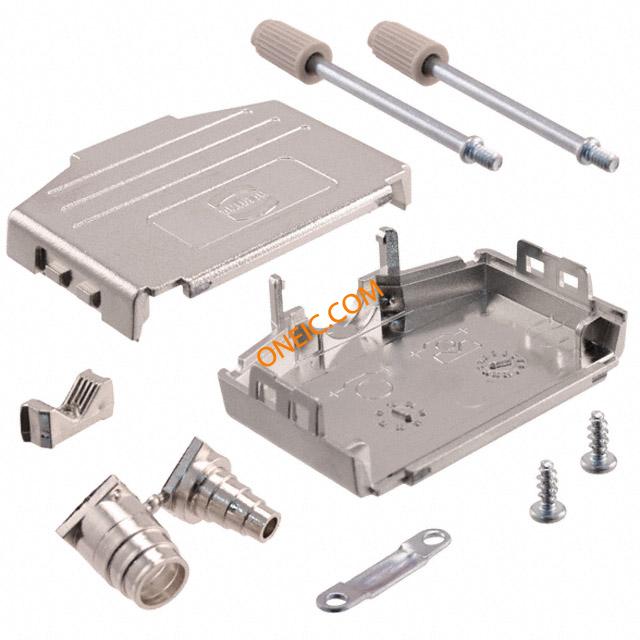

| Description | D-Sub Backshells DSub Hoods + others DSUB METAL-HOOD 25P KNS-UNC Hood; D-Sub; Backshell; 11.5 mm (Max.); 54.5 mm L x 15 mm W x 40 mm H; 4-40 UNC Hood;D-Sub;25Pos;StraightExit;D-SubSeries;MetallizedThermoplastic;11.50mmCblDia Harting D-sub 系列 25 路 直 金属热塑性 D-sub 连接器护罩 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 025 0425 09 09-67-025-0425 67 | Product Category | D-Sub Backshells |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | Standards | RoHSCompliant |
| Material Flammability Rating | UL94VO | ||
Mechanical
| Material | Plastic, Metallized | Cable Exit | 180° |
| Cable Type | Round | Shell Size | B |
| Orientation | 直 | Thread Size | 4-40UNC |
| Cable Diameter | 11.50mm | Cable End Type | Straight |
| Screw Material | Steel | Shell Material | Thermoplastic |
| Housing Material | 金属热塑性 | Number of Contacts | 25 |
| Insulation Diameter | 11.5mm(Max.) | Number of Positions | 25 |
| Number of Cable Pairs | 1 | Backshell Material, Plating | MetalizedThermoplastic |
Product Info
| Type | Strain Relief Backshell | Series | D-Sub |
| Features | Mating Screws 4-40 | Hardware | Assembly Hardware, Strain Relief |
| Manufacturer | D-SubSeries | Accessory Type | Two Piece Backshell |
