09670090443
| Manufacturer | |

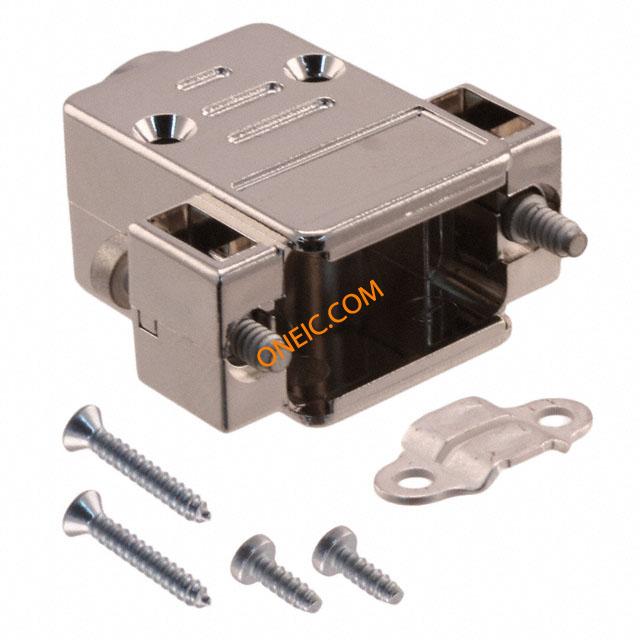

| Description | D-Sub Backshells 9P HOOD TOP ENTRY 4-40 SHORT SCREWS DSUB METAL-HOOD 09P SHS-UNC D-Sub hood metallized 9-pin Hood;D-Sub;9Pos;StraightExit;D-SubSeries;MetallizedThermoplastic;7.50mmCblDia Enclosure: for D-Sub connectors; D-Sub HD 15pin, D-sub 9pin Harting D-sub 系列 9 路 直 黑色 热塑性 D-sub 连接器底壳 , 带应力消除 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 009 0443 09 09-67-009-0443 67 | Product Category | D-Sub Backshells |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Standards | RoHSCompliant |
Electrical
| Connector - Voltage Input | D-Sub HD 15pin, D-sub 9pin | ||
Mechanical
| Color | 黑色 | Weight | 0.01 kg |
| Material | Plastic, Metallized | Cable Exit | 180° |
| Cable Type | Round | Shell Size | E |
| Orientation | straight | Thread Size | 4-40UNC |
| Mounting Type | Straight | Wire Diameter | 1.5...7.5mm |
| Cable Diameter | 7.50mm | Cable End Type | Straight |
| Cable Material | Metal | Screw Material | Metal |
| Shell Material | Thermoplastic | Housing Material | Thermoplastic |
| Package Quantity | 1 | Color - Connectors | Black |
| Number of Contacts | 9 | Number of Positions | 9 |
| Number of Cable Pairs | 1 | Thread/Screw/Hole Size | UNC4-40 |
| Supplier Device Package | for D-Sub connectors | Material - Housing & Prism | plastic |
| Static Discharge Shielding | 是 | Backshell Material, Plating | MetalizedThermoplastic |
Product Info
| Spg | 1 | Type | Strain Relief Backshell |
| Series | D-sub | Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Cable Clamp | Kit Contents | complete shell |
| Manufacturer | D-SubSeries | Accessory Type | Two Piece Backshell |
| Number of Units | 1 | ||
