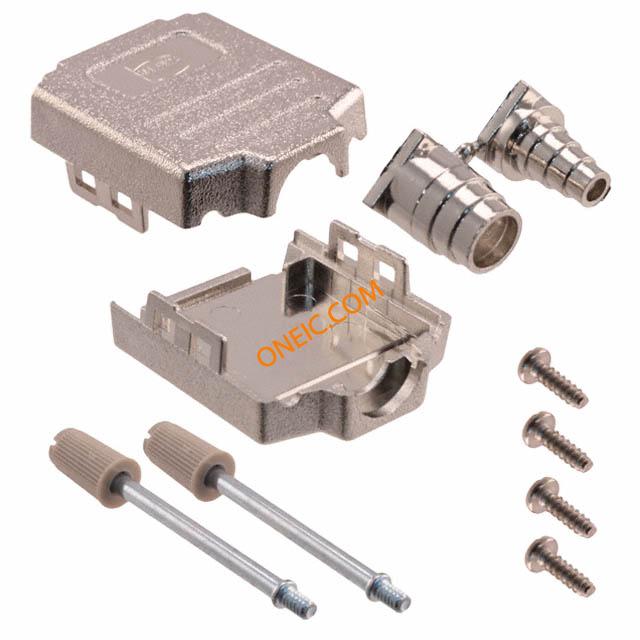

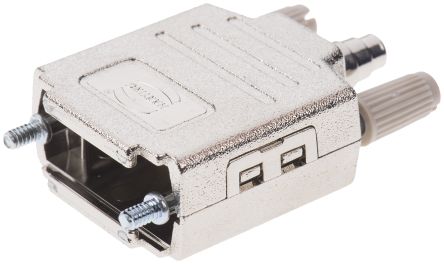

09670090425
| Manufacturer | |
| Description | D-Sub Backshells 9P HOOD TOP ENTRY METALLIZED PLASTIC D SUB METALLIZED PLAST TOP HOOD D-SUB metallized plastic hood 9-way Hood; D-Sub; Backshell; 8.5 mm (Max.); 32.5 mm L x 15 mm W x 38 mm H; 4-40 UNC D SUB HOOD, SIZE DE, METALIZED PLASTIC Hood;D-Sub;9Pos;Str.Exit;D-SubSeries;MetallizedThermoplastic;3.30-11.50mmCblDia Harting 9 路 连接器护罩 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 009 0425 09 09-67-009-0425 67 | Product Category | D-Sub Backshells |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | Standards | RoHSCompliant |
| Tariff No | 85369010 | Material Flammability Rating | UL94VO |
Mechanical
| Weight | 0.014 | Material | Plastic, Metallized |
| Cable Exit | 180° | Cable Type | Round |
| Shell Size | E | Thread Size | 4-40UNC |
| Cable Diameter | 3.30-11.50mm | Cable End Type | Straight |
| Screw Material | Steel | Shell Material | Thermoplastic |
| Material - Body | :Metallized Plastic | Insulation Diameter | 8.5mm(Max.) |
| Number of Positions | 9 | Shell Size - Insert | :DE |
| Number of Cable Pairs | 1 | Exterior Housing Material | :Metalized Plastic |
| Backshell Material, Plating | MetalizedThermoplastic | ||
Product Info
| Type | Strain Relief Backshell | Series | :- |
| Features | Mating Screws 4-40 | Hardware | Assembly Hardware, Strain Relief |
| Manufacturer | D-SubSeries | Accessory Type | Two Piece Backshell |
Documents & Media
PDF Document
