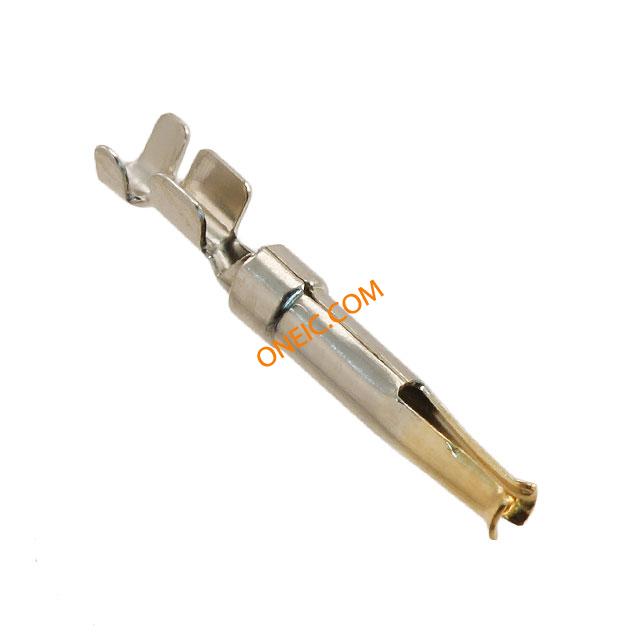

09670008277
| Manufacturer | |
| Description | D-Sub Contacts FEMALE CONTACT STAMPED 24-20 AWG DSUB FE CR KON AWG20-24 AFS3 DSUB stamped contact female Crimp D Female Crimp Contacts (20-24 Awg) CrimpDFemaleCrimpContacts(20-24Awg) Harting 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG |
| Category |
Business
| Part # Aliases | 000 09 09-67-000-8277 67 8277 | Product Category | D-Sub Contacts |
| Standard Package | 1 | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | ||
Mechanical
| Length | 14.1mm | Packaging | Bulk |
| Wire Gauge | 24-20 | Termination | Crimp |
| Weight (g): | 0.12500 | Contact Form | Stamped |
| Contact Type | Stamped / Formed Contacts | Connector Type | 母座 |
| Contact Finish | Gold | Contact Material | Brass |
| Primary Material | Contact | Termination Rows | 压接 |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Termination Finish | Nickel | Contact Tail Length | 24/20 |
| Contact Termination | Crimp | Wire Gauge or Range - AWG | 24-20 |
| Wire Gauge or Range - mm2 | 24 → 20 AWG | Contact Material - Plating | GoldoverNickel |
Product Info
| Type | Signal | Gender | Female |
| Series | D-Sub Standard | Features | Insulation Support |
| Manufacturer | D-SubHighDensity | For Use With/Related Products | D-SubHighDensityConn. |
