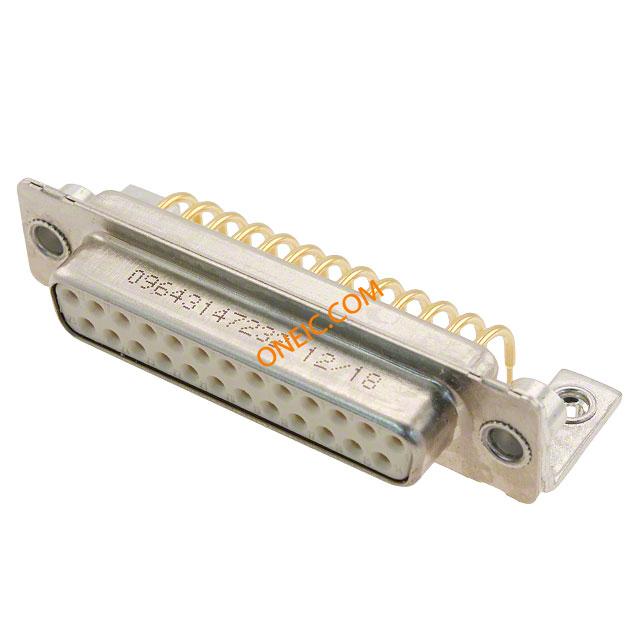

09643147232
| Manufacturer | |
| Description | D-Sub Standard Connectors 25P FEMALE RT ANGLE BOARDCLIP/CLINCH NUT 25 WAY RA FEMALE 1K BLNUT4 SOCKET, D, FILTERED, PCB, R/A, 25WAY FILTEREDD-SUBCONNECTOR,RECEPTACLE,25POS(RABOARDLOCK/CLINCHNUT)1000PF |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 09 09-64-314-7232 314 64 7232 | Product Category | D-Sub Standard Connectors |
| Standard Package | 1 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Standards | UL | Tariff No | 85369010 |
| Approval Agency | :UL | Material Flammability Rating | :UL94V-0 |
Electrical
| Capacitance | :1000pF | Voltage Rating | 100V |
| Voltage - Working | :100V | Contact Resistance | :10mohm |
| Voltage - Breakdown | :250V | Current Rating (Max) | 7.5 A |
| Insulation Resistance | :1000Mohm | ||
Mechanical
| Color | Natural | Weight | 0.018 |
| Packaging | Bulk | Shell Size | :DB |
| Termination | Solder | Thread Size | :4-40 UNC |
| Contact Type | Signal | Mounting Type | Right |
| Shell Plating | Tin | Angle of Throw | RightAngle |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Board Side (4-40) | Mounting Style | Through Hole |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Material - Body | :Metal |
| Housing Material | Polycyclohexylenedimethylene (PCT), Glass Filled | Primary Material | D-Subminiature |
| Termination Style | Solder | Number of Contacts | 25 |
| Contact Termination | :Solder | Number of Positions | 25 |
| Shell Material, Finish | Steel | Material - Housing & Prism | :Steel |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Type | PCBSocket | Gender | Female |
| Series | 9 | Features | Board Lock, Filter, Mounting Bracket |
| Manufacturer | D-Sub-F | ||
Environmental
| Mating Cycles | :200 | Operating Temperature | - 55 C to + 125 C |
