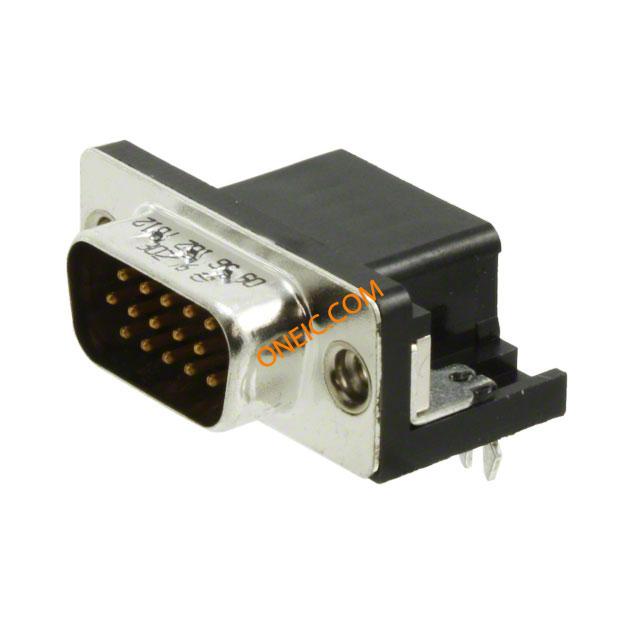

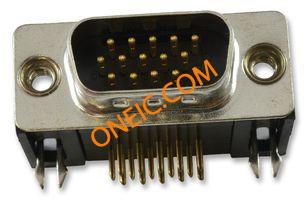

09561627812
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P MALE R/A PCB 4-40 UNC PL3 PLATING D SUB HD MA RA 15P PL3_4-40 NUT D SUB CONNECTOR, STANDARD, 15POS, PLUG |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 09 09-56-162-7812 162 56 7812 | Product Category | D-Sub High Density Connectors |
| Standard Package | 1 | Factory Pack Quantity | 70 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
Electrical
| Range deg/s | :HARTING - HD Series | Current Rating (Max) | 2 A |
Mechanical
| Color | Black | Weight | 0.005 |
| Packaging | Bulk | Shell Size | :DE |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Right | Shell Plating | Tin |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) | Mounting Style | Through Hole |
| Number of Rows | 3 | Shell Material | Steel |
| Connector Style | D-Sub, High Density | Material - Body | :Metal |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Termination Style | Solder |
| Number of Contacts | 15 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 15 | Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 1 (DE, E) High Density | ||
Product Info
| Gender | Male | Series | 956 |
| Features | Board Lock, Grounding Indents | ||
Environmental
| Mating Cycles | :50 | Operating Temperature | -55°C ~ 105°C |
