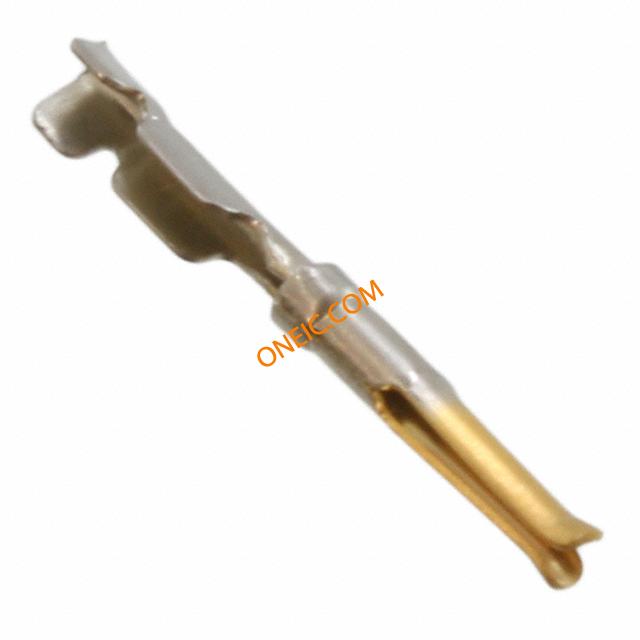

09560008277
| Manufacturer | |
| Description | D-Sub Contacts FEMALE CRIMP CONTACT PL3 PLATING Contact SKT Crimp ST Cable Mount Bulk D SUB HD FE CONTACT 24-26AWG PL3 Contact AWG 24-26 F HighDensityDSubCrimpContacts(Female24-26Awg) Harting 母 压接 D-sub 连接器触点, 镀金 触点, 26 → 24 AWG |
| Category |
Business
| Part # Aliases | 000 09 09-56-000-8277 56 8277 | Product Category | D-Sub Contacts |
| Standard Package | 1 | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20 | Current Rating (Max) | 2A |
Mechanical
| Depth | 1.8 | Height | 1.77 |
| Length | 17.4mm | Packaging | Bulk |
| Wire Gauge | 26-24 | Shield Type | No |
| Termination | Crimp | Contact Form | Stamped |
| Contact Type | Stamped / Formed Contacts | Mounting Type | Cable Mount |
| Connector Type | Connector D-Subminiature | Contact Finish | Gold |
| Contact Material | Copper Alloy | Length - Overall | 17.4 |
| Primary Material | Contact | Termination Rows | 压接 |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Contact Tail Length | 26/24 | Contact Termination | Crimp |
| Wire Gauge or Range - AWG | 26-24 | Wire Gauge or Range - mm2 | 26 → 24 AWG |
Product Info
| Type | Signal | Gender | SKT |
| Series | D-Sub High Density | Features | High Density (HD), Insulation Support |
| Manufacturer | D-SubHighDensity | For Use With/Related Products | D-SubHighDensityConn. |
Environmental
| Operating Temperature | 105 | ||
