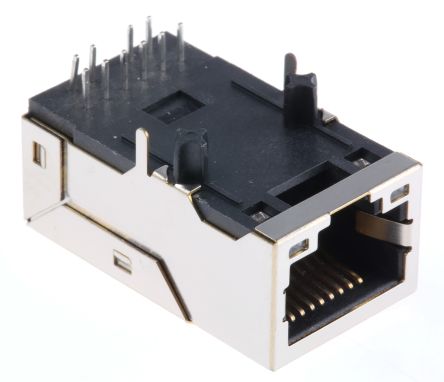

09455511530
| Manufacturer | |
| Description | CONN MAGJACK 1PORT 1000 BASE-T har-port Ind. RJ45 Jack+t/form for 1Gbit Harting 直角 母 RJ45 模块化插孔 , 通孔型 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | ||
Mechanical
| Depth | 15.75mm | Width | 15.75mm |
| Length | 11.75mm | LED Color | Does Not Contain LED |
| Packaging | Tray | Shielding | Shielded |
| Orientation | 90° Angle (Right) | Termination | Solder |
| Mounting Type | Through Hole | Tab Direction | Down |
| Connector Type | RJ45 | Contact Finish | Gold |
| Number of Rows | 1 | Shield Material | Brass |
| Contact Material | Phosphor Bronze | Height Above Board | 0.463" (11.75mm) |
| Number of Positions/Bay/Row | 8C | ||
Product Info
| Gender | Female | Features | Board Guide |
| Direction | 直角 | Applications | 10/100/1000 Base-T, AutoMDIX |
| Number of Lines | 8C | Number of Ports | 1 |
| Number of Cores per Jack | 8 | ||
Environmental
| Seal Rating | IP20 | Ingress Protection | IP20 |
| Operating Temperature | -25°C ~ 70°C | ||
