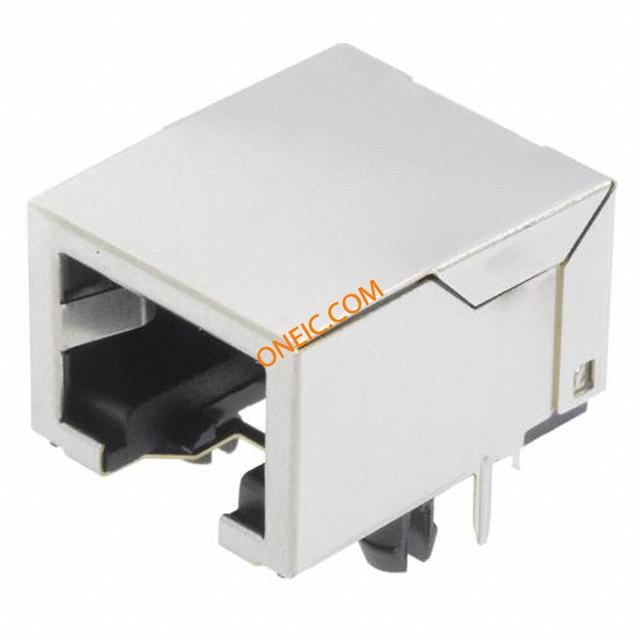

09455511102
| Manufacturer | |
| Description | CONN MOD JACK R/A 8P8C SHIELDED Ethernet & Telecom Connectors RJ 45 MOD JACK THT RJI RJ45 Jack Cat.5 THT angled Modular Connectors / Ethernet Connectors RJ 45 MOD JACK THT Conn RJ-45 F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port T/R Cat 5 RJIRJ45JackCat.5THTangled Data Piece Parts: RJ45 MODULAR JACK THT Harting 直角 母 RJ45 连接器 , Cat5, 通孔型 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Modular Jacks | Part # Aliases | 09 09-45-551-1102 1102 45 551 |
| Standard Package | 1 | Factory Pack Quantity | 120 |
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 125 V | Current Rating (Max) | 1.5 A |
| Connector - Voltage Input | Cat5 | ||
Mechanical
| Color | Gray | Depth | 18.65mm |
| Pitch | 1.27 mm | Width | 15.74mm |
| Height | 11.75 mm | Length | 11.75mm |
| LED Color | Does Not Contain LED | Packaging | Bulk |
| Shielding | Shielded | Orientation | 90° Angle (Right) |
| Termination | Solder | Housing Color | Black |
| Mounting Type | Through Hole | Tab Direction | Down |
| Connector Type | Jack | Contact Finish | Gold |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polybutylene Terephthalate (PBT) |
| Length - Overall | 15.74 mm | Termination Style | Solder |
| Number of Contacts | 8 | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Type | RJ-45 | Gender | Female |
| Features | Board Lock | Direction | 直角 |
| USOC Codes | RJ45 | Category Number | Cat 5 |
| Number of Ports | 1 | Network Technology | Cat5 |
| Performance Category | Cat 5 | Number of Positions Loaded | 8 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | ||
Environmental
| Ratings | Cat5 | Seal Rating | IP65, IP67 |
| Ingress Protection | IP20 | Operating Temperature | -20°C ~ 70°C |
