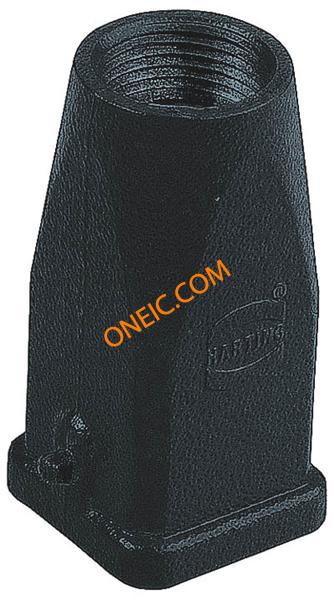

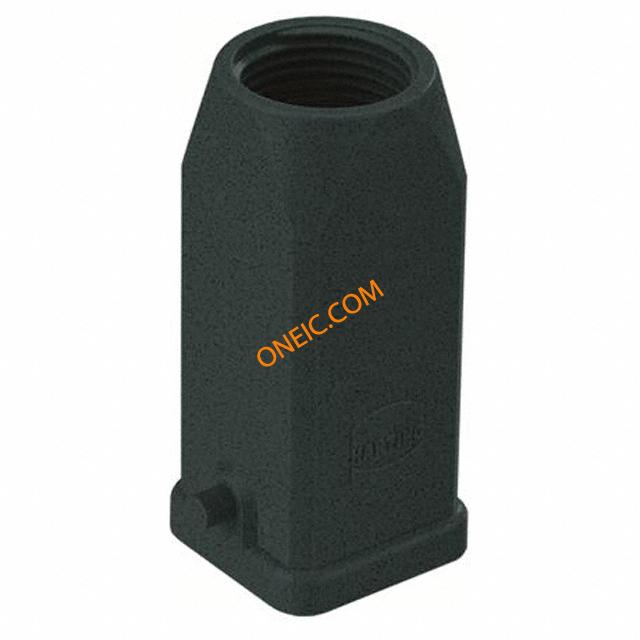

09370031440
| Manufacturer | |
| Description | HAN M HOOD TOP 2 PEGS PG 11 Heavy Duty Power Connectors METAL HOOD HAN 3A 1 LVR LCKING Enclosure: for Han connectors; Han; size 3A; for cable; for latch |
| Category |
Business
| Part # Aliases | 003 09 09-37-003-1440 1440 37 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | ||
Mechanical
| Size | 3A | Weight | 0.07 kg |
| Packaging | Bulk | Orientation | straight |
| Thread Size | PG11 | Weight (g): | 66.00000 |
| Housing Color | Black | Bushing Thread | PG11 |
| Connector Type | Hood | Housing Finish | Epoxy Powder Paint |
| Mounting Style | Straight | Package / Case | size 3A |
| Locking Feature | for latch | Housing Material | Zinc, Die Cast |
| Package Quantity | 10 | Size / Dimension | 1.063" L x 1.102" W x 2.362" H (27.00mm x 28.00mm x 60.00mm) |
| Color - Connectors | black | Material - Insulation | FPM |
| Supplier Device Package | for Han connectors | Material - Housing & Prism | zinc alloy |
Product Info
| Spg | 10 | Style | Top Entry |
| Series | Han M | Product Type | Hoods |
| Lock Location | Central Locking Clip on Base Bottom | Adapter Series | Han |
| Number of Units | 1 | ||
Environmental
| Ingress Protection | IP44 | Operating Temperature | -40°C ~ 125°C |
Similar Parts
09120073001
Harting Technology Group
Conn Housing M 8 POS Crimp ST Panel Mount Heavy Duty Power Connectors MALE INSERT 7 POLE CRIMP TERM HAN Q 7/0-MALE HeavyDutyPowerConnectorsMALEINSERT7POLECRIMPTERM HanQ7/0-male Han Q Male Insert: Han Q 7/0-male Harting Han Q 系列 2行 8针 插头 电源连接器
09200042711
Harting Technology Group
Conn Rectangular F 4Power/1Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN A 4P FEMALE SCRW SCREW TERMINATION HAN A 04 POS. F INSERT SCREW Insert; 230/400 V; 10 A; Female; 4; RoHS Compliant; Han A Series Han10B-g Connector: HAN; female; Han A; PIN:5; 4+PE; size 3A; screw terminal Han A Female Insert-Screw: Han A 04 Position F Insert Screw
09200032611
Harting Technology Group
Conn Power M 3Power POS Screw ST Cable Mount 3 Terminal 1 Port Heavy Duty Power Connectors HAN A 3P MALE SCREW SCREW TERMINATION HAN 3A M INSERT SCREW Han A 3 2 Male Straight, Cable Mount 10A,600V Insert;230/400V;10A;Male;3;RoHSCompliant;HanASeries Connector: HAN; male; Han A; PIN:4; 3+PE; size 3A; screw terminal Han A Male Insert-Screw: Han 3A M Insert Screw Harting Han A 系列 2行 3针 3P+E极 插头 电源连接器插件 , 电缆安装
09210073131
Harting Technology Group
Conn Housing F 8 POS Crimp ST Heavy Duty Power Connectors HAN D 7P FEMALE CRMP ORDER CONTACTS SEP HAN D 7 POS. F INSERT CRIMP Han(R) D 7P+E socket insert, 250Vac PowerConnectorInsert;Female;7 Connector: HAN; female; Han D; PIN:8; 7+PE; size 3A; w/o terminals Han D Female Insert: Han D 7 Position F Insert Crimp Harting Han D 系列 3行 8针 插座 电源连接器
09000005013
Harting Technology Group
Connector Accessories Cable Clamp With Normal Seal Copper Zinc Alloy Nickel Plating Heavy Duty Power Connectors CABLE SEAL PG 11 METAL METAL MULTIPLE CABLE SEAL PG 11 ACCES.METALMULTTPLECABLESEAL Cable Glands metal: Acces. Metal Multiple Cable Seal Harting 电缆衬垫
09120073101
Harting Technology Group
Conn Housing F 8 POS Crimp ST Heavy Duty Power Connectors HAN Q FEM INST CRIMP TERM 7C+PE HAN Q 7/0-F HanQ7/0-Female Han Q Female Insert: Han Q 7/0-F Harting Han Q 系列 4行 8针 插座 电源连接器
09000005164
Harting
PLASTIC CABLE SEAL NORMAL PG 11 Heavy Duty Power Connectors CABLE SEAL PG11 IP65 PLASTC 11mm CABL DIA Cable Glands plastic: Acces. Plastic Cable Seal Normal PG 11
09360083001
Harting
HAN 8D MALE INSERT CRIMP Heavy Duty Power Connectors HAN U 8P MALE INSERT CRIMP Han(R) 8D(U) 8P male insert,10A 50Vac HANU8PMALEINSERTCRIMP Connector: HAN; male; Han D; PIN:8; size 3A; w/o terminals; crimped Han D Male Insert: Han 8D Male Insert Crimp Harting Han D 系列 8针 插头 电源连接器

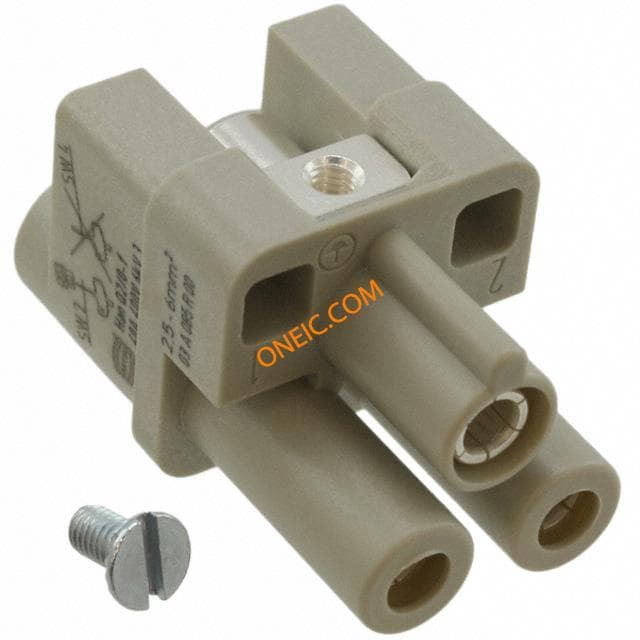

09120022753
