09340062701
| Manufacturer | |
| Description | Heavy Duty Power Connectors HAN HV E 16B 6P FEM SCREW TERMINATION HAN HVE 6 POS. F INSERT SCREW INSERT FEMALE 6+2POS+1GND SCREW HanHvE6Pos.FInsertScrew Harting HAN HV E 系列 2行 6针 插座 电源连接器 |
| Category |
Business
| Part # Aliases | 006 09 09-34-006-2701 2701 34 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 830V | Current Rating (Max) | 16A |
Mechanical
| Size | 16B | Color | Gray |
| Packaging | Bulk | Connector Type | Insert |
| Contact Finish | Silver | Number of Rows | 2 |
| Insertion Force | Female | Contact Material | Copper Alloy |
| Housing Material | Polycarbonate (PC) | Size / Dimension | 16B |
| Termination Rows | 螺钉 | Termination Style | Screw |
| Number of Contacts | 6 | Number of Positions | 6+2+Ground |
Product Info
| Type | 连接器插件 | Gender | Female |
| Series | Han Hv E | Product Type | Inserts |
| Base Product Number | 0934 | ||
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Similar Parts
19340060421
Harting Technology Group
HOOD Heavy Duty Power Connectors HD TOP ENTRY 4 PEG HAN HVE HAN 6HVE-GG-M25 CONN HOOD TOP ENTRY SZ16B M25
19340060271
Harting
Heavy Duty Power Connectors SURFACE MOUNTNG HSG 2 SIDE ENTRIES HAN 6HVE-ASG2-QB-M25 CONN BASE SIDE ENTRY SZ16B M25 Han6HvE-asg2-QB-M25 Harting HAN HV E 系列 电源连接器 , 表面安装

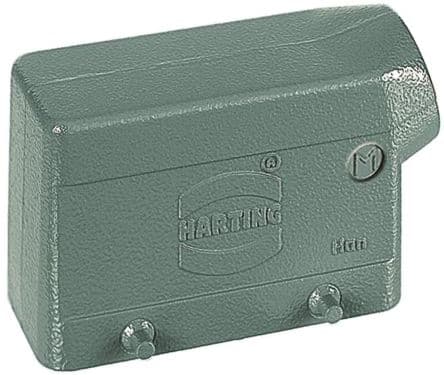

19340060521
Harting
Heavy Duty Power Connectors HD SIDE ENTRY 4 PEG HAN HVE HAN 6HVE-GS-M25 CONN HOOD SIDE ENTRY SZ16B M25 Han6HvE-gs-M25 Harting HAN HV E 系列 电源连接器
19340060731
Harting
Heavy Duty Power Connectors CABLE TO CABLE HOOD HAN 16B 2 LVR LCKING HAN 6HVE-KG-QB-M25 CONN HOOD CPLNG BOTTOM SZ16B M25 Enclosure: for Han connectors; Han; size 16B; for cable; straight
19340060732
Harting
Heavy Duty Power Connectors CABLE TO CABLE HOOD HAN 16B 2 LVR LCKING HAN 6HVE-KG-QB-M32 CONN HOOD CPLNG BOTTOM SZ16B M32

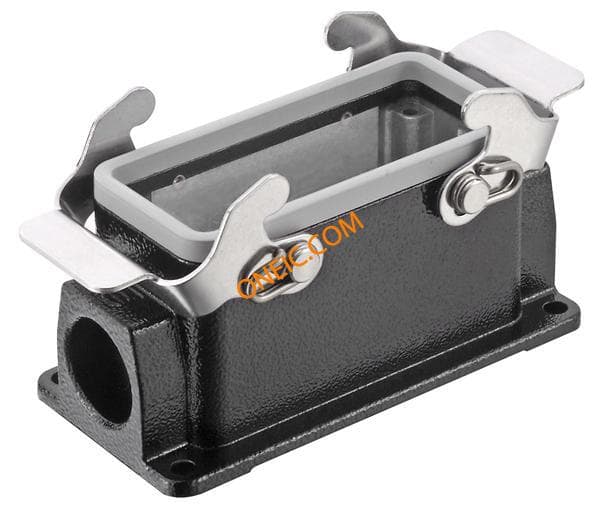

19370160272
Harting
Heavy Duty Power Connectors SURFACE MOUNTING HSG 2 SIDE ENTRY 2 LEVER HAN 16M-ASG2-QB-M32 CONN BASE SIDE ENTRY SZ16B M32 Han16M-asg2-QB-M32 Han M Housings: Han 16M-asg2-QB-M32 Harting HAN M 系列 电源连接器 , 表面安装
19370160273
Harting
Heavy Duty Power Connectors HAN 16M-ASG2-QB-M40 HAN 16M-ASG2-QB-M40 CONN BASE SIDE ENTRY SZ16B M40
19370160282
Harting
Heavy Duty Power Connectors SURFACE MOUNTING HSG HAN 16B 2 SIDE ENTRY HAN 16M-ASG2-R-M32 CONN BASE SIDE ENTRY SZ16B M32

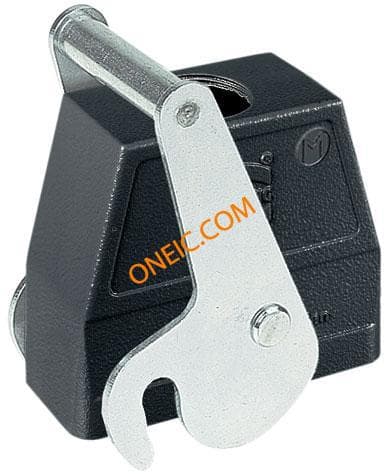

19370160487
