点击放大查看
09330162611
| Manufacturer | |
| Description | HAN 32E MALE INSERT (17-32) Heavy Duty Power Connectors HAN E 32P M SCREW SCREW TERMINATION Han E 17-32P+E plg insert,16A 400-500Vac Connector,MaleInsert,32Contacts Connector: HAN; male; E; PIN:16; 16+PE; size 32B (2 x 16B); 16A Han E Male Insert: Han 32E male insert (17-32) Harting Han E 系列 2行 16针 插头 电源连接器 |
| Category |
Business
| Part # Aliases | 016 09 09-33-016-2611 2611 33 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage - Test | 6kV | Voltage Rating | 600V |
| Contact Resistance | 3mΩ | Current Rating (Max) | 16A |
| Connector - Voltage Input | contact layout: 17-32 | ||
Mechanical
| Size | 32B | Color | Gray |
| Weight | 0.09 kg | Packaging | Bulk |
| Orientation | 直 | Weight (g): | 86.00000 |
| Mounting Type | screw terminal | Connector Type | Insert |
| Contact Finish | Silver | Number of Rows | 2 |
| Package / Case | size 32B (2 x 16B) | Insertion Force | Male |
| Contact Material | Copper Alloy | Housing Material | Polycarbonate (PC) |
| Package Quantity | 5 | Termination Style | Screw |
| Number of Contacts | 16 | Number of Positions | 16+Ground |
| Material - Insulation | polycarbonate | Wire Gauge or Range - mm2 | 1...2.5mm2 |
| Contact Material - Plating | silver plated | 1st Connector Mounting Feature | 16+PE |
Product Info
| Spg | 5 | Type | CONNECTORS |
| Gender | Male | Series | HAN-E |
| CAD Drawing | 3D CAD Model | Product Type | Housings |
| Adapter Series | E | Number of Units | 1 |
Environmental
| Mechanical Life | 500cycles | Operating Temperature | -40°C ~ 125°C |
Similar Parts
09300160541
Harting Technology Group
Connector Accessories 9 POS Hood Metal Heavy Duty Power Connectors HAN 16B PG29 SIDE METAL HOOD CONN HAN 16B HOOD SIDE PG29 Han B Hood Side Entry 2 Pegs PG 29 HanBHoodSideEntry2PegsPG29 Enclosure: for Han connectors; Han; size 16B; for cable; angled Han B Hoods: Han B Hood Side Entry 2 Pegs PG 29 Harting Han B 系列 侧入 电源连接器

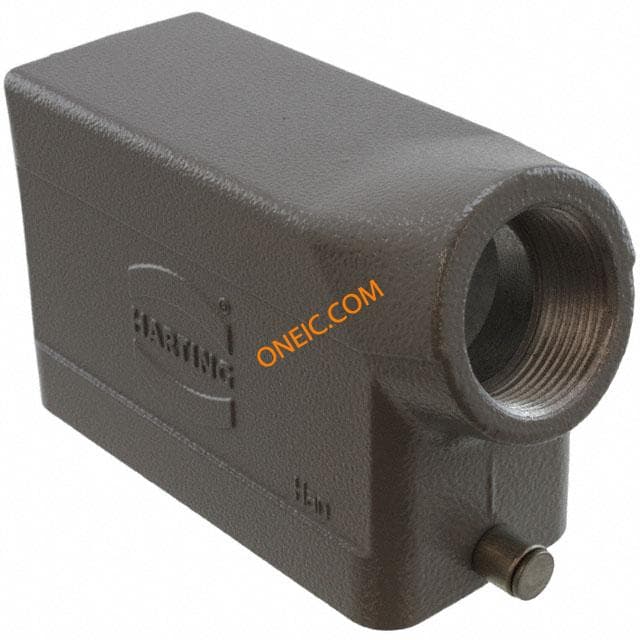

09300161540
Harting Technology Group
Connector Accessories 9 POS Hood Metal Heavy Duty Power Connectors HAN 16B PG21 SIDE METAL HOOD HAN 16B-HSE-R-PG21 Low type side entry 1lever hood,PG21 16B Hood;Metal;93.5mm;43mm;62.5mm;Pg21CableEntry Enclosure: for Han connectors; Han; size 16B; for cable; angled Han B Hoods: Han B Hood Side Entry LC 2 Reels PG 21 Harting Han B 系列 侧入 电源连接器
09300161420
Harting Technology Group
Connector Accessories 9 POS Hood Metal Heavy Duty Power Connectors HAN 16B PG21 TOP METAL HOOD HAN B HOOD TOP LC 4 PEGS PG 21 Low construction top entry hood,PG21 16B HANBHOODTOPENTRYLC4PEGSPG21 Enclosure: for Han connectors; Han; size 16B; for cable; straight Han B Hoods: Han B Hood Top Entry LC 4 Pegs PG 21 Harting Han B 系列 顶入 护罩
19300160427
Harting Technology Group
Connector Accessories Hood Metal Heavy Duty Power Connectors METAL HOOD HAN 16B 2 LVR LCKING HAN B HOOD TOP HC M32 High type top entry metric hood,M32 16B HAN16BHOODTOPENTRYHC4PEGSM32 Enclosure: for Han connectors; Han; size 16B; for cable; high Han B Hoods: Han B Hood Top Entry HC M32 Harting Han B 系列 顶入 电源连接器
09628240301
Harting Technology Group
Connector Accessories Bulkhead Housing Heavy Duty Power Connectors BULKHEAD MOUNTING HAN 24B 2 LVR LCKING HAN EMC/B 24 BASE PANEL Bulkhead housing Han 24B EMC Han EMC Housings: Han EMC/B 24 Base Panel Harting Han B 系列 电源连接器
19628160527
Harting Technology Group
HAN 16EMV/B-GS-M32/HOOD Heavy Duty Power Connectors METAL HOOD HAN 16B 2 LVR LCKING HAN 16 EMC/B-GS-M32 Hood side entry Han 16B EMC 1 x 32mm HC Han EMC Hoods: Han 16 EMC/B-GS-M32 Harting Han EMC 系列 侧入 电源连接器
09300160420
Harting
HAN B HOOD TOP HC 4 PEGS PG 21 Heavy Duty Power Connectors HAN 16B PG21 TOP ENT METAL HOOD High type top entry hood,PG21 16B Connector,Hood,6Position Han B Hoods: Han B Hood Top Entry HC 4 Pegs PG 21 Harting Han B 系列 顶入 护罩
09300161530
Harting
HAN B HOOD SIDE LC 2 LEVER PG 21 Heavy Duty Power Connectors METAL HOOD HAN 16B 2 LVR LCKING Low type side entry 2lever hood,PG21 16B HanMHoodSideEntryHC4PegsPG29 HOODSIDEENTRYSIZE16B Enclosure: for Han connectors; Han; size 16B; for cable; angled Han B Hoods: Han B Hood Side Entry LC 2 Levers PG 21 Harting Han B 系列 侧入 电源连接器
19300161271
Harting
HAN 16B BASE SURFACE LC 2 X M25 Heavy Duty Power Connectors HAN16B-ASG2-QB-M25 HAN16BBASESURFACELC2xM25 Enclosure: for Han connectors; Han; size 16B; with double latch Han B Housings: Han 16B Base Surface LC 2 x M25 Harting Han B 系列 电源连接器 , 表面安装
19300160447
Harting
HAN 16 B HOOD TOP M32 Heavy Duty Power Connectors HAN 16B M32 TOP METAL HOOD HAN 16 B HOOD TOP ENTRY 2 PEGS M32 HAN16BHOODTOPENTRY2PEGSM32 Enclosure: for Han connectors; Han; size 16B; for cable; high Han B Hoods: Han 16 B Hood Top Entry M32 Harting Han B 系列 顶入 电源连接器
19370161521
Harting
HAN M HOOD SIDE LC 4 PEGS M25 Heavy Duty Power Connectors METAL HOOD HAN 16B 2 LVR LCKING Han M Hoods: Han M Hood Side Entry LC 4 Pegs M25 Harting HAN M 系列 侧入 电源连接器外壳
09300161230
Harting
HAN B BASE LC 2 LEVERS 1 P Heavy Duty Power Connectors HAN 16B SURFACE MT 1 SIDE ENTRY Surface base housing module,16B Surfacebasehousingmodule,16B Enclosure: for Han connectors; Han; size 16B; with double latch Han B Housings: Han B Base Surface LC 2 Levers 1 Entry P Harting Han B 系列 电源连接器外壳

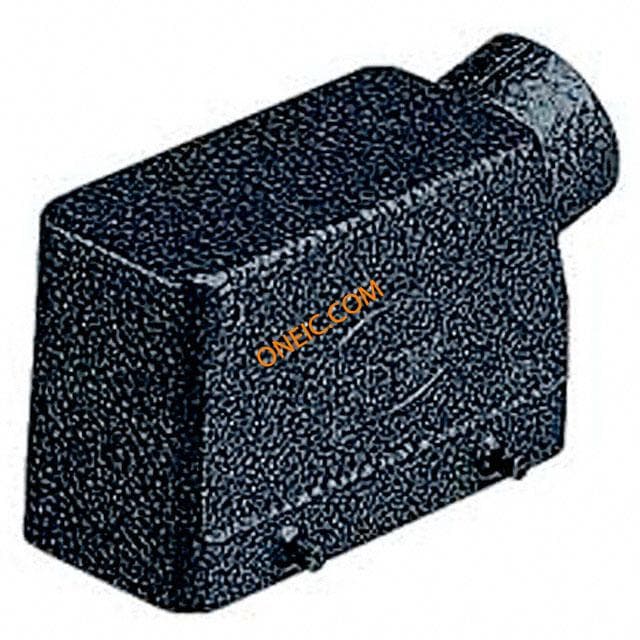

09370161520
