点击放大查看
09300240420
| Manufacturer | |
| Description | HAN B HOOD TOP HC 4 PEGS PG 21 Heavy Duty Power Connectors HAN 24B PG21 TOP METAL HOOD Hi type top entry hood for 2 lever,PG21 HAN24BPG21(TopMetalHood) Han B Hoods: Han B Hood Top Entry HC 4 Pegs PG 21 Harting Han B 系列 顶入 电源连接器 |
| Category |
Business
| Part # Aliases | 024 0420 09 09-30-024-0420 30 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Compliant | ||
Mechanical
| Size | 24B | Packaging | Bulk |
| Orientation | 顶入 | Thread Size | PG21 |
| Housing Color | Gray | Connector Type | Hood |
| Housing Finish | Powder Coated | Mounting Style | Straight |
| Housing Material | Aluminum, Die Cast | Size / Dimension | 4.724" L x 1.693" W x 3.622" H (120.00mm x 43.00mm x 92.00mm) |
| Termination Style | Screw | ||
Product Info
| Type | CONNECTORS | Style | Top Entry |
| Series | Han EEE | Product Type | Hoods |
| Lock Location | Locking Clip on Base Bottom | Accessory Type | Hood |
Environmental
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Operating Temperature | -40°C ~ 125°C |
Similar Parts
09330242702
Harting Technology Group
Conn Housing F 25 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN E 24P F CRIMP ORDER CONTACTS SEP HAN E 24 POS. F INSERT CRIMP RECTANGULAR HAN INSERT, FEM, 24WAY CRIMP HANE24POS.FINSERTCRIMP Connector: HAN; female; Han E; PIN:24; 24+PE; size 24B; crimped; 16A Han E Female Insert- Crimp: Han E 24 Position F Insert Crimp

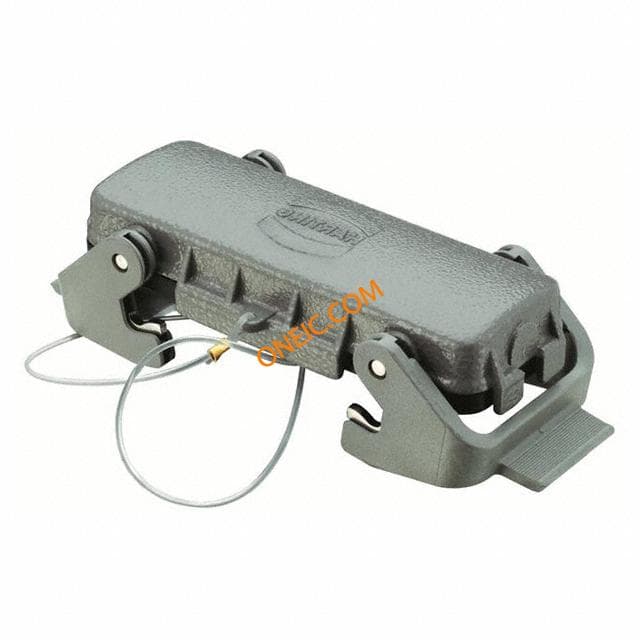

09300245422
Harting Technology Group
Connector Accessories Metal Cover Heavy Duty Power Connectors HAN 24B COVER METAL 2 LEVERS HAN B PROTECT COVER DIE CAST Hood cover,24B/PG21 Hood,HighConstruction,PG21 Protection cover; Han; size 24B; with double latch; metal Han B Accessories: Han B Protect Cover Die Cast for Hood PG Harting Han B 系列 保护盖 , PG21螺纹, 适用于大负荷电源连接器

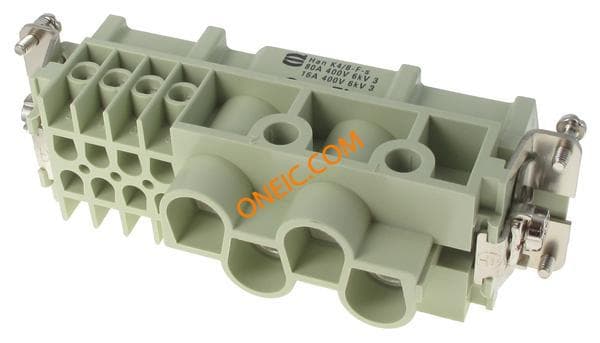

09380122701
Harting Technology Group
Conn Rectangular F 4Power/8Signal/2Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN K 4+8P F SCREW SCREW TERMINATION HAN K 4/8 POS. F INSERT SCREW Connector; Female Insert; 24 Positions Connector,FemaleInsert,24Positions Connector: HAN; female; Han Com; PIN:12(4+8); size 24B; Inom 1:80A Han K Female Insert: Han K 4/8 Position F Insert Screw Harting Han Com 系列 12针 12P+E极 插座 插片

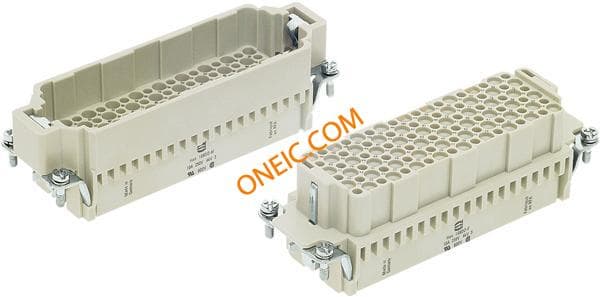

09161083011
Harting Technology Group
HAN 108DD -M-C MALE INSERT Heavy Duty Power Connectors MALE INSERT HAN 216DD CRIMP TERM HAN 108 DD-PCI-C (109-216) INSERT MALE 108POS+1GND CRIMP Han DD Male Insert: Han 108 DD-STI-C (109-216) Harting Han DD 系列 108针 插头 电源连接器

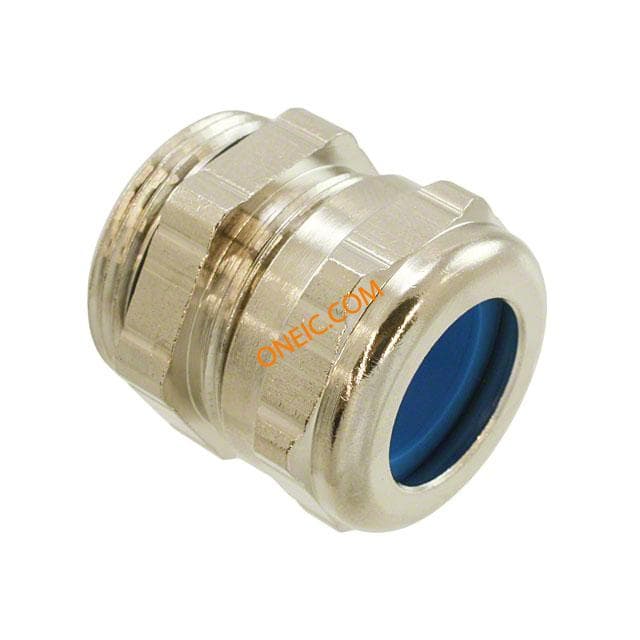

09000005093
Harting Technology Group
Cable Accessories Cable Gland Blue Heavy Duty Power Connectors UNI SEAL PG21 BLUE 14-18mm CABLE DIA CONN UNI SEAL BLUE PG 21 Accessory Universal Seal Blue (PG 21) min 14 max 18 AccessoryUniversalSealBlue(PG21)min14max18 Cable Glands metal: Acces. Uni Seal Blue PG 21 min 14 max 18 Harting IP68 蓝色 金属 电缆固定头 , 14mm 至 18mm电缆直径, PG21螺纹
09210643101
Harting Technology Group
Conn Housing F 65 POS Crimp ST Heavy Duty Power Connectors HAN D 64P F CRIMP ORDER CONTACTS SEP HAN D 64 POS. F INSERT CRIMP PowerConnectorInsert;Female;64 Connector: HAN; female; Han D; PIN:64; 64+PE; size 24B; UL94V-0 Han D Female Insert: Han D 64 Position F Insert Crimp
09330242601
Harting Technology Group
Conn Rectangular M 24Power/2Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN E 24P M SCREW SCREW TERMINATION HAN E 24 POS. M INSERT SCREW Han(R) E 24P+E plg insert,16A 400-500Vac Insert;500V;16A;Male;24;RoHSCompliant;24BProductSize HANE24Pos.MInsertScrew Connector: HAN; male; E; PIN:24; 24+PE; size 24B; screw terminal Han E Male Insert: Han E 24 Position M Insert Screw Harting Han E 系列 2行 24针 24P+E极 插头 插入式插件

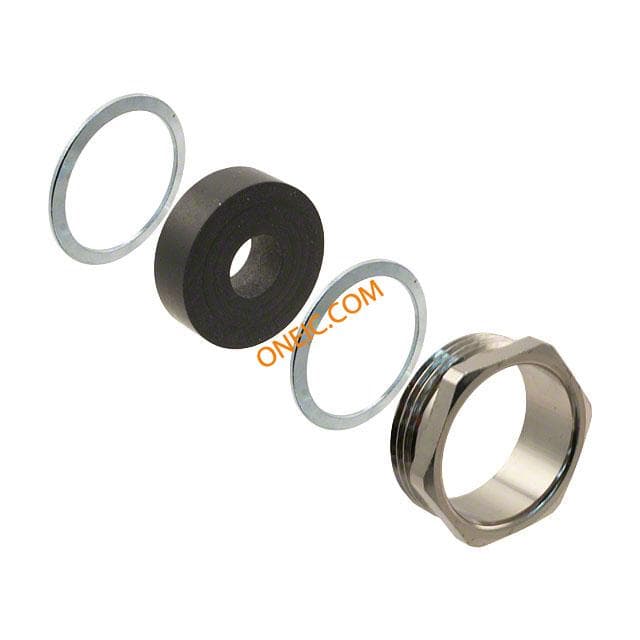

09000005016
Harting
METAL MULTIPLE CABLE SEAL PG 21 Heavy Duty Power Connectors CABLE SEAL PG 21 METAL ACCES.METALMULTIPLECABLESEALPG21 Harting 电缆密封

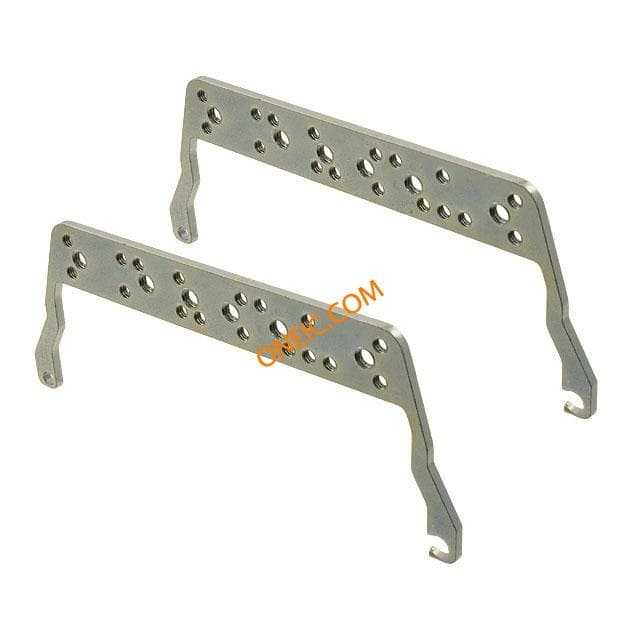

09000005298
Harting
GROUND TERM FOR HAN-MOD SIZE 24 Heavy Duty Power Connectors GROUNDING FRAME FOR 24B MOD FRAME Harting HAN Modular 系列 电源连接器
09330242611
Harting
HAN E 24POS M INSERT SCREW 25-48 Heavy Duty Power Connectors HAN E 48P M SCREW SCREW TERMINATION Han E 25-48P+E plg insert,16A 400-500Vac Connector,MaleInsert,48Positions Connector: HAN; male; E; PIN:24; 24+PE; size 48B (2 x 24B); 16A Han E Male Insert: Han E 24 Position M Insert Screw 25-48 Harting Han E 系列 2行 49针 插头 电源连接器 , 电缆安装

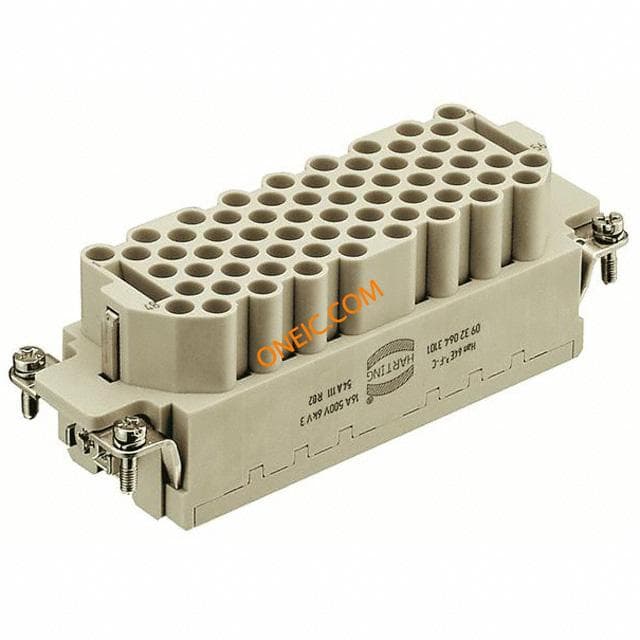

09320643101
