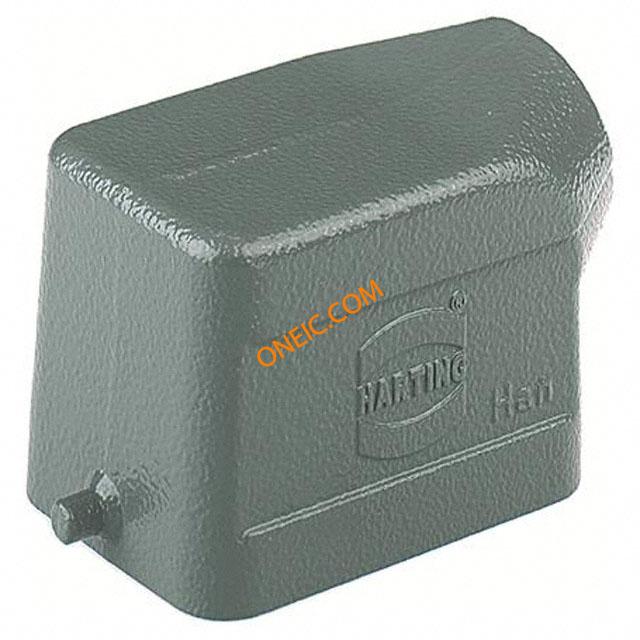

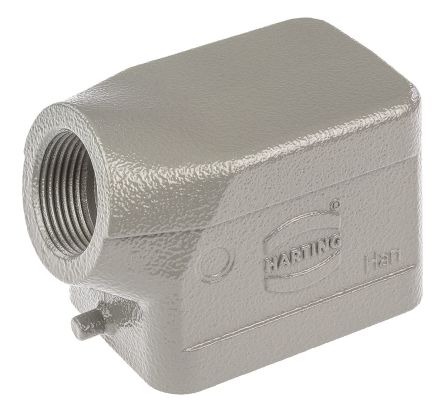

09300061541
| Manufacturer | |
| Description | HAN B HOOD SIDE LC 2 PEGS PG 16 Heavy Duty Power Connectors HAN 6B PG16 SIDE ENT METAL HOOD Low type side entry hood,PG16 size6B HAN6BHood(SideEntry,SingleLeverPeg)PGThread Enclosure: for Han connectors; Han; size 6B; for cable; for latch Han B Hoods: Han B Hood Side Entry LC 2 Pegs PG 16 Harting Han B 系列 侧入 电源连接器 |
| Category |
Business
| Part # Aliases | 006 09 09-30-006-1541 1541 30 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Compliant | ||
Mechanical
| Size | 6B | Weight | 0.11 kg |
| Packaging | Bulk | Orientation | angled |
| Thread Size | PG16 | Weight (g): | 108.00000 |
| Housing Color | Gray | Bushing Thread | PG16 |
| Connector Type | Hood | Housing Finish | Powder Coated |
| Mounting Style | Side | Package / Case | size 6B |
| Locking Feature | for latch | Housing Material | Aluminum, Die Cast |
| Package Quantity | 5 | Size / Dimension | 2.362" L x 1.693" W x 2.016" H (60.00mm x 43.00mm x 51.20mm) |
| Termination Style | Cable | Supplier Device Package | for Han connectors |
| Material - Housing & Prism | aluminium alloy | ||
Product Info
| Spg | 5 | Type | CONNECTORS |
| Style | Side Entry | Series | Han Modular |
| Product Type | Hoods | Lock Location | Side Clip on Base Bottom |
| Accessory Type | Hood | Adapter Series | Han |
| Number of Units | 1 | ||
Environmental
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Operating Temperature | -40°C ~ 125°C |
