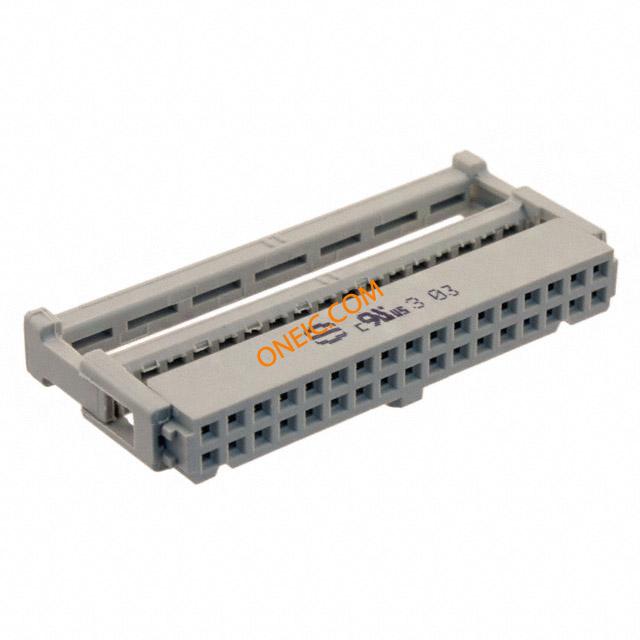

09185347813
| Manufacturer | |
| Description | SEK-18 SV FE TYPA ZGL 34P PL3 DIN 41612 Connectors 34P FEMALE IDC SKT W/ STRAIN RELIEF IDC connector 34-pin strain relief F Headers & Wire Housings 34P FEMALE IDC SKT W/ STRAIN RELIEF Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount IDCCONNECTOR34-PINF Harting 2行 34路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 09 09-18-534-7813 18 534 7813 | Product Category | Headers & Wire Housings |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Compliant | ||
Electrical
| Current Rating (Max) | 2 A | ||
Mechanical
| Depth | 7.2 mm | Pitch | 0.100" (2.54mm) |
| Height | 14.5 mm | Packaging | Bulk |
| Wire Type | Ribbon Cable | Wire Gauge | 26-28 AWG |
| Orientation | 直角 | Row Spacing | 0.100" (2.54mm) |
| Termination | IDT | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Mounting Style | Cable | Number of Rows | 2 |
| Length - Overall | 47.8 mm | Termination Rows | IDC |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 34 |
| Number of Positions | 34 | ||
Product Info
| Type | Ribbon Cable Connector | Gender | Female |
| Series | DIN 41612 | Features | Feed Through; Polarizing Key, Strain Relief |
| Product Type | Connectors | ||
