点击放大查看

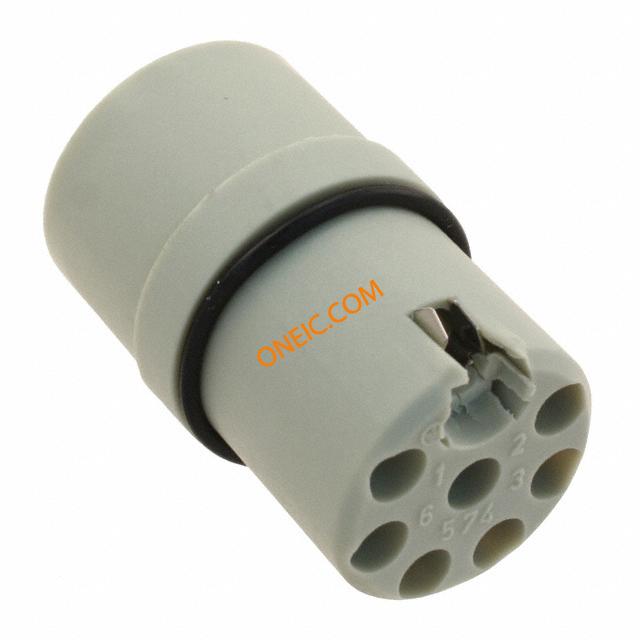

09150073021
| Manufacturer | |
| Description | Standard Circular Connector MALE INSERT METAL CRIMP TERM Standard Circular Connectors MALE INSERT METAL CRIMP TERM CONN HSG INSERT 8POS PIN Connector: circular; male; R15; PIN:7; w/o terminals |
| Category |
Business
| Part # Aliases | 007 09 09-15-007-3021 15 3021 | Product Category | Standard Circular Connector |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 10 A |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Weight | 9.5 g | Packaging | Bulk |
| Orientation | Keyed | Contact Type | Crimp |
| Connector Type | Insert for Male Contacts | Shell Material | Metal |
| Package Quantity | 1 | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 7 |
| Number of Positions | 8 | ||
Product Info
| Spg | 1 | Note | Contacts Not Provided |
| Series | Han R15 | Features | Insert Only, Requires Shell |
| Product Type | Connectors | Adapter Series | R15 |
| Number of Units | 1 | ||
Environmental
| Ingress Protection | IP65 - Dust Tight, Water Resistant | ||
