09140012763
| Manufacturer | |
| Description | HAN 200A AXIAL MOD FEMALE 25-40 Heavy Duty Power Connectors HAN 200A 4P FEMALE 25-40 MM2 HPPV4PowerEI-PFT48V/12A4pTHT Connector: rectangular; module; female; Han Modular 200A; PIN:1 Han-Modular Modules: Han 1 Mod-f-ax 200A female insert Harting HAN Modular 系列 1针 插座 电源连接器外壳 |
| Category |
Business
| Part # Aliases | 001 09 09-14-001-2763 14 2763 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 2 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 600V | Contact Resistance | 0.3mΩ |
| Current Rating (Max) | 200A | ||
Mechanical
| Color | Gray | Weight | 0.07 kg |
| Packaging | Bulk | Orientation | 直 |
| Mounting Type | screw terminal | Connector Type | Module |
| Contact Finish | Silver | Insertion Force | Female |
| Width - Overall | 2 | Contact Material | Copper Alloy |
| Housing Material | Polycarbonate (PC) | Package Quantity | 1 |
| Termination Rows | 螺钉 | Connector - Cable | module |
| Termination Style | Screw | Number of Contacts | 1 |
| Number of Positions | 1 | Plating - Thickness | 3µm |
| Material - Insulation | polycarbonate | Wire Gauge or Range - mm2 | 25...40mm2 |
| Contact Material - Plating | silver plated | ||
Product Info
| Spg | 1 | Type | CONNECTORS |
| Gender | Female | Series | Han |
| Product Type | Modules | Adapter Series | Han Modular 200A |
| Number of Units | 1 | Base Product Number | 0914 |
Environmental
| Mechanical Life | 500cycles | Operating Temperature | -40°C ~ 125°C |
Similar Parts

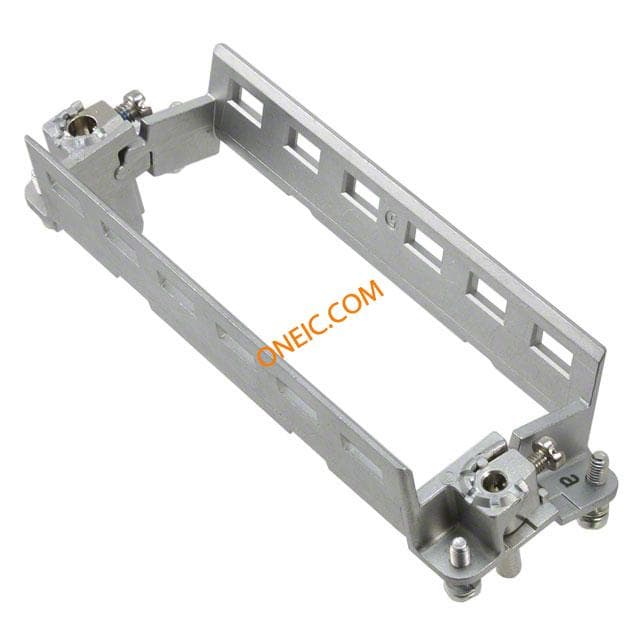

09140240313
Harting Technology Group
Connector Accessories 24 POS Female Hinged Frame Heavy Duty Power Connectors FRAME FOR 6 MODULES FOR 24P HOUSING a-f HINGED FRAME 24B FOR 6 MODULES Han(R) 6 insert module a-f housing frame HanModularFramefor6Modulea-f24housing6module Frame for modules; Han Modular; size 24B; a..f marks; Modules:6 Han-Modular Metal Frames: Han Modular frame 24 housing 6 module a- Harting HAN Modular 系列 铰接框架 , 适用于标准 Han 护罩和外壳
09140060313
Harting Technology Group
Connector Accessories 2 POS Female Hinged Frame Heavy Duty Power Connectors FRAME FOR 2 MODULES FOR 6P HOUSING a-b HINGED FRAME 6B FOR 2MOD (A..B) 2 module ab orientation modular frame HeavyDutyPowerConnectorsFRAMEFOR2MODULESFOR6PHOUSINGa-b Frame for modules; Han Modular; size 6B; a..b marks; Modules:2 Han-Modular Metal Frames: Han Modular frame 6 housing 2 module a-b Harting HAN Modular 系列 铰接框架 , 适用于标准 Han 护罩和外壳
09140100313
Harting Technology Group
Connector Accessories Female Insert Hinged Frame Heavy Duty Power Connectors FRAME FOR 3 MODULES FOR 10P HOUSING a-c HINGED FRAME 10B FOR 3MOD (A..C Han(R) 3 insert module a-c housing frame HanModularFramefor3Modulea-c10housing3module Frame for modules; Han Modular; size 10B; a..c marks; Modules:3 Han-Modular Metal Frames: Han Modular frame 10 housing 3 module a- Harting HAN Modular 系列 铰接框架 , 适用于标准 Han 护罩和外壳

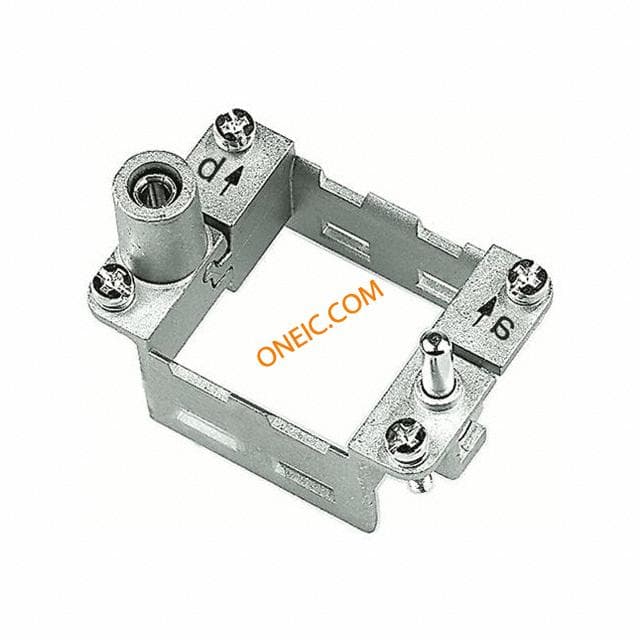

09140060303
