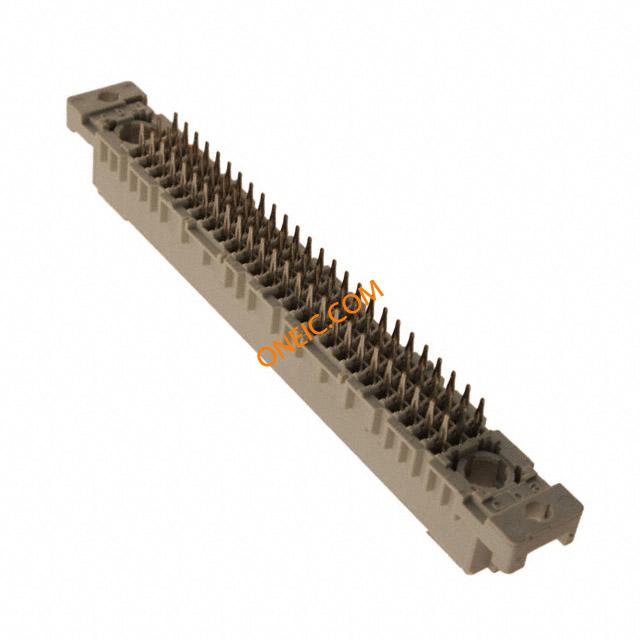

09032786830
| Manufacturer | |
| Description | DIN 41612 Connectors DIN-SIGNAL M FLAT78+2FP-4,5C1-2 DIN-SIGNAL M FLAT78+2FP-4,5C1-2 |
| Category |
Business
| Part # Aliases | 03 09 09-03-278-6830 278 6830 | Standard Package | 1 |
| Factory Pack Quantity | 20 | ||
Compliance
| Material Flammability Rating | UL94 V-0 | ||
Mechanical
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Termination | Press-Fit | Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets | Number of Rows | 3 |
| Number of Positions | 80 (78 + 2 Coax, Fiber Optic or Power) | Material - Insulation | Thermoplastic, Glass Filled |
Product Info
| Style | M-flat | Number of Positions Loaded | 78 |
Environmental
| Level, Class | 2 | ||
