点击放大查看

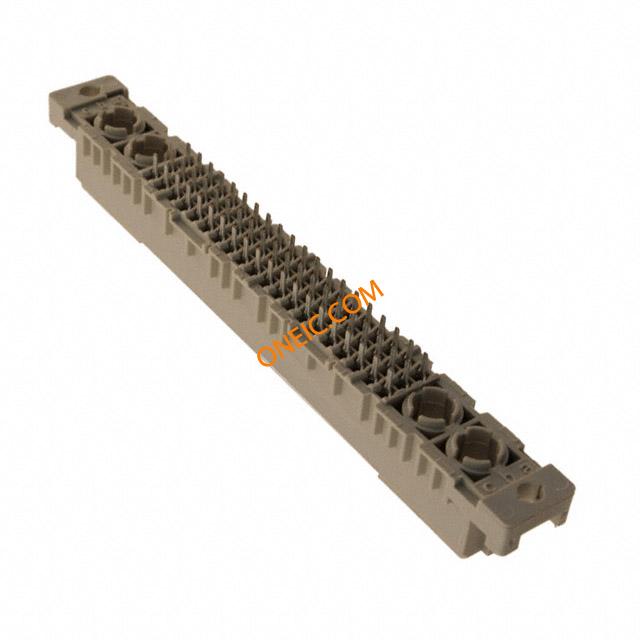

09032606804
| Manufacturer | |
| Description | DIN-SIGNAL M60+4FS-2,9C1-2 DIN 41612 Connectors 60+4 POS TYPE M FML SLDR STANDARD PCB DIN connector Type M 60 + 4 F PCBDINconnectorTypeM60+4F Harting 60 + 4 路, M型 C2等级 a/b/c 直向 DIN 41612 插座, 焊接端接 |
| Category |
Business
| Part # Aliases | 03 09 09-03-260-6804 260 6804 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Orientation | 直 | Termination | Solder |
| Length - Tail | 2.9 mm | Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold over Nickel |
| Number of Rows | 3 | Termination Rows | 焊接 |
| Termination Style | Solder Pin | Number of Contacts | 64 |
| Number of Positions | 64 (60 + 4 Coax, Fiber Optic or Power) | Material - Insulation | Thermoplastic, Glass Filled |
Product Info
| Type | M | Style | M |
| Gender | Female | Series | har-bus |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles |
| Outlet Types and Quantity | A/b/c | Number of Positions Loaded | 60 |
Environmental
| Ratings | C2 | Level, Class | 2 |
