点击放大查看

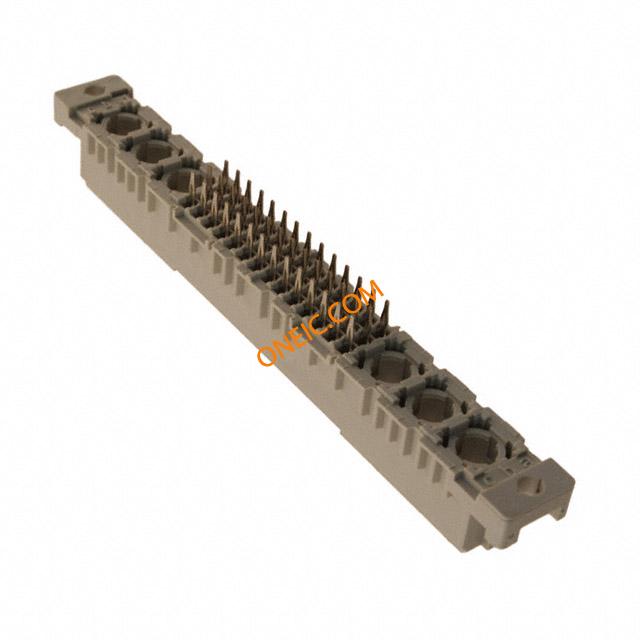

09032426830
| Manufacturer | |
| Description | DIN-SIGNAL MFLAT42+6FP-4,5C1-2 DIN 41612 Connectors DINSIGNAL TYPE M FLAT,FEMALE CONTACTS |
| Category |
Business
| Part # Aliases | 03 09 09-03-242-6830 242 6830 | Standard Package | 1 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 2 A | ||
Mechanical
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Termination | Press-Fit | Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets | Number of Rows | 3 |
| Termination Style | Press Fit | Number of Contacts | 42 + 6 |
| Number of Positions | 48 (42 + 6 Coax, Fiber Optic or Power) | Material - Insulation | Thermoplastic, Glass Filled |
Product Info
| Type | M | Style | M-flat |
| Series | DIN 41612 | Product Type | Receptacles |
| Number of Positions Loaded | 42 | ||
Environmental
| Level, Class | 2 | ||
