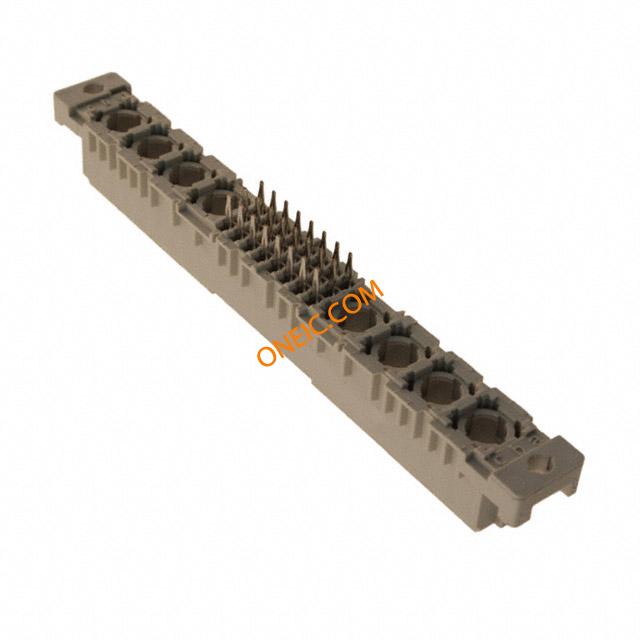

09032246830
| Manufacturer | |
| Description | DIN-SIGNAL MFLAT24+8FP-4,5C1-2 DIN 41612 Connectors DIN-SIGNAL MFLAT24+8FP-4,5C1-2 |
| Category |
Business
| Part # Aliases | 03 09 09-03-224-6830 224 6830 | Standard Package | 1 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 2 A | ||
Mechanical
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Termination | Press-Fit | Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Number of Rows | 3 | Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Solder |
| Number of Contacts | 64 | Number of Positions | 32 (24 + 8 Coax, Fiber Optic or Power) |
| Material - Insulation | Thermoplastic, Glass Filled | ||
Product Info
| Type | C | Style | M-flat |
| Product Type | Receptacles | Number of Positions Loaded | 24 |
Environmental
| Level, Class | 2 | Operating Temperature | - 55 C to + 125 C |
