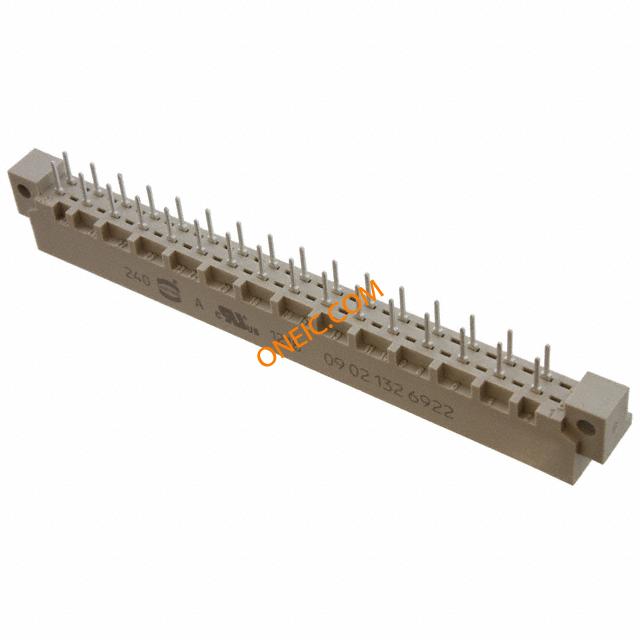

09021326922
| Manufacturer | |
| Description | DIN-SIGNAL B032POS MS-3,0C1-2 DIN 41612 Connectors DIN-SIGNAL B032MS-3,0C1-2 Socket; DIN 41612,type B; male; PIN:32; THT; straight; gold plated
sale |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 02 09 09-02-132-6922 132 6922 | Standard Package | 1 |
| Factory Pack Quantity | 20 | ||
Compliance
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Pitch | 0.100" (2.54mm) | Weight | 0.01 kg |
| Packaging | Bulk | Orientation | straight |
| Termination | Solder | Lead Spacing | len. 3mm |
| Mounting Type | Through Hole | Connector Type | Header, Male Pins |
| Number of Rows | 2 | Package Quantity | 20 |
| Connector - Cable | socket | Number of Positions | 64 |
| Material - Insulation | Thermoplastic, Glass Filled | Contact Material - Plating | gold plated |
| Material - Housing & Prism | thermoplastic | 1st Connector Mounting Feature | a+b every second terminal |
Product Info
| Spg | 20 | Style | B |
| Number of Units | 1 | Number of Positions Loaded | 32 |
Environmental
| Level, Class | 2 | Mechanical Life | 400cycles |
| Operating Temperature | -55...125°C | ||
