19340030421
| Manufacturer | |
| Description | HAN 3HVE-GG-M25 HOOD Heavy Duty Power Connectors METAL HOOD HAN 10B 2 LVR LCKING HAN 3HVE-GG-M25 CONN HOOD TOP ENTRY SZ10B M25 Enclosure: for Han connectors; Han; size 10B; for cable; straight Harting HAN HV E 系列 电源连接器 |
| Category |
Business
| Part # Aliases | 003 019 019-34-003-0421 0421 34 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Mechanical
| Size | 10B | Weight | 0.12 kg |
| Packaging | Bulk | Orientation | straight |
| Thread Size | M25 | Bushing Thread | M25 |
| Connector Type | Hood | Housing Finish | Powder Coated |
| Mounting Style | for cable | Package / Case | size 10B |
| Locking Feature | for double latch | Housing Material | Aluminum, Die Cast |
| Package Quantity | 1 | Size / Dimension | 2.858" L x 1.693" W x 1.772" H (72.60mm x 43.00mm x 45.00mm) |
| Supplier Device Package | for Han connectors | Material - Housing & Prism | aluminium alloy |
Product Info
| Spg | 1 | Type | 连接器护罩 |
| Style | Top Entry | Series | * |
| Product Type | Inlets | Lock Location | Locking Clip on Base Bottom |
| Adapter Series | Han | Number of Units | 1 |
| Base Product Number | 1934 | ||
Environmental
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Operating Temperature | -40°C ~ 125°C |
Similar Parts

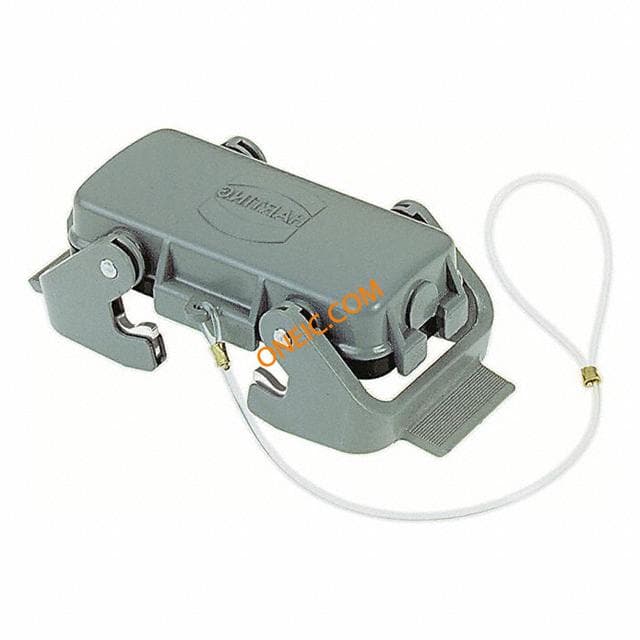

09300105423
