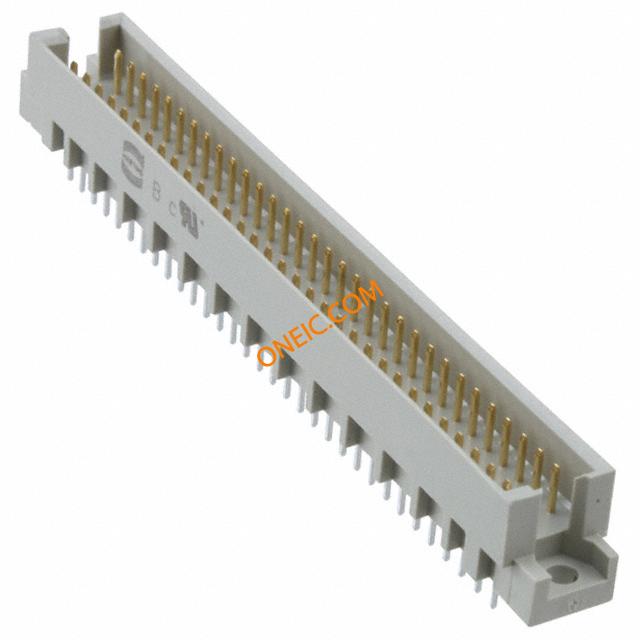

09731646903
| Manufacturer | |
| Description | Conn DIN 41612 M 64 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 64P 2A MALE STR SLDR DIN-SIGNAL R064MS-4,0C1-2 64 way DIN41612 R type plug,4mm solder BackPlaneConnector;64;2A(Max.);Male;StraightSolderPin;4mm Harting 64 路 2.54mm 节距, R型 C2等级, 2 行 a/c 直向 DIN 41612 插头, 焊接端接 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 09 09-73-164-6903 164 6903 73 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | IEC60603-2 | ||
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Depth | 11.1 mm | Pitch | 0.100" (2.54mm) |
| Height | 11.6 mm | Length | 4mm |
| Packaging | Bulk | Shell Size | R |
| Orientation | 直 | Termination | Solder |
| Weight (g): | 12.20163 | Length - Pin | 4mm |
| Length - Tail | 4 mm | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Header, Male Pins |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Pins | 64 | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 95 mm | Primary Material | Industrial |
| Termination Rows | 焊接 | Pin Hole Diameter | 2.54mm |
| Termination Style | Solder Pin | Number of Contacts | 64 |
| Number of Positions | 96 | Mounting Hole Diameter | 2.8mm |
| Contact Finish Thickness | Flash | ||
Product Info
| Type | DIN 41612 | Style | R |
| Gender | M | Features | Backplane |
| CAD Drawing | 3D CAD Model | Outlet Types and Quantity | A/c |
| Number of Positions Loaded | 64 | ||
Environmental
| Ratings | C2 | Distance | 1.2mm(Min.) |
| Level, Class | 2 | ||
