点击放大查看
09370240301
| Manufacturer | |
| Description | Connector Accessories Bulkhead Housing Heavy Duty Power Connectors BULKHEAD MOUNTING HAN 24B 2 LVR LCKING HAN M BULKHEAD HOUSING BLACK Han M Housings: Han M Bulkhead Housing Black Harting HAN M 系列 电源连接器外壳 , 隔板 |
| Category |
Business
| Part # Aliases | 024 0301 09 09-37-024-0301 37 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Mechanical
| Size | 24B | Depth | 56.8 |
| Packaging | Bulk | Housing Color | Black |
| Mounting Type | 隔板 | Connector Type | Base - Panel Mount |
| Housing Finish | Epoxy Powder Paint | Mounting Style | Straight |
| Housing Material | Aluminum, Die Cast | Length - Overall | 140 |
| Size / Dimension | 5.512" L x 1.709" W x 1.165" H (140.00mm x 43.40mm x 29.60mm) | ||
Product Info
| Type | Bulkhead Housing | Style | Bottom Entry |
| Series | Han M | UNSPSC Code | 31163100 |
| Product Type | Housings | Lock Location | Locking Clip on Base Bottom |
| Base Product Number | 0937 | ||
Environmental
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Operating Temperature | -40°C ~ 125°C |
Similar Parts
09330242702
Harting Technology Group
Conn Housing F 25 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN E 24P F CRIMP ORDER CONTACTS SEP HAN E 24 POS. F INSERT CRIMP RECTANGULAR HAN INSERT, FEM, 24WAY CRIMP HANE24POS.FINSERTCRIMP Connector: HAN; female; Han E; PIN:24; 24+PE; size 24B; crimped; 16A Han E Female Insert- Crimp: Han E 24 Position F Insert Crimp
09210643001
Harting Technology Group
Conn Housing M 65 POS Crimp ST Heavy Duty Power Connectors HAN D 64P M CRIMP ORDER CONTACTS SEP HAN D 64 POS. M INSERT CRIMP Han(R) D 64P+E male insert, 250Vac RECTANGULAR HAN INSERT, PLUG 64WAY CRIMP Insert;250V;10A;Male;64;RoHSCompliant;HanD,HanDAVSeries Connector: HAN; male; Han D; PIN:64; 64+PE; size 24B; w/o terminals Han D Male Insert: Han D 64 Position M Insert Crimp Harting Han D 系列 4行 64针 插头 电源连接器
09380122701
Harting Technology Group
Conn Rectangular F 4Power/8Signal/2Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN K 4+8P F SCREW SCREW TERMINATION HAN K 4/8 POS. F INSERT SCREW Connector; Female Insert; 24 Positions Connector,FemaleInsert,24Positions Connector: HAN; female; Han Com; PIN:12(4+8); size 24B; Inom 1:80A Han K Female Insert: Han K 4/8 Position F Insert Screw Harting Han Com 系列 12针 12P+E极 插座 插片

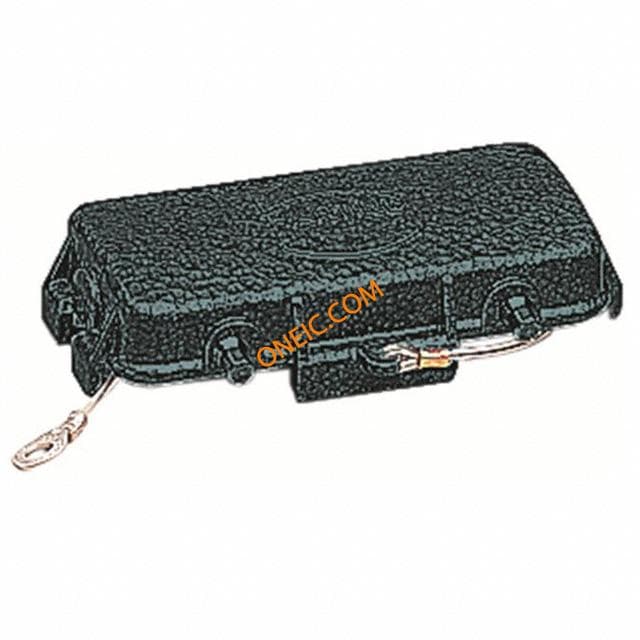

09370245405
