09320006204
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Heavy Duty Power Connectors HAN HsC FEMALE CRIMP 1.5mm2 CROSS SECTION HAN HSC FEMALE CRIMP CONT 16 AWG Han HsC Female Crimp Contact 16 AWG Conn Contact F 1 POS ST 1 Terminal 1 Port HANHSCFEMALECRIMPCONTACT16AWG Contact; female; 1.5mm2; Han Com; silver plated; crimped; 40A; 3mΩ Harting Han Contacts 系列 母座 压接触点 , 额定电流 40A/ 830 V, 适用于大负荷电源连接器 |
| Category |
Business
| Part # Aliases | 000 09 09-32-000-6204 32 6204 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 830 V | Contact Resistance | 1 |
| Current Rating (Max) | 40A | ||
Mechanical
| Depth | 6 mm | Pitch | Not Required mm |
| Height | 10 | Weight | 2.58 g |
| Diameter | 6 mm | Packaging | Bulk |
| Wire Gauge | 16 AWG | Shield Type | No |
| Termination | Crimp | Weight (g): | 2.60000 |
| Contact Type | Power | Mounting Type | Cable Mount |
| Pin or Socket | Socket | Connector Type | Connector Rectangular |
| Contact Finish | Silver | Mounting Style | Through Hole |
| Insertion Force | Female | Contact Material | Copper Alloy |
| Housing Material | Not Required | Length - Overall | 23.4 |
| Package Quantity | 25 | Connector - Cable | contact |
| Termination Style | Crimp | Number of Contacts | 1 POS |
| Contact Termination | Crimp | Contact Finish Thickness | 118.1µin (3.00µm) |
| Wire Gauge or Range - AWG | 16 | Wire Gauge or Range - mm2 | 1.5mm2 |
| Contact Material - Plating | silver plated | ||
Product Info
| Spg | 25 | Type | Machined |
| Gender | SKT | Series | Han-Com |
| Product Type | Contacts | Accessory Type | Crimp Contact |
| Adapter Series | Han Com | Measuring Range | Han 40A 压接、Han C、Han CC、Han CD、Han Com、Han HSC |
| Number of Ports | 1 Port | Number of Units | 1 |
| For Use With/Related Products | Heavy Duty Power Connector | ||
Environmental
| Mechanical Life | 500cycles | Operating Temperature | 125 |
Similar Parts
09990000110
HARTING
Crimpers HAN CRIMP TOOL FOR C D E CONTACTS Crimp Tool Han Hand Tools HAN CRIMP TOOL FOR C D E CONTACTS HAN HAND CRIMP TOOL Parallel action crimp tool for HAN conn HartingCrimpTool Tool: for crimping; terminals; 0.14÷4mm2; 26÷12AWG; Series: Han Han Tools: Han Hand Crimp Tool Harting Crimp Contact 压接工具 , 适用于26 → 12 AWG 线规格
09990000001
HARTING
Crimpers HAN C CRIMP TOOL Crimping Tool For Contacts Han-Yellock Hand Tools HAN C CRIMP TOOL BUCHANAN CRIMPING TOOL. HAN Power Tool; Industrial; Crimp; Single; 6.3 mm PowerTool,Industrial;Crimp;Single;6.3mm Tool: for crimping; terminals; 0.14÷2.5mm2; Series: Han E Han Tools: Buchanan Crimping Tool Han Harting Han D 系列 压接工具 , 适用于Han D 触点
09140073101
Harting Technology Group
Han Cd - Modul Sc Female Inser Heavy Duty Power Connectors MOD FOR FEMALE CON HAN CD MODULE HAN CD MODULE CRIMP FEMALE Connector: HAN; module; female; Han Modular CD; PIN:7(3+4); 830V Han-Modular Modules: Han 3/4 Mod - F-c Harting HAN Modular 系列 1行 3针 插座 电源连接器外壳

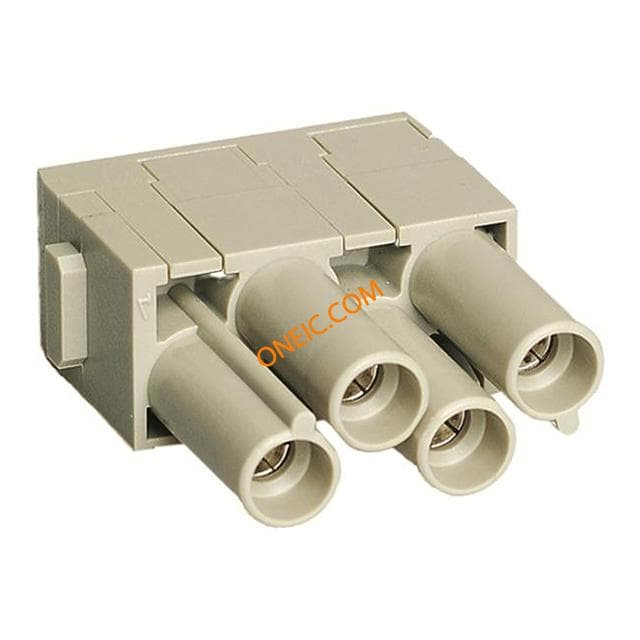

09140043141
Harting Technology Group
Conn Housing F 4 POS Crimp ST Cable Mount Heavy Duty Power Connectors MOD FOR FEMALE CON HAN CC 4 CRIMP CON HAN CC PROTECT MOD CRIMP FEMALE Han Power Connector 4 Mod Female 40A HAN4MODF-C40A Connector: HAN; module; female; Han Modular CC Protected; PIN:4 Han-Modular Modules: Han 4 Mod F-c 40A Harting HAN Modular 系列 4P+E 4 路 母座 受保护模块 , 额定电流 40A/ 830 V, 适用于大负荷电源连接器
09380423101
Harting Technology Group
Conn Housing F 6Power/36Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN K 6/36 16B FEMAL ORDER CONTACTS SEP HAN K6/36 INSERT FEMALE HANK/36insertfemale FEMALEINSERT Han HSC Female Insert: Han K6/36 insert female Harting Han K 系列 43针 插座 电源连接器

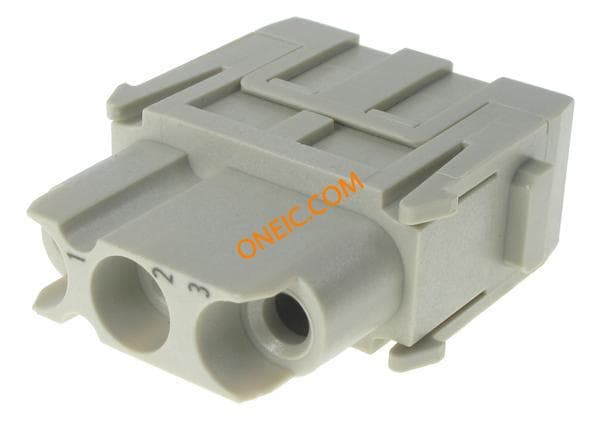

09140033101
Harting Technology Group
Conn Housing M 3 POS Crimp ST Heavy Duty Power Connectors 3P FEMALE MODULE HAN MODULAR C HAN C MODULE, CRIMP FEMALE HanC female contact module,3 pos,5mm HanCModular;FemaleInsert;3CrimpContacts;CableDia7.5mm;40A;400/690V Connector: HAN; module; female; Han Modular C; PIN:3; crimped; 40A Han-Modular Modules: Han Modular 3 C Module female 40A Harting HAN Modular 系列 3 行 3 路 母座 RJ45-Rangierfeld , 额定电流 40A/ 690 V

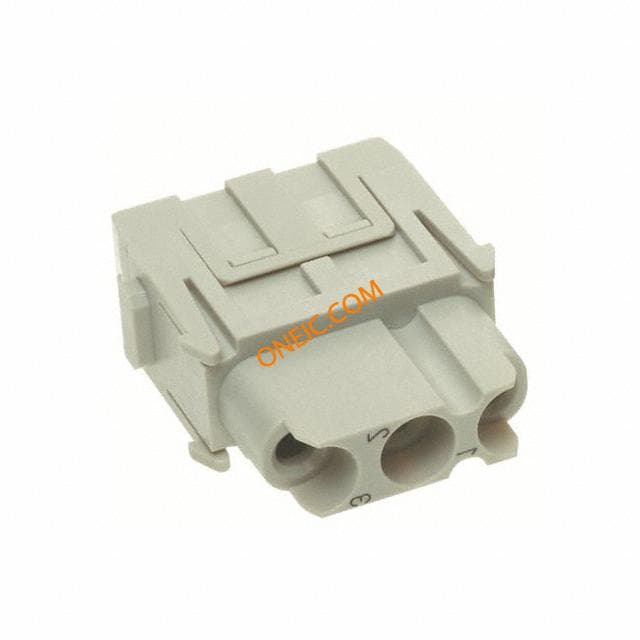

09140033102
Harting Technology Group
Conn Housing F 3 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN C-MODULE 3P FEM 0-7.5 mm CABLE DIA HAN C MODULE, CRIMP FEMALE-7.5MM HanC female contactmodule,3pos,7.5mm HANMODULAR3CMODULEFEMALE40AFOR7. Connector: HAN; module; female; Han Modular C; PIN:3; crimped; 40A Han-Modular Modules: Han Modular 3 C Module female 40A for 7. Harting HAN Modular 系列 3 路 母座 RJ45-Rangierfeld , 额定电流 40A/ 500 V
09320123101
Harting Technology Group
Conn Rectangular F 14 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN K 12+2P 16B FEM ORDER CONTACTS SEP HAN HSC 12 POS. FEMALE INSERT Insert; Industrial Power; Standard Material (Insert); Han Com Series Insert,IndustrialPower;StandardMaterial(Insert);HanComSeries Han HSC Female Insert: Han HsC 12 Position Female Insert Harting Han Com 系列 3行 12针 插座 电源连接器
09120063141
Harting
HAN Q 4/2 FEMALE CRIMP TERM Heavy Duty Power Connectors FEMALE INSERT HAN Q4/2 CRIMP TERM FEMALEINSERTHANQ4/2 Han Q Female Insert: Han Q 4/2 Female Insert Crimp Term Harting Han Q 系列 3行 7针 插座 电源连接器

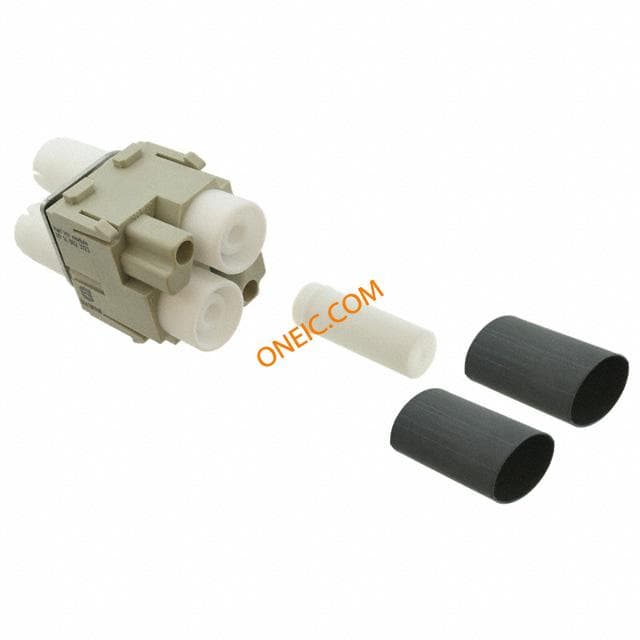

09140023123
Harting
HAN HV MODULE, 40A CRIMP FEMALE Heavy Duty Power Connectors Han HV module 40A crimp female Han-Modular Modules: Han HV module, 40A crimp female

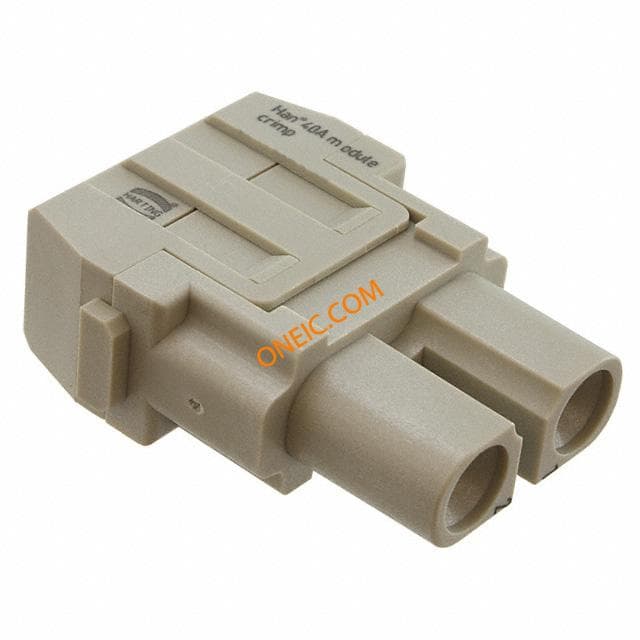

09140023102
