09200162613
| Manufacturer | |
| Description | Conn Rectangular M 32 POS Screw ST Panel Mount Heavy Duty Power Connectors HAN 16A 17-32 MALE SCREW TERMINATION HAN A 16 POS. M INSERT SCREW Connector; Male Insert; 32 Contacts Connector,MaleInsert,32Contacts Connector: HAN; male; Han A; PIN:16; 16+PE; size 32A (2 x 16A) Han A Male Insert-Screw: Han A 16 Position M Insert Screw 17-32 Harting Han-A 系列 2 行 16 路 公插 插片 , 额定电流 16A/ 250 V |
| Category |
Business
| Part # Aliases | 016 09 09-20-016-2613 20 2613 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage - Test | 4kV | Voltage Rating | 600V |
| Contact Resistance | 3mΩ | Current Rating (Max) | 16A |
| Voltage - Input (Min) | 250VAC | Connector - Voltage Input | contact layout: 17-32 |
Mechanical
| Size | 32A | Color | Gray |
| Depth | 22.8 | Height | 33 |
| Weight | 0.07 kg | Packaging | Bulk |
| Termination | Screw | Weight (g): | 66.00000 |
| Mounting Type | Straight | Connector Type | Insert |
| Contact Finish | Silver | Number of Rows | 2 |
| Package / Case | size 32A (2 x 16A) | Insertion Force | Male |
| Contact Material | Copper Alloy | Housing Material | Polycarbonate (PC) |
| Length - Overall | 72.4 | Package Quantity | 2 |
| Size / Dimension | 32A | Termination Style | Screw |
| 1st Contact Gender | M | Number of Contacts | 32 |
| Number of Positions | 16+Ground | Plating - Thickness | 3µm |
| Material - Insulation | polycarbonate | Wire Gauge or Range - mm2 | 1...2.5mm2 |
| Contact Material - Plating | silver plated | 1st Connector Mounting Feature | 16+PE |
Product Info
| Spg | 2 | Type | Rectangular |
| Gender | Male | Series | HAN-A |
| Product Type | Inserts | Accessory Type | 插入式螺钉 |
| Adapter Series | Han A | Number of Units | 1 |
Environmental
| Mechanical Life | 500cycles | Operating Temperature | -40°C ~ 125°C |
Similar Parts

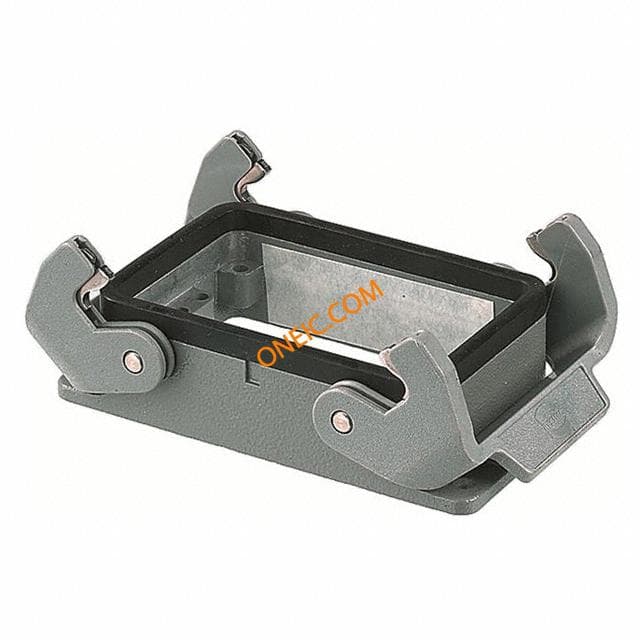

09200320301
Harting Technology Group
Connector Accessories 33 POS Housing Metal Heavy Duty Power Connectors HAN 32A BULKHEAD MNT 2 LEVERS METAL HAN A BASE PANEL 2 LEVERS Han(R) panel mount housing,Size 32A BULKHEAD HOUSING, SIZE 32A, METAL HOUSING,HAN32A,PANELMOUNT,DOUBLELEVER Enclosure: for Han connectors; Han; size 32A (2 x 16A); IP65 Han A Housings: Han A Base Panel 2 Levers Harting Han A 系列 电源连接器
09200320521
Harting
HAN A HOOD SIDE HC 4 PEGS PG 29 Heavy Duty Power Connectors HAN 32A PG29 SID ENT HAN32AHood(SideEntry,DoubleLeverPeg)PGThread Han A Hoods: Han A Hood Side Entry HC 4 Pegs PG 29 Harting Han A 系列 侧入 电源连接器

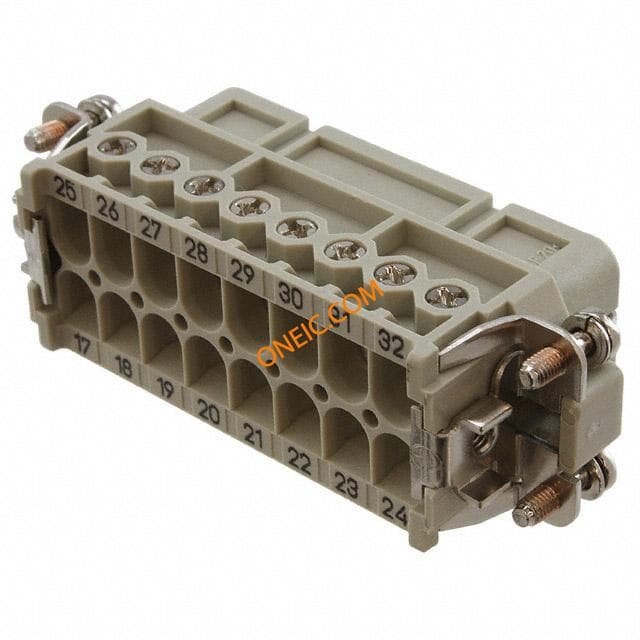

09200162813
Harting
HAN A 16 POS. F INSERT SCREW Heavy Duty Power Connectors HAN 16A 17-32 FML SCREW TERMINATION Insert; Industrial Power Insert; Standard Material (Insert); Han A Series Insert,IndustrialPowerInsert;StandardMaterial(Insert);HanASeries Connector: HAN; female; Han A; PIN:16; 16+PE; size 32A (2 x 16A) Han A Female Insert-Screw: Han A 16 Position F Insert Screw 17-32 Harting Han-A 系列 2 行 16 路 母座 插片 , 额定电流 16A/ 250 V

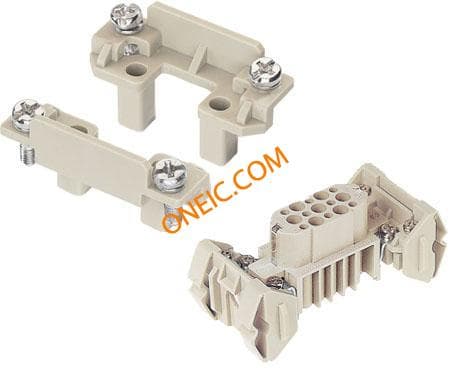

09200009933
Harting
Heavy Duty Power Connectors RAIL FIXING 10A HAN-SNAP ADAPTER HAN A IN HAN SNAP Han Snap: Adapter Han A in Han Snap
