09200160321
| Manufacturer | |
| Description | Connector Accessories 20 POS Housing Metal Heavy Duty Power Connectors HAN 16A BULKHEAD MT THERMOPLASTIC COVER HAN A BASE PANEL 1 LEVER LOCK Low type panel mount housing w/cover,16A HANABASEPANEL1LEVERLOCKABLETHERMO Enclosure: for Han connectors; Han; flange (4 holes), on panel Han A Housings: Han A Base Panel 1 Lever Lockable thermo Harting Han A 系列 电源连接器 |
| Category |
Business
| Part # Aliases | 016 0321 09 09-20-016-0321 20 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 16 A | Connector - Voltage Input | with cover |
Mechanical
| Size | 16A | Weight | 0.09 kg |
| Packaging | Bulk | Weight (g): | 92.00000 |
| Housing Color | Gray | Mounting Type | flange (4 holes), on panel |
| Connector Type | Base - Panel Mount with Cover | Housing Finish | Powder Coated |
| Package / Case | size 16A | Insertion Force | Female |
| Locking Feature | with lock | Housing Material | Aluminum, Die Cast |
| Length - Overall | 96 | Size / Dimension | 3.780" L x 1.140" W x 1.024" H (96.00mm x 29.00mm x 26.00mm) |
| Termination Style | Cable | Number of Contacts | 20 |
| Supplier Device Package | for Han connectors | Material - Housing & Prism | aluminium alloy |
Product Info
| Type | Housing | Style | Bottom Entry |
| Series | Han A | CAD Drawing | 3D CAD Model |
| Product Type | Housings | Lock Location | Side Clip on Base Bottom |
| Adapter Series | Han | Number of Units | 1 |
Environmental
| Ingress Protection | IP65 - Dust Tight, Water Resistant | Operating Temperature | -40°C ~ 125°C |
Similar Parts
09200165425
Harting Technology Group
None Heavy Duty Power Connectors PROTECTION COVER HAN 16A 1 LVR LCKING HAN A PROTECT COVER DIE CAST HanAProtectCoverDieCastforBase Protection cover; Han; size 16A; for latch; metal Han A Accessories: Han A Protect Cover Die Cast for Base
09200162612
Harting Technology Group
Conn Housing M 17 POS Crimp ST Heavy Duty Power Connectors HAN A 16P M SCREW SCREW TERMINATION HAN A 16POS. M INSERT SCREW Han A 16 2 Male Straight, Panel Mount 16A,600V Insert;250V;16A;Male;16;RoHSCompliant;HanASeries;16AProductSize Connector: HAN; male; Han A; PIN:16; 16+PE; size 16A; 16A; 250V; 1mΩ Han A Male Insert-Screw: Han A 16 Position M Insert Screw Harting Han A 系列 2行 16针 16P+E极 插头 电源连接器插件 , 面板安装
09200162812
Harting Technology Group
Conn Housing F 17 POS Crimp ST Heavy Duty Power Connectors HAN A 16P F SCREW SCREW TERMINATION HAN A 16 POS. F INSERT SCREW Han A 16 2 Female Straight, Panel Mount 16A,600V PowerConnectorInsert;Female;16 Connector: HAN; female; Han A; PIN:16; 16+PE; size 16A; 16A; 250V Han A Female Insert-Screw: Han A 16 Position F Insert Screw Harting Han A 系列 2行 16针 16P+E极 插座 电源连接器插件 , 面板安装
09700202817
Harting Technology Group
Conn Rectangular F 20 POS Crimp ST Panel Mount Heavy Duty Power Connectors FEMALE INSERT HAN 16A 20 POLE PCAF 20 POS. F INSERT SCREW HAN FEMALE INSERT, 20WAY, SCREW INSERT FEMALE 20POS SCREW Staf20Pos.FInsertScrew Connector: rectangular; male; Han Staf; PIN:20; size 16A; 10A; 50V Staf Insert F: Staf 20 Position F Insert Screw
09200163111
Harting Technology Group
Conn Housing F 16 POS Crimp ST Panel Mount Heavy Duty Power Connectors FEMALE INSERT HAN 32A CRIMP TERM HAN A 16 POS. F INSERT CRIMP INSERT FEMALE 16POS+1GND CRIMP HanA,16Position,Female,Insert,Crimp Harting Han-A 系列 2 行 16 路 母座 插片 , 额定电流 16A/ 250 V
09200163101
Harting Technology Group
Connector Accessories Female Insert Heavy Duty Power Connectors FEMALE INSERT HAN 16A CRIMP TERM HAN A 16 POS. F INSERT CRIMP HANA16POS.FINSERTCRIMP Connector: HAN; female; PIN:16; 16+PE; size 16A; 250V Han A Female Insert-Crimp: Han A 16 Position F Insert Crimp Harting Han-A 系列 2 行 16 路 母座 插片 , 额定电流 16A/ 250 V
09210253001
Harting Technology Group
Connector Accessories Male Insert 25 POS Heavy Duty Power Connectors HAN D 25P M CRIMP ORDER CONTACTS SEP HAN D 25 POS. M INSERT CRIMP Han D 25 Male 2A,600V Insert;250V;10A;Male;25;RoHSCompliant;HanD,HanDAVSeries Connector: HAN; male; Han D; PIN:25; 25+PE; size 16A; w/o terminals Han D Male Insert: Han D 25 Position M Insert Crimp Harting Han D 系列 25P+E 3 行 25 路 公插 触点插件 , M3 x 10螺纹, 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09200163001
Harting Technology Group
Conn Housing M 17 POS Crimp ST Heavy Duty Power Connectors MALE INSERT HAN 16A CRIMP TERM HAN A 16 POS. M INSERT CRIMP HanA16Pos.MInsertCrimp Connector: HAN; male; PIN:16; 16+PE; size 16A; 250V Han A Male Insert-Crimp: Han A 16 Position M Insert Crimp Harting Han-A 系列 2 行 16 路 公插 插片 , 额定电流 16A/ 250 V
09700202622
Harting Technology Group
STAF 20-STI-S/MALE INSERT (F) Heavy Duty Power Connectors MALE INSERT HAN 16A 20 POLE PCAF 20 POS. M INSERT SCREW RECTANGULAR HAN INSERT, PLUG 20WAY SCREW INSERT MALE 20POS SCREW Connector: rectangular; female; Han Staf; PIN:20; size 16A; 10A Staf Insert M: Staf 20 Position M Insert Screw
09000005225
Harting

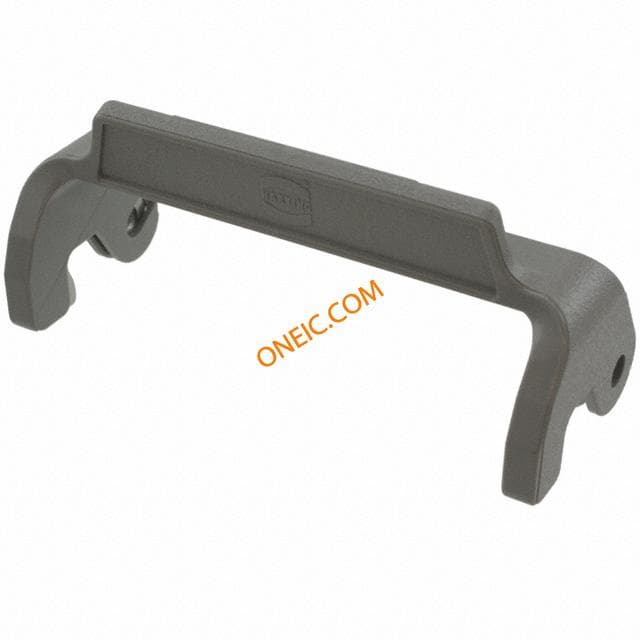

HAN 16A THERMOPLASTIC LEVER Heavy Duty Power Connectors LOCKING LEVERS HAN EASY LOCK HAN16ATHERMOPLASTICLEVER Harting Han Easy Lock 系列 锁定杆 , 适用于大负荷电源连接器
