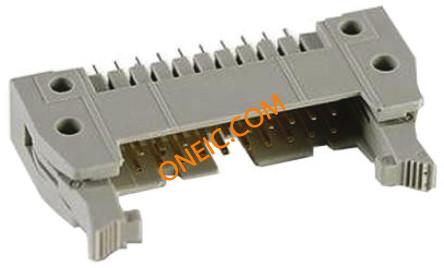

09185207904
| Manufacturer | |
| Description | Conn Shrouded Header M 20 POS 2.54mm Solder ST Thru-Hole DIN 41612 Connectors 20P MALE STRT IDC LONG LEVERS SEK-18 SV MA STD STR29 RLG 20P Harting SEK Series 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 1A ConnectorSEK-18solder20-way Harting SEK 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 1A |
Mechanical
| Color | Beige | Depth | 8.5 |
| Pitch | 0.100" (2.54mm) | Height | 25.75 |
| Packaging | Bulk | Orientation | 直 |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Fastening Type | Latch, Long/Eject Hooks |
| Number of Rows | 2 | Length - Overall | 45 |
| Termination Rows | 焊接 | Number of Contacts | 20 |
| Number of Positions | 20 | Contact Length - Mating | 0.240" (6.10mm) |
Product Info
| Type | Shrouded Header | Gender | M |
| Series | SEK | Coverage | 覆盖 |
| Number of Positions Loaded | All | ||
