点击放大查看
09120173001
| Manufacturer | |
| Description | Connector Accessories Male Insert Heavy Duty Power Connectors MALE INSERT 17 POLE CRIMP TERM HAN Q 17/0 MALE CRIMP TERM HANQ17/0MALEINSERTCRIMPTERM HANQ COMPACT MODULE MALE CRIMP 17+PE 10A/250V Harting Han Q 系列 电源连接器 |
| Category |
Business
| Part # Aliases | 017 09 09-12-017-3001 12 3001 | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 10A |
Mechanical
| Color | Gray | Depth | 25.9 |
| Height | 38.7 | Packaging | Bulk |
| Contact Type | Han® | Connector Type | Insert without Contacts |
| Housing Material | Polycarbonate (PC) | Length - Overall | 45.1 |
| Termination Style | Crimp | Number of Contacts | 17 |
| Number of Positions | 17 | ||
Product Info
| Type | Insert | Gender | Male |
| Series | Han Q | CAD Drawing | 3D CAD 模型 |
| Product Type | Inlets | ||
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Similar Parts
09150006123
Harting Technology Group
Contact PIN Crimp ST Heavy Duty Power Connectors HAN 10A MALE AWG 20 GOLD PLATED HAN D M CRIMP CONTACT AU AWG 20 Han-Com(R) crimp gold contact,0.5sq.mm HANDMCrimpContactAWG20 Contact; male; 0.5mm2; Han D; nickel plated, gold plated; crimped Han D Male Contact: Han D M Crimp Contact Au AWG 20 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09150006122
Harting Technology Group
Contact PIN Crimp ST Heavy Duty Power Connectors HAN D MALE 18 AWG CRIMP CONTACT HAN D M CRIMP CONTACT AU AWG 18 Han-Com(R) crimp gold contact,1sq.mm Conn Contact M 1 POS Crimp ST HAND(MaleCrimpContacts)18Awg Contact; male; 1mm2; Han D; nickel plated, gold plated; crimped Han D Male Contact: Han D M Crimp Contact Au AWG 18 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09150006124
Harting Technology Group
Contact PIN Crimp ST Heavy Duty Power Connectors HAN D MALE AWG 26-22 GOLD PLATED CRIMP HAN D M CRIMP CONT AU AWG26-22 HAN DM Crimp Contact AWG 26-22 Conn Contact M 1 POS Crimp ST HANDMCrimpContactAWG26-22 Contact; male; 0.14÷0.37mm2; Han D; nickel plated, gold plated Han D Male Contact: Han D M Crimp Contact Au AWG 26-22 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09120080527
Harting Technology Group
Connector Accessories Hood Metal Heavy Duty Power Connectors PLASTIC HOOD STD BLK 1 LVR LCKING HAN Q 8/0 HOOD SIDE PG 16
09150006121
Harting Technology Group
Contact PIN Crimp ST Heavy Duty Power Connectors HAN 10A MALE AWG 16 GOLD PLATED HAN D M CRIMP CONTACT AU AWG 16 Han-Com(R) crimp gold contact,1.5sq.mm Connector,MaleContact Contact; male; 1.5mm2; Han D; nickel plated, gold plated; crimped Han D Male Contact: Han D M Crimp Contact Au AWG 16 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09150006103
Harting Technology Group
Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN D MALE AWG 20 SILVER PLATED CRIMP HAN D M CRIMP CONTACT AWG 20 Han-Com(R) crimp pin contact,0.5sq.mm 09150006103 Connector;MaleInsert;SilverPlated20AWGCrimpContact;HanDDModular Contact; male; 0.5mm2; Han D; silver plated; crimped; 10A; 3um Han D Male Contact: Han D M Crimp Contact Ag 0,5 QMM-AWG 20 Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09150006105
Harting Technology Group
Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN 10A MALE AWG 18 SILVER PLATED HAN D M CRIMP CONTACT AG Han-Com(R) crimp pin contact,0.75sq.mm CRIMP PIN, HAN, 0.75MM HanDMCrimpContactAg Contact; male; 0.75mm2; Han D; silver plated; crimped; 10A; 3um Han D Male Contact: Han D M Crimp Contact Ag Harting Han Contacts 系列 公插 压接触点 , 额定电流 10A/ 250 V, 适用于大负荷电源连接器
09120173101
Harting Technology Group
Conn Housing F 17Power/1Ground POS Crimp ST Cable Mount Heavy Duty Power Connectors FEMALE INSERT 17 POLE CRIMP TERM HAN Q 17/0 FEMALE CRIMP TERM HANQ17/0FEMALEINSERTCRIMPTERM HANQ COMPACT MODULE FEMALE CRMP 17+PE 10A/250V Harting Han Q 系列 18针 插座 电源连接器 , 电缆安装

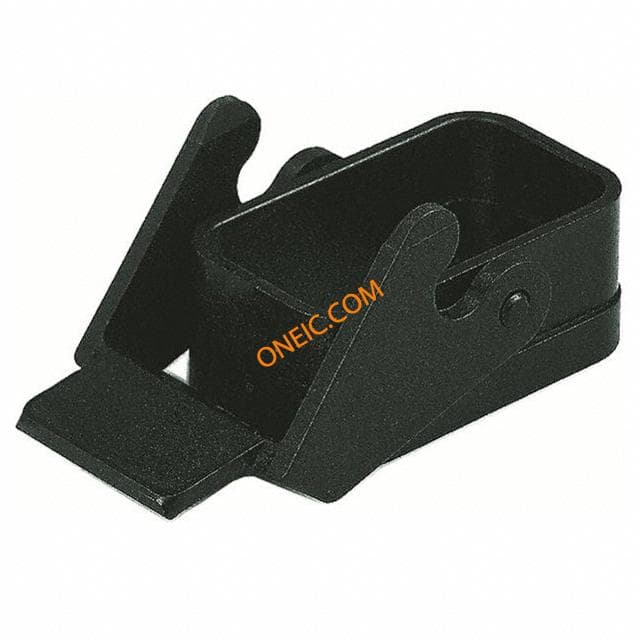

09120080327
