09061326931
| Manufacturer | |
| Description | Conn DIN 41612 M 32 POS 5.08mm Solder RA Thru-Hole DIN 41612 Connectors 32P 6A MALE R/A SLDR DIN-POWER F032MS-3,0C1-2 Connector DIN-Power solder 32-way m DIN-PowerF032MS-3,0C1-2 Socket; DIN 41612,type F; male; PIN:32; d+z; THT; angled 90°; 6A Harting 09 06 系列 32 路 2.54 mm, 5.08 mm 节距, F型 C2等级, 3 行 z/d, 直角 DIN 41612 插头, 焊接端接 |
| Category |
Business
| Part # Aliases | 06 09 09-06-132-6931 132 6931 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Contact Resistance | 15mΩ | Current Rating (Max) | 6A |
Mechanical
| Depth | 22 | Pitch | 0.200" (5.08mm) |
| Height | 14.7 | Weight | 0.02 g |
| Packaging | Bulk | Orientation | angled 90° |
| Termination | Solder | Lead Spacing | len. 3mm |
| Length - Tail | 3 mm | Mounting Type | Right Angle |
| Connector Type | Header, Male Pins | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 93.9 |
| Package Quantity | 20 | Termination Rows | a/c |
| Connector - Cable | socket | Termination Style | Solder Pin |
| Number of Contacts | 32 | Number of Positions | 48 (Power) |
| Material - Insulation | Thermoplastic, Glass Filled | Contact Finish Thickness | Flash |
| Contact Material - Plating | gold plated | Material - Housing & Prism | thermoplastic |
| 1st Connector Mounting Feature | d+z | ||
Product Info
| Spg | 20 | Type | DIN 41612 |
| Style | F | Gender | M |
| Series | 09 06 | Class Code | C2 |
| CAD Drawing | 3D CAD Model | Number of Units | 1 |
| Outlet Types and Quantity | Z/d | Number of Positions Loaded | 32 |
Environmental
| Ratings | C2 | Level, Class | 2 |
| Mechanical Life | 400cycles | Operating Temperature | +125°C |
Documents & Media
Similar Parts

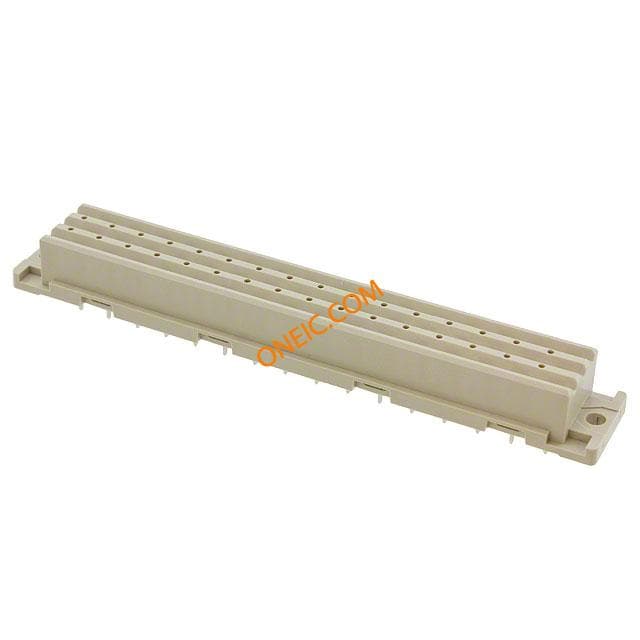

09062326893
HARTING
DIN 41612 Connectors DIN-POWER FLOW032FS-3,2C1-2 DIN-POWER FLOW032FS-3,2C1-2 Connector DIN-Power Flow solder 32-way f ConnectorDIN-PowerFlowsolder32-wayf Harting 09 06 系列 32 路 3.81 mm, 5.08 mm 节距, F型 C2等级, 3 行 z/d 直向 DIN 41612 插座, 焊接端接

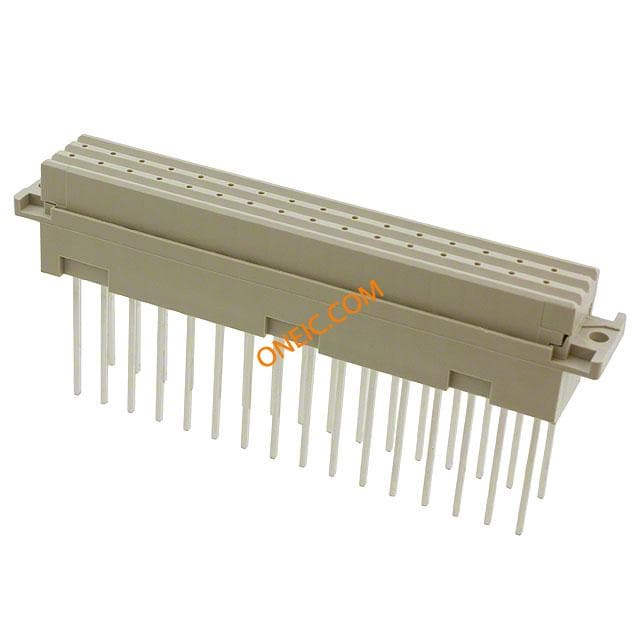

09062326831
