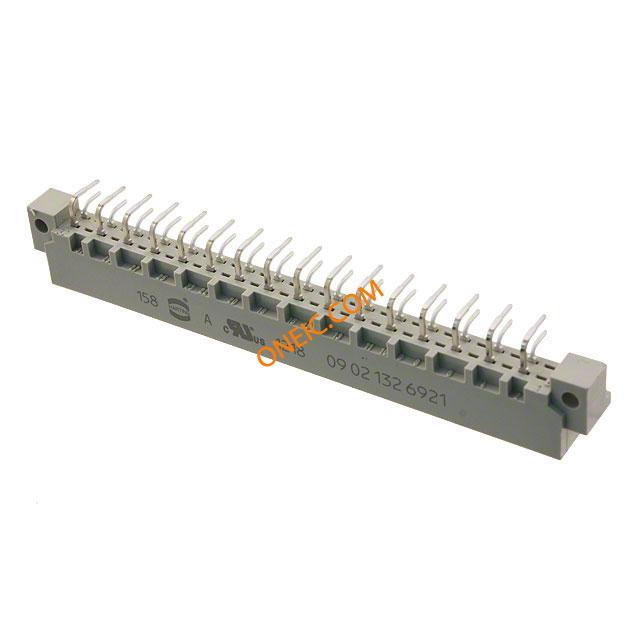

09021326921
| Manufacturer | |
| Description | Conn DIN 41612 M 32 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors DINSIGB032MS-3,0C1-2 CONN MALE 32POS POS MS-3,0C1-2 Socket; DIN 41612,type B; male; PIN:32; THT; angled 90°; 2A |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 02 09 09-02-132-6921 132 6921 | Standard Package | 1 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current Rating (Max) | 2 A | ||
Mechanical
| Depth | 15.5 | Pitch | 0.100" (2.54mm) |
| Height | 8.6 | Weight | 0.01 kg |
| Packaging | Bulk | Orientation | angled 90° |
| Termination | Solder | Lead Spacing | len. 3mm |
| Mounting Type | Right Angle | Connector Type | Header, Male Pins |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Length - Overall | 94 | Package Quantity | 13 |
| Connector - Cable | socket | Termination Style | Solder |
| Number of Contacts | 32 | Number of Positions | 64 |
| Material - Insulation | Thermoplastic, Glass Filled | Contact Material - Plating | gold plated |
| Material - Housing & Prism | thermoplastic | 1st Connector Mounting Feature | a+b every second terminal |
Product Info
| Spg | 13 | Type | DIN 41612 |
| Style | B | Gender | M |
| Product Type | Headers | Number of Units | 1 |
| Number of Positions Loaded | 32 | ||
Environmental
| Level, Class | 2 | Mechanical Life | 400cycles |
| Operating Temperature | -55...125°C | ||
