点击放大查看

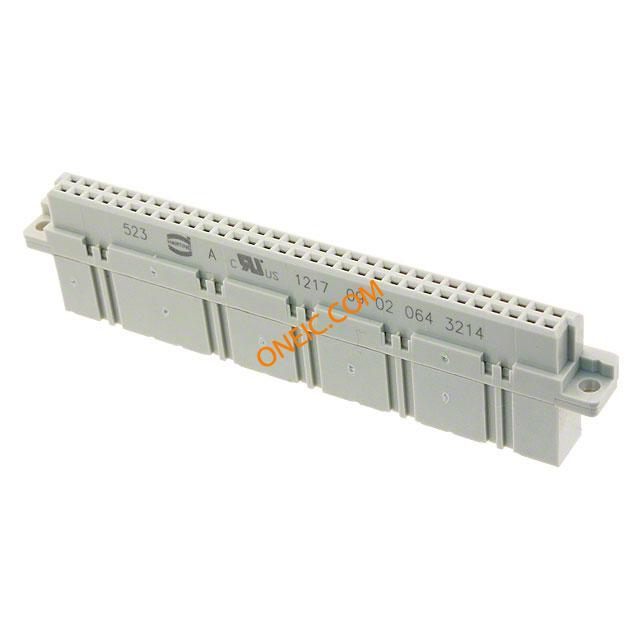

09020643214
| Manufacturer | |
| Description | Conn DIN 41612 F 64 POS 2.54mm Crimp ST Panel Mount DIN 41612 Connectors 64P 2A FEMALE CBLMNT ORDER CONTACTS SEP. CONN FEMALE SHELL HOUSING 64POS Connector;Cable;2;Female;64;CrimpContact Plug; DIN 41612,type B; female; w/o terminals; PIN:64; a+b; 2A |
| Category |
Business
| Part # Aliases | 02 064 09 09-02-064-3214 3214 | Product Category | DIN 41612 Connectors |
| Standard Package | 1 | Factory Pack Quantity | 200 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Current Rating (Max) | 2 A | Connector - Voltage Input | w/o terminals |
Mechanical
| Depth | 22.6 | Pitch | 0.100" (2.54mm) |
| Height | 7.95 | Weight | 0.02 kg |
| Packaging | Bulk | Shell Size | B |
| Termination | Crimp | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Housing for Female Sockets |
| Number of Rows | 2 | Connector Style | DIN 41612, Type B |
| Connector Usage | Receptacle | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 94.8mm |
| Primary Material | Industrial | Connector - Cable | plug |
| Pin Hole Diameter | 2.54mm | Termination Style | Crimp |
| Number of Contacts | 64 | Number of Positions | 64 |
| Mounting Hole Diameter | 2.8mm | Material - Housing & Prism | thermoplastic |
| 1st Connector Mounting Feature | a+b | ||
Product Info
| Note | Contacts Not Provided | Type | DIN 41612 |
| Gender | F | Product Type | Receptacles |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | -55...125°C | ||
