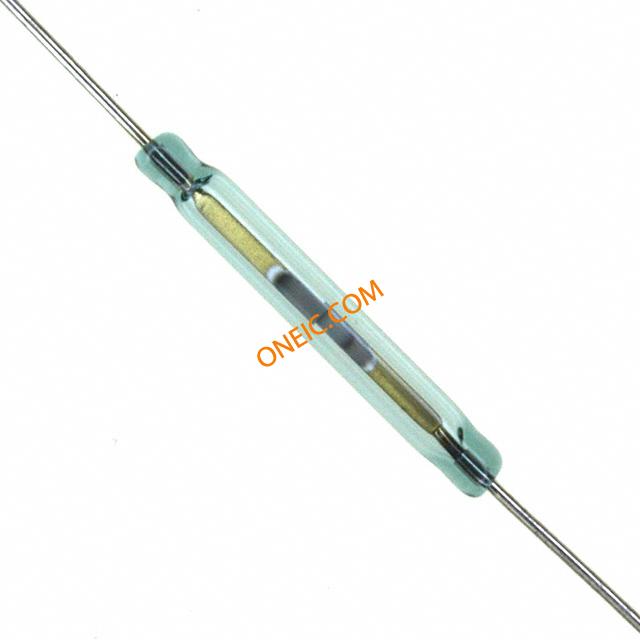

MARR-5 17-23
| Manufacturer | |
| Description | Switch Reed N.O. 0.5A 1000VDC 10VA 0.75ms 100mOhm SW REED SPST .5A 17-23 A/T 1000V Magnetic / Reed Switches |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SPST-NO | Release Time | 0.3 |
| Power - Rated | 10 | Voltage Rating | 1000 |
| Current - Carry | 1.3 | Switching Voltage | 1000V |
| Contact Resistance | 100 | Current - Switching | 500mA |
| Current Rating (Max) | 0.5 | Switch Function/Rating | N.O. |
| Power - Average Forward | 10W | Contact Rating @ Voltage | 0.5 A |
Mechanical

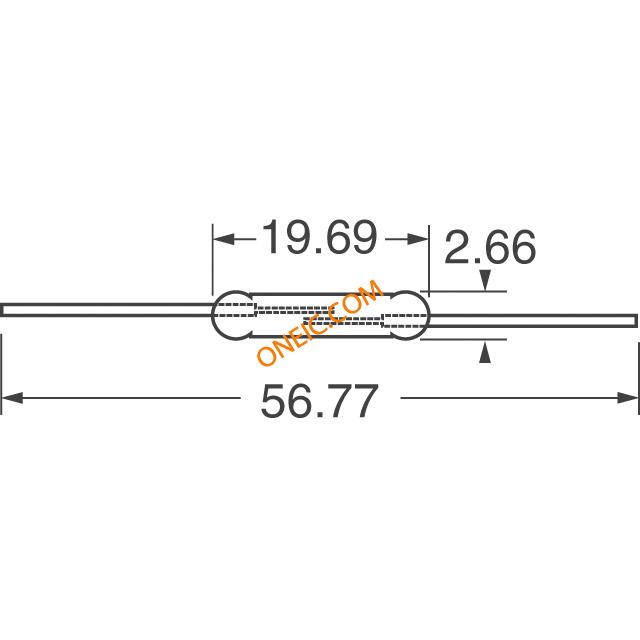

| Length | 19.69 | Diameter | 2.66 |
| Packaging | Bulk | Contact Form | Form A |
| Mounting Type | Through Hole | Terminal Type | Axial |
| Contact Position | Normally Open | Length - Overall | 56.77 |
| Material - Magnet | Not Specified | Termination Style | Axial (2 Leads) |
Product Info
| Type | Glass Body | Switch Type | Miniature Normally Open Switch |
Environmental
| Must Operate | 17 ~ 23AT | Operate Range | 17 AT to 23 AT |
| Operating Temperature | 125 | ||
