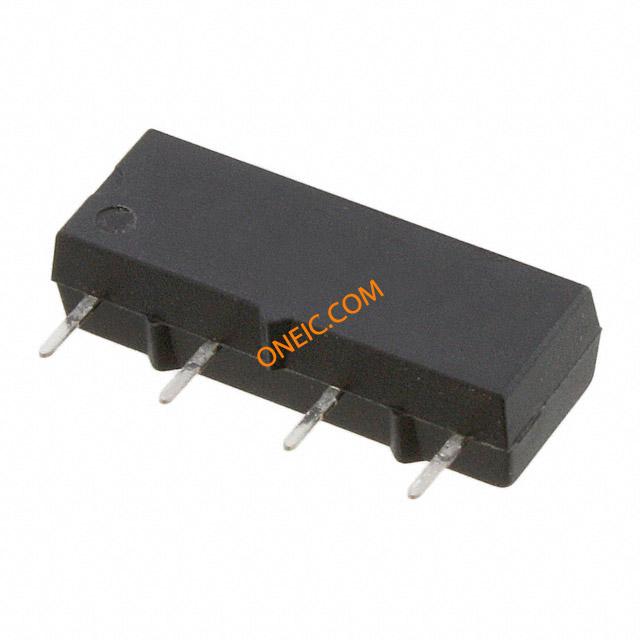

HE3671A0500
| Manufacturer | |
| Description | Reed Relays SPST-NO 0.5A 5VDC 500Ohm Thru-Hole RELAY REED SPST 500MA 5V Reed Relay • Coil Voltage: 5 VDC • Contact Configuration: 1A SPST-NO • Mounting: PC Board • Switching Current: 0.5 Amps • Switching Voltage: 200 VDC |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Other Names | HE593 |
| Subcategory | Reed Relays | Standard Package | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency Marking | cULus | ||
Electrical
| Coil Type | Non Latching | Isolation | 1.5KVAC(Min) |
| Coil Current | 10mA | Release Time | 1ms |
| Visible Output | No | Coil Resistance | 500 Ohms |
| Current - Carry | 0.8 AMP | Pushing (MHz/V) | No |
| Voltage - Supply | 5VDC | Switching Voltage | 200VDC - Max |
| Contact Resistance | 0.100 ohm | Power - Peak Pulse | 10W |
| Vgs(th) (Max) @ Id | 0.5 VDC | Voltage - Clamping | 3.75VDC |
| Current - Switching | 0.5 Amps | Diode Configuration | No |
| Voltage - Breakover | 250 VDC | Voltage - Isolation | 1500 VAC |
| Battery Pack Voltage | 1500 VAC | Current Rating (Max) | 0.5 |
| Insulation Resistance | 10^11 ohm | Voltage - Input (Min) | 0.5VDC |
| Voltage - Switching DC | 200 | Vce(on) (Max) @ Vge, Ic | 3.75 VDC |
| Contact Rating (Current) | 500mA | ||
Mechanical
| Seal | Hermetic Seal | Depth | 5.08 |
| Height | 7.62 | Packaging | Tube |
| Contact Form | 1 Form A | Mounting Type | Through Hole |
| Terminal Type | PC Pin | Package Cooled | SIP |
| Length - Overall | 19.05 | Termination Style | PC Pin |
| Number of Contacts | 4 | Contact Layout, Typical | SPST-NO |
| Supplier Device Package | S.I.L Relay | ||
Product Info
| Type | Dry | Model | Data Switching |
| Relay Type | Non-Latching | Card Standard | Reed Relay |
| Application Specifics | No Options | ||
Environmental
| Operate Time | 1ms | Mechanical Life | 20 G @ 10-2000 Hz. |
| Shock Resistance | 50 @ 11 ms, 1/2 sine | Operating Temperature | -40°C ~ 85°C |
