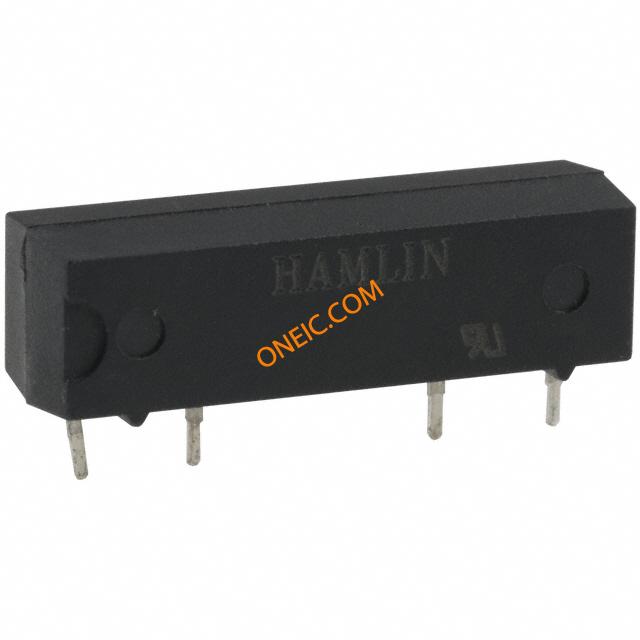

HE3351A2400
| Manufacturer | |
| Description | Reed Relays SPST-NO 1A 24VDC 2KOhm Thru-Hole RELAY REED SPST 1A 24V Reed Relays Relays Reed Relay Coil Voltage: 24 VDC Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 1.0 Amps Switching Voltage: 300 VDC |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 70 Days | Other Names | HE129 |
| Subcategory | Reed Relays | Standard Package | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency Marking | cULus | ||
Electrical
| Coil Type | Non Latching | Isolation | 450VDC(Min) |
| Coil Current | 12mA | Release Time | 1ms |
| Power - Output | 10 W | Visible Output | No |
| Coil Resistance | 2 kOhms | Current - Carry | 1.5 |
| Pushing (MHz/V) | No | Voltage - Supply | 24VDC |
| Switching Voltage | 300VDC - Max | Contact Resistance | 150 |
| Power - Peak Pulse | 10W | Vgs(th) (Max) @ Id | 2 VDC |
| Voltage - Clamping | 18VDC | Current - Switching | 1.0 Amps |
| Diode Configuration | No | Current Rating (Max) | 0.5 A |
| Insulation Resistance | 10G(Min) | Voltage - Input (Min) | 2VDC |
| Voltage - Switching DC | 300 | Vce(on) (Max) @ Vge, Ic | 18 VDC |
| Contact Rating (Current) | 1A | ||
Mechanical
| Seal | Hermetic Seal | Depth | 7 |
| Height | 7.4 | Packaging | Bulk |
| Contact Form | 1 Form A | Mounting Type | Through Hole |
| Terminal Type | PC Pin | Package Cooled | SIP |
| Length - Overall | 24.13 | Termination Style | PC Pin |
| Number of Contacts | 4 | Contact Layout, Typical | SPST-NO |
Product Info
| Form | SIP | Type | Dry |
| Relay Type | Non-Latching | Card Standard | Reed Relay |
Environmental
| Operate Time | 1ms | Operating Temperature | -20°C ~ 85°C |
