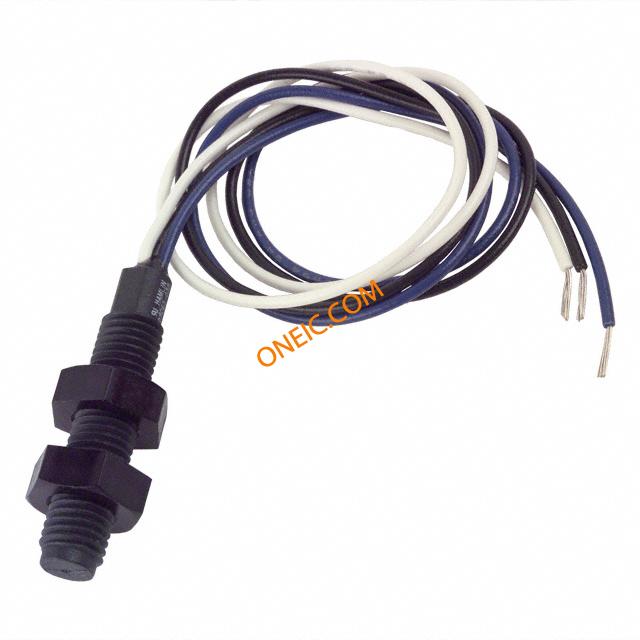

59065-030
| Manufacturer | |
| Description | Proximity Sensor Magnetic 2-Pin SENSOR MAG SPDT-CO 5/16 THD 175V Proximity Sensors PROXIMITY SENSOR Reed Sensor Contact Configuration: 1C SPDT Carry Current: 1.5 Amps Max Switching Voltage: 175 VDC Activate Distance: .236" (6.0mm) Termination: Leads |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 70 Days | Subcategory | Sensor Misc |
| Standard Package | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85365019 | ||
Electrical
| Output Type | SPDT | Sensing Range | :20.32mm |
| Current - Carry | :1.5A | Current - Output | :250mA |
| Contact Rating @ Voltage | :5W | ||
Mechanical
| Weight | 0.005 | Lead Style | Cable |
| Body Material | :Threaded Body Grip | Mounting Type | Panel |
| Mounting Style | :- | Package / Case | Cylinder, Threaded |

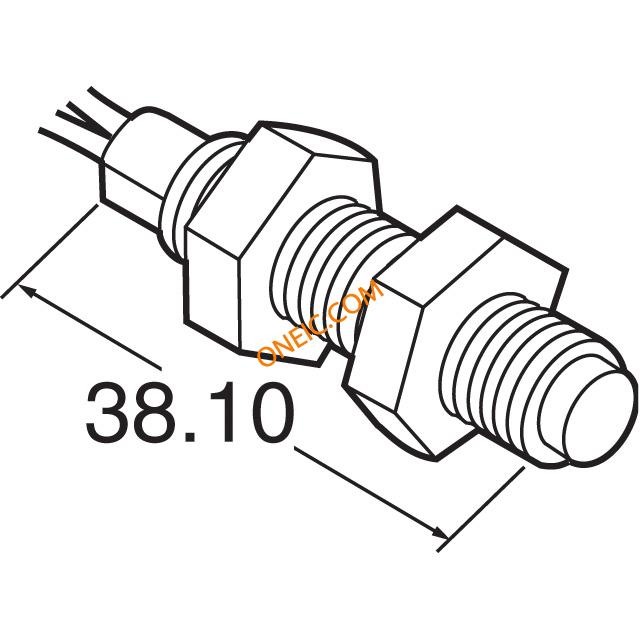

| Length - Overall | 38.1 | Actuator Material | Magnet |
| Termination Style | Wire Leads | Number of Positions | 2 |
Product Info
| Type | Magnetic | Function | Switch |
| Must Release | 20.32mm | Module/Board Type | Module |
| Printed Circuit Board | 2 | ||
Environmental
| Must Operate | 3.81mm | Operating Temperature | :-40°C |
