59065-010
| Manufacturer | |

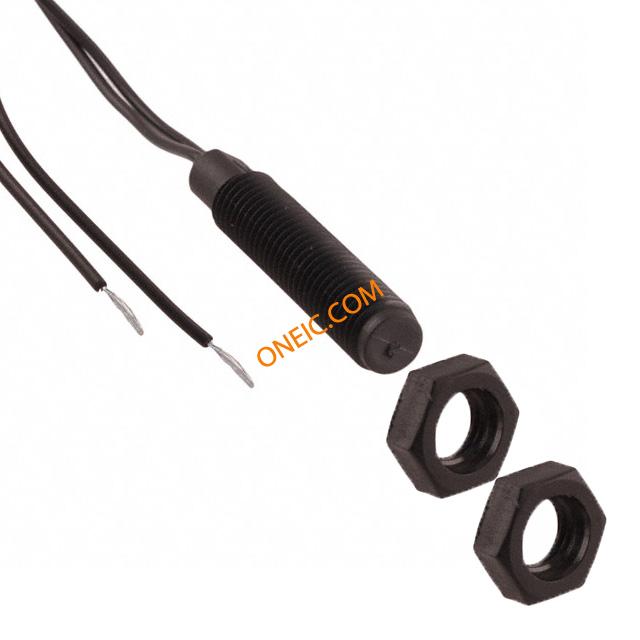

| Description | Proximity Sensor Magnetic 2-Pin SENSOR MAG SPST-NO 5/16 THD 200V Proximity Sensors MAGNETIC SENSOR Reed Sensor Contact Configuration: 1A SPST-NO Carry Current: 1.2 Amps Max Switching Voltage: 200 VDC Activate Distance: .276" (7.0mm) Termination: Leads |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 47 Days | Subcategory | Proximity Sensor |
| Standard Package | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 90318038 | Rad Hardened | No |
Electrical
| Output Type | SPST-NO | Sensor Type | Magnetic |
| Sensing Range | :20.32mm | Current - Carry | :1.2A |
| Current - Output | :500mA | Contact Rating @ Voltage | :10W |
Mechanical
| Weight | 0.002 | Lead Style | Cable |
| Mounting Type | Panel | Mounting Style | :- |
| Package / Case | Cylinder, Threaded | Length - Overall | 38.1 |
| Actuator Material | Magnet | Termination Style | Wire Leads |
| Number of Positions | 2 | ||
Product Info
| Type | Magnetic | Function | Switch |
| Must Release | 20.32mm | Module/Board Type | Module |
| Printed Circuit Board | 2 | Leaded Process Compatible | :Yes |
| For Use With/Related Products | 59065-010(NRC) | ||
Environmental
| Must Operate | 3.81mm | Operating Temperature | -40C to 105C |
